Specifications
agitator flotation machine:1.XJK,SF series;
2.Large inhaling capacity;
3.Capacity:0.05-3.5t/h.
4.New design.
Specifications of agitator flotation machine :
1.XJK,SF flotation machine
2.Large inhaling capacity
3.Capacity:0.05-3.5t/h
4.DiaOf impeller:200-600mm

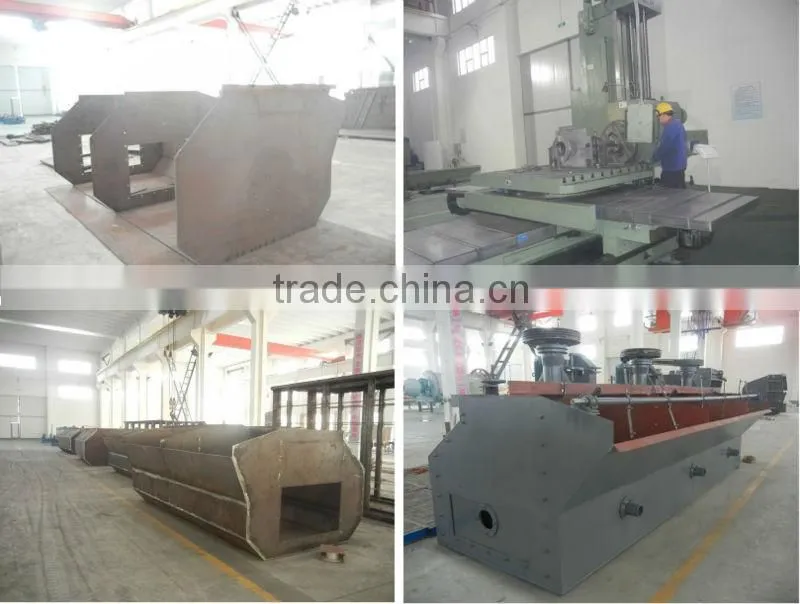

Welding & Assembling Process of agitator flotation machine
Application of agitator flotation machine :

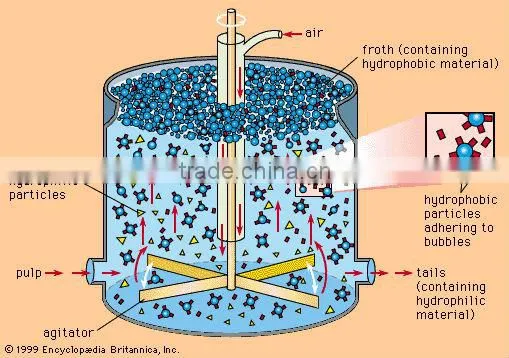

forth flotation machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
agitator flotation machine Parameter:
| Type and specification | Trough volume of the machine | Dia. Of impeller | Production capacity m2/msh | Revolution of the impeller r/min | Scraper revolution r/min |
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 |
| XJK-0.35(3A) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 16 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 |
Model |
Volume(m3) |
Impeller diameter(mm) |
Capacity(m3/min) |
Impeller Speed(r/min) |
Impeller motor |
Scraper motor |
||
Model |
Power(kw) |
Model |
Power(kw) |
|||||
SF0.37 |
0.37 |
300 |
0.2-0.4 |
352 |
Y90L-4 |
1.5 |
Y90S-4 |
1.1 |
SF0.7 |
0.7 |
350 |
0.3-0.9 |
400 |
Y100L2-4 |
3 |
Y90S-4 |
1.1 |
SF1.2 |
1.2 |
450 |
0.6-1.2 |
312 |
Y132M2-6 |
5.5 |
Y90S-4 |
1.1 |
SF2.8 |
2.8 |
550 |
1.5-3.5 |
268 |
Y160L-6 |
11 |
Y90S-4 |
1.1 |
SF4 |
4 |
650 |
0.5-4 |
238 |
Y180L-6 |
15 |
Y90L-4 |
1.5 |

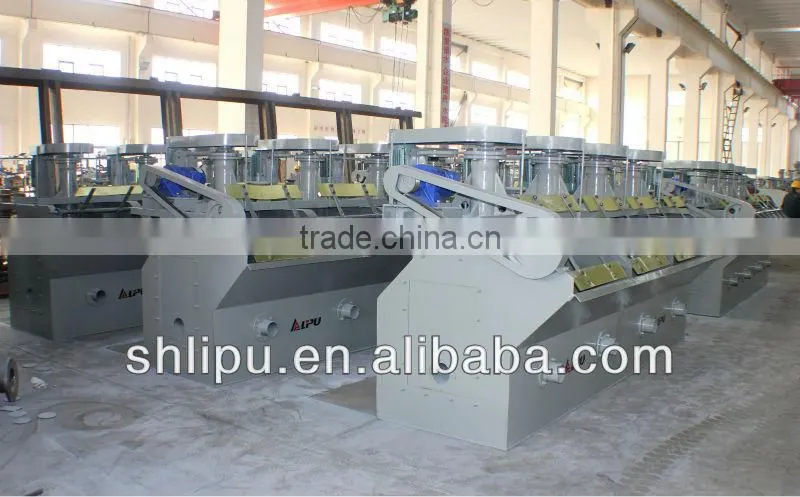

Showroom of agitator flotation machine :

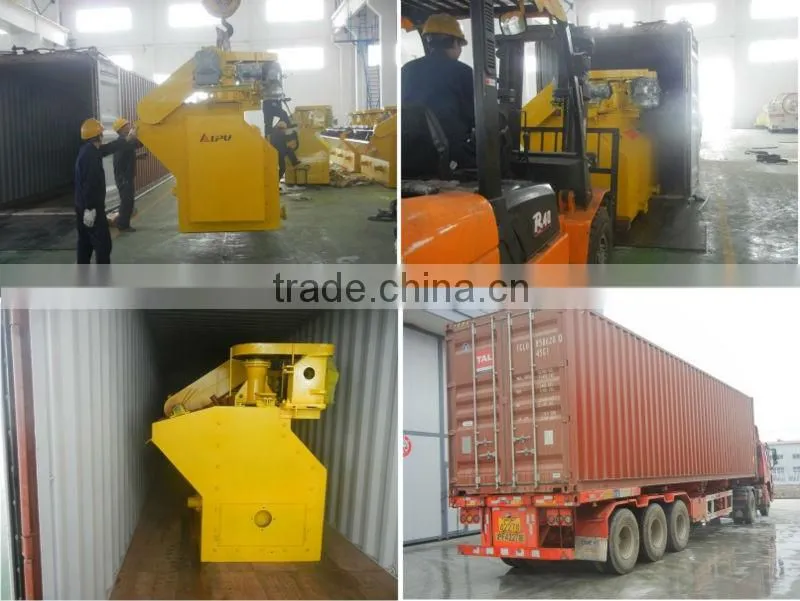

Delivery Site of agitator flotation machine
