Specifications
silica sand vibration screen machines:1.Model:YK series,ISO9001:2000;
2.Application:Mineral,building materials,coal dressing.
Brief Introduction of silica sand vibration screen machines :
silica sand vibration screen machines is main equipment to separate solid materials. It is widely used in mineral, building materials, coal dressing, energy, chemical industry, etc
Working principle of silica sand vibration screen machines :
silica sand vibration screen machines produces vibrating force by vibrating generator, it makes screen body vibrate periodically according to vibrating direction. Materials are separated into various sizes according to different requests, and transported to specified places. Vibrating frequency can be adjusted by adjusting eccentric block.
Features of silica sand vibration screen machines :
1. Eccentric block is vibrating source, so vibrating force is very strong.
2. Two screen bodies apply material with high quality, bolts with high strength and special welding technique, so the screen is durable.
3. Layer quantity depends on customers’ request.
4. High separating efficiency, large capacity, long life, low power consumption and little noise.
5. Two screen bodies apply tensioning technique to fasten screen, and simple structure makes it easy to change screen.
Product parameter of silica sand vibration screen machines :
High frequency silica sand vibration screen machines manufacturer
| Model | Layer | Vibrating Frequency | Capacity | Power | Overall Dimension | Weight |
| (r/min) | (t/h) | (kW) | L×W×H(mm) | (t) | ||
| 2TK1548 | 2 | 720-875 | 140-650 | 22 | 5560×2950×1450 | 6.7 |
| 3TK1548 | 3 | 720-875 | 140-650 | 22 | 5560×2950×1860 | 7.5 |
| 4TK1548 | 4 | 720-875 | 140-650 | 30 | 5560×2950×2280 | 8.3 |
| 2TK1848 | 2 | 720-875 | 180-700 | 22 | 5560×3250×1450 | 7.5 |
| 3TK1848 | 3 | 720-875 | 180-700 | 30 | 5560×3250×1860 | 8.6 |
| 4TK1848 | 4 | 720-875 | 180-700 | 30 | 5560×3250×2280 | 9.7 |
| 2TK1860 | 2 | 720-875 | 250-850 | 30 | 6760×3250×1450 | 8.2 |
| 3TK1860 | 3 | 720-875 | 250-850 | 30 | 6760×3250×1860 | 9.9 |
| 4TK1860 | 4 | 720-875 | 250-850 | 37 | 6760×3250×2280 | 11.6 |
| 2TK2160 | 2 | 720-875 | 300-1000 | 37 | 6760×3550×1450 | 10.5 |
| 3TK2160 | 3 | 720-875 | 300-1000 | 37 | 6760×3550×1860 | 12.4 |
| 4TK2160 | 4 | 720-875 | 300-1000 | 45 | 6760×3550×2280 | 14.3 |
| 2TK2460 | 2 | 720-875 | 350-1200 | 37 | 6760×3850×1450 | 12.5 |
| 3TK2460 | 3 | 720-875 | 350-1200 | 45 | 6760×3850×1860 | 14.7 |
| 4TK2460 | 4 | 720-875 | 350-1200 | 45 | 6760×3850×2280 | 16.9 |
Any change of technical parameters, there is no further notice.

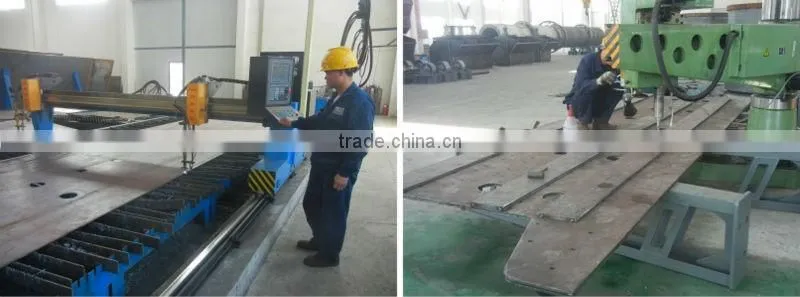

Forging cutting of silica sand vibration screen machines

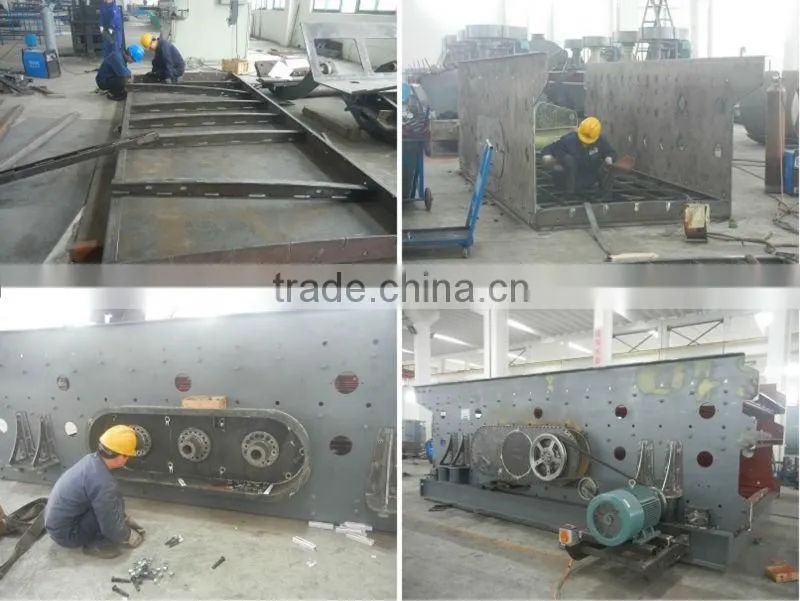

Welding&Assembling of silica sand vibration screen machines

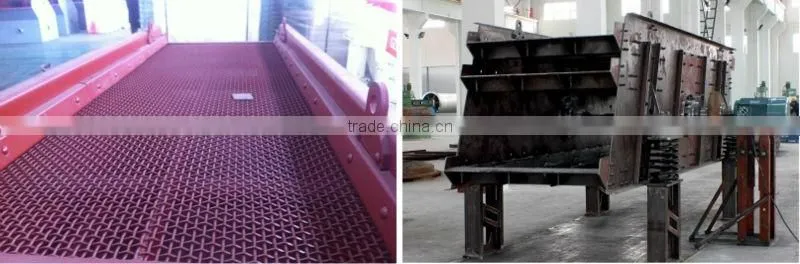

Structure of silica sand vibration screen machines
