Specifications
fluorite ore flotation machine:1.XJK,SF series;
2.Large inhaling capacity;
3.Capacity:0.05-3.5t/h.
4.New design.
Specifications of fluorite ore flotation machine :
1.XJK,SF flotation machine
2.Large inhaling capacity
3.Capacity:0.05-3.5t/h
4.DiaOf impeller:200-600mm
Welding & Assembling Process of fluorite ore flotation machine
Application of fluorite ore flotation machine :
forth flotation machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
fluorite ore flotation machine Parameter:
| Type and specification | Trough volume of the machine | Dia. Of impeller | Production capacity m2/msh | Revolution of the impeller r/min | Scraper revolution r/min |
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 |
| XJK-0.35(3A) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 16 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 |
Model |
Volume(m3) |
Impeller diameter(mm) |
Capacity(m3/min) |
Impeller Speed(r/min) |
Impeller motor |
Scraper motor |
||
Model |
Power(kw) |
Model |
Power(kw) |
|||||
SF0.37 |
0.37 |
300 |
0.2-0.4 |
352 |
Y90L-4 |
1.5 |
Y90S-4 |
1.1 |
SF0.7 |
0.7 |
350 |
0.3-0.9 |
400 |
Y100L2-4 |
3 |
Y90S-4 |
1.1 |
SF1.2 |
1.2 |
450 |
0.6-1.2 |
312 |
Y132M2-6 |
5.5 |
Y90S-4 |
1.1 |
SF2.8 |
2.8 |
550 |
1.5-3.5 |
268 |
Y160L-6 |
11 |
Y90S-4 |
1.1 |
SF4 |
4 |
650 |
0.5-4 |
238 |
Y180L-6 |
15 |
Y90L-4 |
1.5 |

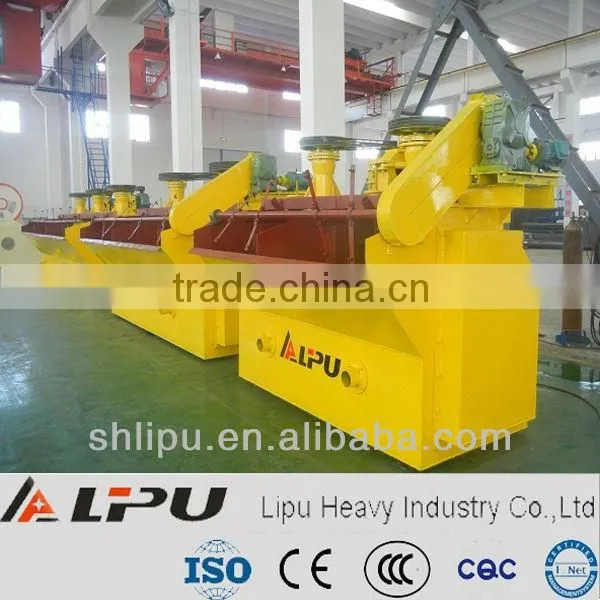

Showroom of fluorite ore flotation machine :
Delivery Site of fluorite ore flotation machine
