Coal Pulverizer Grinding Mill

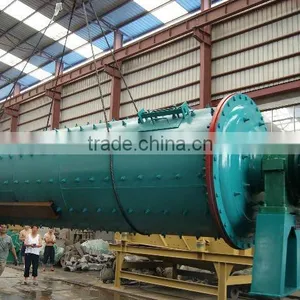

Coal Pulverizer Grinding Mill thumbnail-1
Coal Pulverizer Grinding Mill photo-1
US$ 1,500 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Capacity(t/h):
0.4-60
Contact Supplier Request Quote Chat Now
Shanghai Lipu Heavy Industry Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai qingdao dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Capacity(t/h) 0.4-60
Place of Origin Shanghai, China
Brand Name LIPU
Model Number various
Certification CE,ISO9001:2000
Warranty 1 year

Specifications

Coal Pulverizer Grinding Mill
1.ISO9001:2000,CE;
2.Input size:15-25mm;
3.Output size:0.047-0.089mm;
4.Big capacity

Coal Pulverizer Grinding Mill

1.ISO9001:2000,CE;
2.Input size:15-25mm;
3.Output size:0.047-0.089mm;
4.Big capacity,continuous working;



Application of Coal Pulverizer Grinding Mill

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grindable materials.



Working principle of Coal Pulverizer Grinding Mill

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.





The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.



Features of Coal Pulverizer Grinding Mill

1. Wide usage, simple structure, convenient maintenance;

2. Big capacity, continuous working;

3. Body liners and grinding medium could be made of various of materials, good corrosion resistance;

4. Easy installation, adjustment, and operation

Model

input size(mm)

Output size(mm)

Weight of ball(t)

Speed of bucket(r/min)

Power(kw)

Capacity(t/h)

Weight(kg)

900*1800

15

0.075-0.89

1.9

37

15

0.5-2

3400

900*2100

15

0.075-0.4

2.3

37

18.5

0.4-2

3900

900*3000

25

0.075-0.4

3.85

35

30

1.1-2.5

7780

1200*2400

25

0.075-0.4

4.6

35

30

1.3-3.2

8650

1200*2800

25

0.075-0.4

5.4

35

37

1.5-3.7

10020

1200*4500

25

0.075-0.4

8.6

35

45

2.7-6.79

14000

1500*3000

25

0.047-0.4

9

29

75

3.3-8.2

14122

1500*3500

25

0.047-0.4

10.5

29

75

3.3-8.5

15636

1500*4500

25

0.047-0.4

13.5

29

90

4.5-12

20000

1500*5700

25

0.047-0.4

17

29

110

2.6-14

25000

1830*3000

25

0.047-0.4

13.5

24

135

4-15

28000

1830*4500

25

0.047-0.4

20

24

155

4-19

32000

1830*7000

25

0.047-0.4

31.5

24

210

6-22

37500

2100*3000

25

0.047-0.4

18

22

210

6.4-28

40790

2100*4000

25

0.047-0.4

21.5

22

210

7.6-28

43454

2200*3600

25

0.047-0.4

25

21.7

245

5.2-32

44000

2200*7000

25

0.047-0.4

46

21.7

380

15-38

54000

2400*3600

25

0.047-0.4

28

21

320

8-60

47000

2400*4500

25

0.047-0.4

35

21

380

8.5-60

65000
