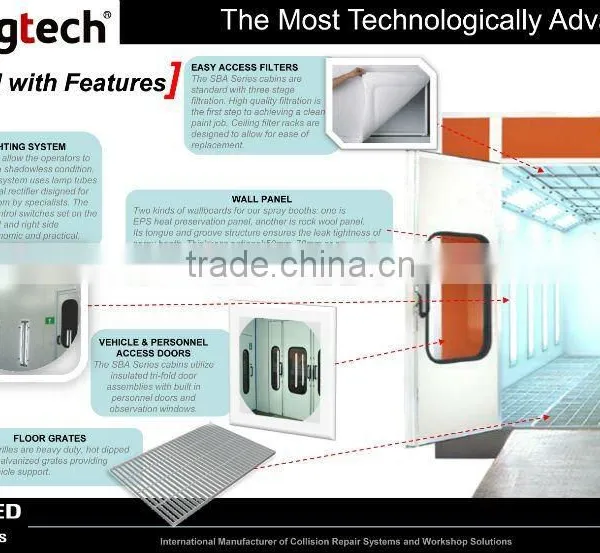

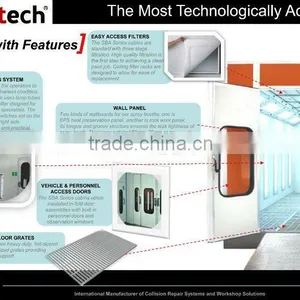

Spray booth
Main parts of our spray booth are imported. Such as the burner, filter, tempreture control units, light tubes.etc.
Our spray booth is CE certificated. The top quality could be guarateed.
We can produce according to your specific requiments. such as double twins booths, industrial spray booth, water solubility paint booth and so on.
Each part we have noted install number to ensure the installation easy and quick.
Body Inner Dimensions: 6900*3900*2700(mm)
Air Quantity of Air Intake Machine: 20000(m3/h)
Full Load Room Wind Speed: 0.3 ~ 0.45m/s
Highest Working Temperature: 80°C
Temperature Rise Time: 6 ~ 8min
Oil Consumption of The Burner: 5 ~ 7Kg/set
Heat Exchange Efficiency: 85%
Illuminance LUX: ≥800
Air Filtering Efficiency: ≥98%

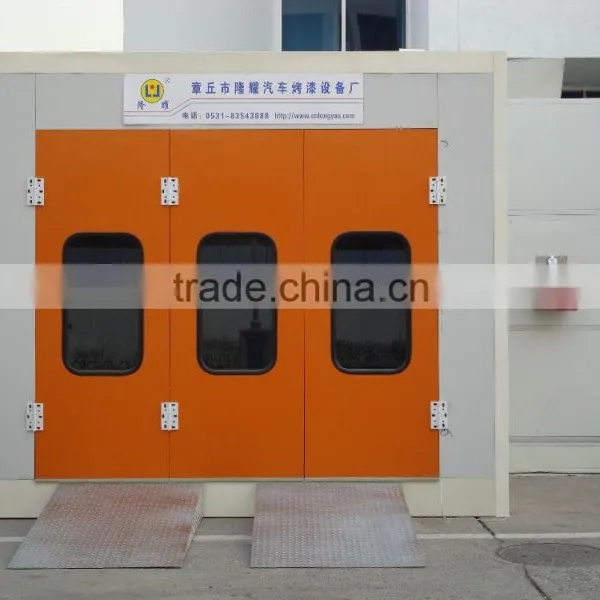

Main door: 3-fold 3000x2650mm(WXH) Personal door: 1-fold 650x1800MM(WXH)
Wall pannel:Insulated EPS panel, double skinned,tongue and groove interlock construction, thickness: 50MM, roof panel: galvanized plate

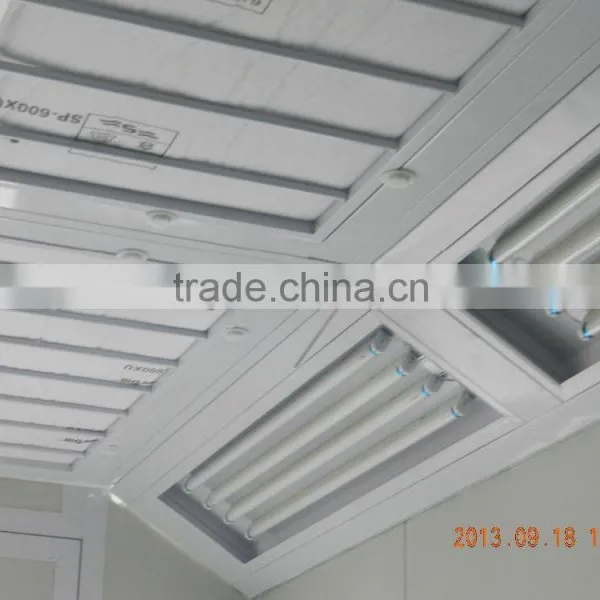

Lighting: Upper inclined lights: 32PcsX36W:Lower lights: 16PcsX30W; Vertical installation, illumination: 800Lux
Generator setting: Side upper intake air, quadrate steel frame, blue coated steel.
Intake fan: 1-set double-intake centrifugal fan, 4KW, air capacity: 12000m3/h.
Heating system:Riello G20 oil burner, heat productivity: 200000Kcal/h, Stainless steel heat exchanger, with explosion-proof hole. highest temperature 80C, 1 electric damper execute from spraying to baking cycle
Filter system:Pre-filter, high efficiency filter(ceiling filter), floor filter, extract activated carbon filter
Control system:Spraying, heated spraying, baking temperature setting, time setting, emergency stop, limited-temperature device, power switch
- SBA200 is an advanced type of spray booth which aborbing several techincal advantages from domestic and abroad.Excellent design and perfect technology make our spray booth more suitable to the market's requirements.
- We can produce OEM according to your different specific requirements.By,the way ,welcome to visit our webstie .
