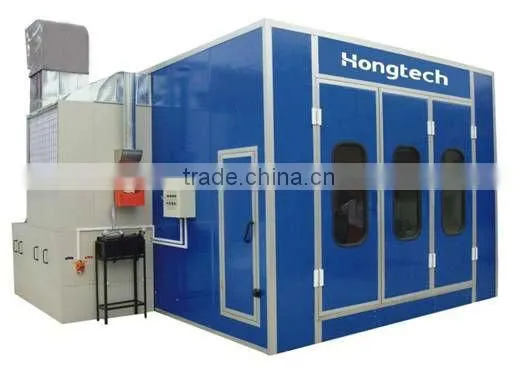

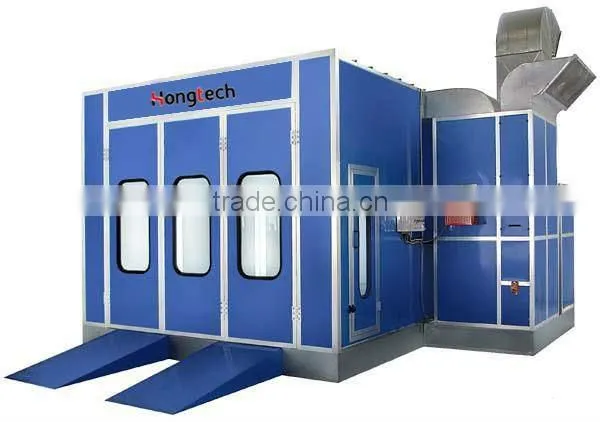

Economic car spray painting booth
SBA 200 spray booth absorbing several technical advantages from domestic and abroad. Excellent design and perfect technology make our spray booth more suitable to the market's requirements. Equipped many imported parts, like the Italy Riello burner, Philips lights, etc.
CE certification guarantees great performance, high economical efficiency.
Specification
Inside Dimension |
6900×3900×2700 mm(L×W×H) |
Outside Dimension |
7000×5350×3400 mm(L×W×H) |
Main door |
3-folds, 3000×2650mm(W×H), with heat insulation glass window |
Personal door |
1fold, 800×2000mm(W×H), with pressure lock |
Wall panel |
EPS heat preservation panel, thickness: 50mm, width: 1150mm |
Basement and floor |
Adjustable height bolt and complete steel, 3pcs of ramps, 900X2000MM(WXL) one step |
Lighting |
Ceiling light: 4Pcs X8units=32PcsX36W, Lower light: 4Pcs X8units=32PCsX20W Philip tube, horizontal installation, with electronic ballasts, lighting box made of cold roll steel plate, white powder coating |
Glass |
All windows and light cover by ovenproof toughened glass |
Generator setting type |
Intake air from side upper and exhaust air from back upper, framed with aluminum alloy, white coated steel plate |
Intake fan |
2Pcs 4Kw double-intake centrifugal fans, model:YDW4.5L, air capacity :25000m3 /h. |
Exhaust fan |
1Pc 5.5Kw double-intake fans exhaust air cabinet , model:YDW4.5S, air capacity is15000 m3/h |
Heating system |
Riello G20 diesel burner,260000Kcal, Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc electric damper from spraying to baking cycle |
Filter system |
Prefilter, high efficiency filter(ceiling filter), floor filter, exhaust exhaust active carbon filter |
Control system |
Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device |
Total power |
16KW |
