H-Beam Cutter Flame Cutting Machine

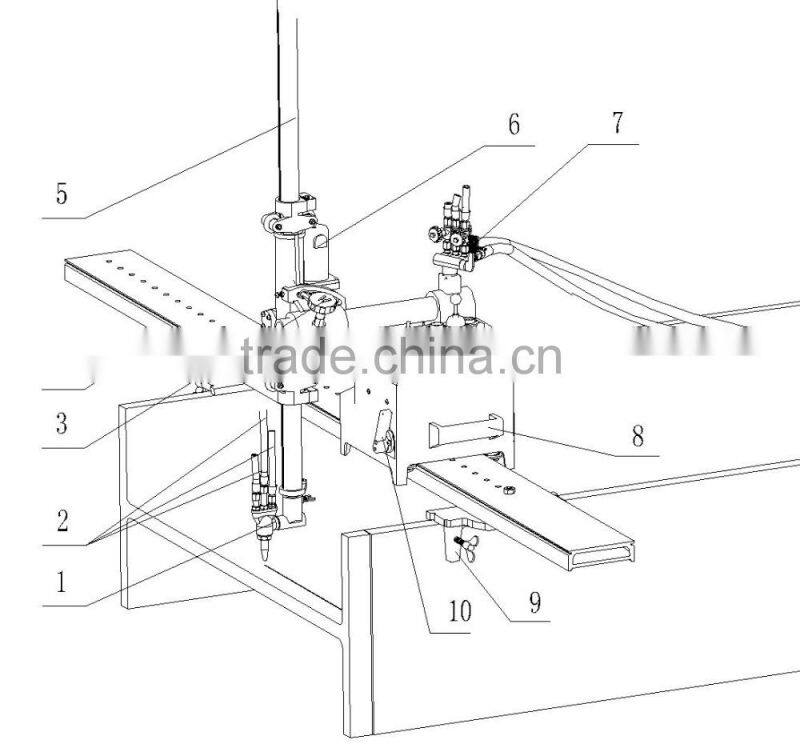

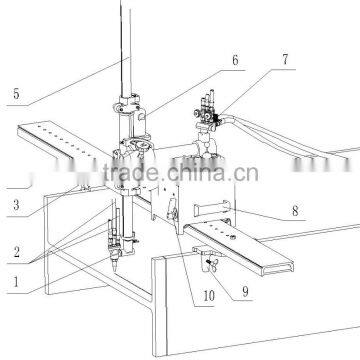

1 .Torch |
7. Quick distributor: Flame is adjusted only once and not adjusted again |
2. Gas hose: connected between torch and gas distributor to deliver gas |
8. Handle: It is to move machine |
3.Adjusting pilot wheel for transverse: It is to control torch transverse movement |
9.Track pressure plate: Locate machine on the H structural section |
4.Track |
10.Clutch knob: Pulling knob on the left side is off, pulling knob on the right side is on
|
5.Vertical moving bar | |
6.Reduce speed motor of web plate cutting equipment |
1.Weight (body) |
:21.5kilograms |
Accessory(track sections) |
:15.5 kilograms |
2.Machine dimension |
:400mm×340mm×440mm(Body); : 270mm×220mm×2200mm(Track) |
3.Speed control |
:SCR control |
4.Power source |
: AC 220V±10% |
5.Cutting speed |
:50~750mm/min |
6.Cutting thickness |
:5-50mm |
7.Bevel angle |
:0~30°( wing plate; web plate) |
8.Maximum fly past of web plate cutting |
:A=1600mm |
9.Maximum fly past of wing plate cutting |
: B=800mm |
10.Maximum angle of wing plate slanting cutting |
:30°(maximum height of slanting cutting 690mm) |
11.Maximum angle of web plate slanting cutting |
:35°(maximum length of slanting cutting 1300mm |
12.Tip |
:G02(for acetylene) or G03(for propane) |
13.Motor |
: 1) web plate motor 110V 50HZ 30W Rotational speed,3600 rpm : 2) wing plate motor 110V 50HZ 40W Rotational speed,2200 rpm |
After quality testing,our products will be well packed.
1 First wrapped by plastic film
2 Then fixed by EPE foam
3 Carton box outside
Body |
1set |
Standard torch and sections |
1set |
Wing plate mechanism |
1 |
Tip(G02 or G03) |
3pcs |
Track(include track pressure plate) |
1 |
Inlet gas joint |
1 |
Spanner |
1 |
Specification sheets and certificate of qualification |
1 |
Power cable |
1 |
M5 inner hexagon spanner |
1 |
Phillips screwdriver |
1 |
Needle |
1 |
Shipping :
1,We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
2,Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
