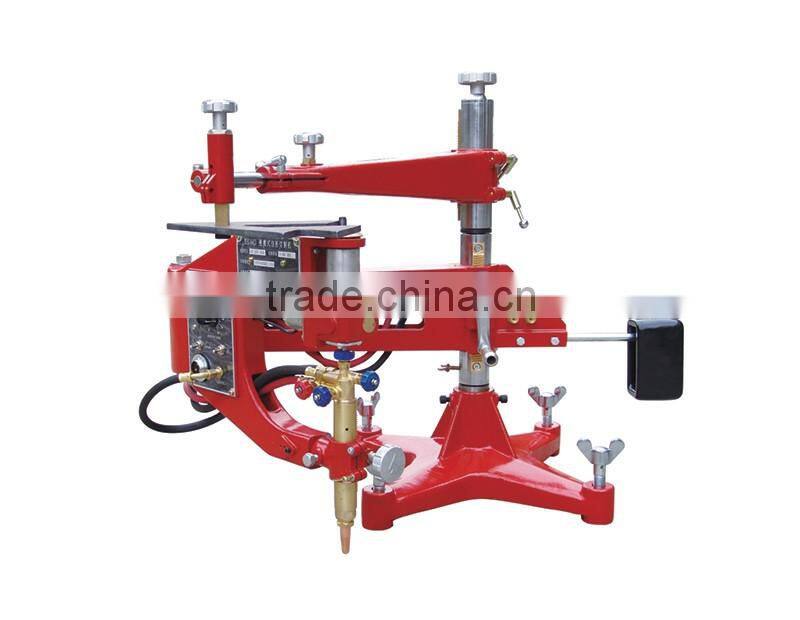

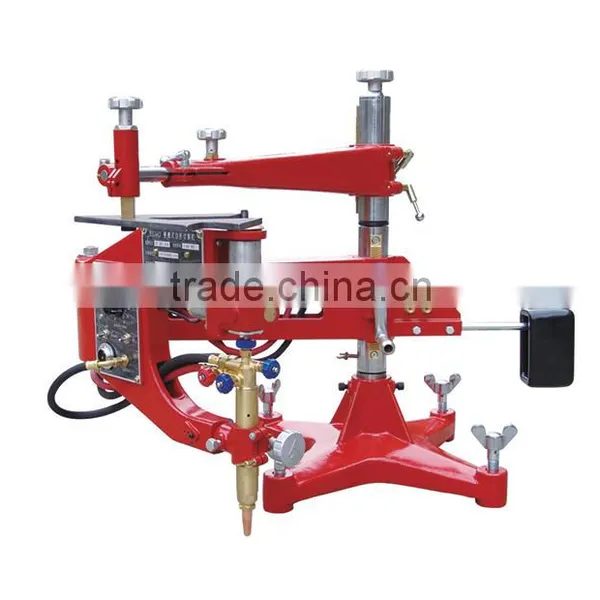

HK-54D Profiling Cutting Machine
1.Solid structure, high cutting accuracy, easy to operate
2.High profile, and capable of working continuously, strong magnetic wheel can accurately track various shapes
3.The integrated design of machine operation and cutting linkage, open the pressure switch, open magnetic wheel cutting oxygen, start walking
4.Suitable for mass production of the same shape of the parts
5.Widely used in shipbuilding, petroleum, chemical industry, metal steel structure and other industries

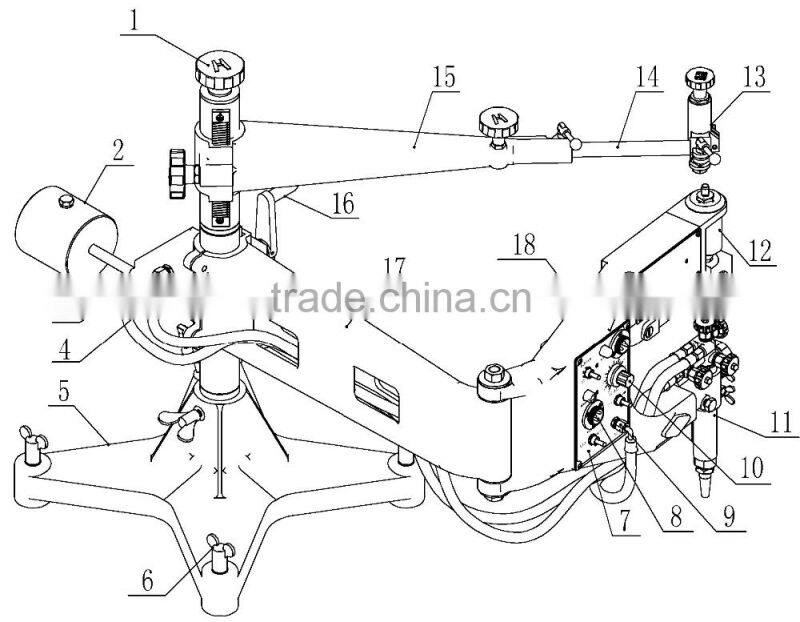

1..Lift wheel of arm :Release the screw of arm and adjust the wheel to make the arm unit assembly rise or fall |
10. Speed regulating knob:Increase the speed if you revolve it along “0” to “10”. |
2.heavy |
11. Torch
|
3.oxygen inlet |
12.magnetic assembly |
4.gas inlet |
13. Frame of sample plate: To fix the sample plate and adjust the height of sample plate. |
5. base |
14.cross rack |
6. Screw at the bottom: Make the machine horizontal on steel plate. |
15.arm |
| 7.control panel | 16.lifting handle of boom |
| 8. Outlet | 17.boom |
ure switch |
18.wishbone |
1.Weight(Body) |
:45 KG |
2. Machine dimension |
:1200 × 420 ×700 mm |
3. Power source |
:220V 50/60HZ |
5. Cutting speed |
: 100~1000mm/min |
6. Cutting thickness |
: 3~100mm |
7.The diameter of cutting circle. |
: ø30~ø700mm |
8.Diameter of standard magnetic roller |
:10mm |
9.Square size of cutting |
:30mm×600mm, |
10. Motor |
: 55/ZYT DC110V24W 3600r/min |
Packing:
After quality testing,our products will be well packed.
1 First wrapped by plastic film
2 Then fixed by EPE foam
3 Carton box outside
1. Main body |
1set |
|
2. Standard torch unit assemblage |
1set |
|
3. Tip |
1)G02 |
3 pcs each |
2)G03 | ||
4.Power wire |
1pc |
|
5. Specification sheets and certificate of qualification |
1 pc each |
|
6. Gas-in connector |
1set |
|
Standard accessory | ||
1. Heavy punch |
1set |
|
2. Sample plate of circle |
1set |
|
3. balance bar |
1pc |
|
Shipping :
1,We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
2,Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
About us:
Nanning ChuanJun Welding Hardware Co., Ltd.founded in 2004,has been focused on welding equipment and accessory for more than 10 years. ChuanJun is member of the China Welding Association. Providing system services for enterprises needed.Our company mainly produce welding equipment, hardware and electrical equipment, building decoration materials, welding equipment leasing, and so on.
Our products below:
Welding machines: mma, mig, tig welders
Cutting machines: air plasma cutter, flame cutting machine, and CNC cutters.
Welding & cutting accessories: welding torch, cutting torch, cutting nozzle, conductive nozzle, protective cover, diverter, earth cable, gas regulator, pipe, gas bottle, electrode oven, welding rod drying box, welding helmet, protection gloves and glasses.
Welding material: kinds of welding wires and welding rod
Industrial tools: Bosch power tools, beveling machines, other hand tools.
ower tools, beveling machines, other hand tools.
1.You can contact me through our website derectly.
2. Mobile phone:+86 15978151276
3.Skype : Bettymo330
4. WeChat : 2639219769
