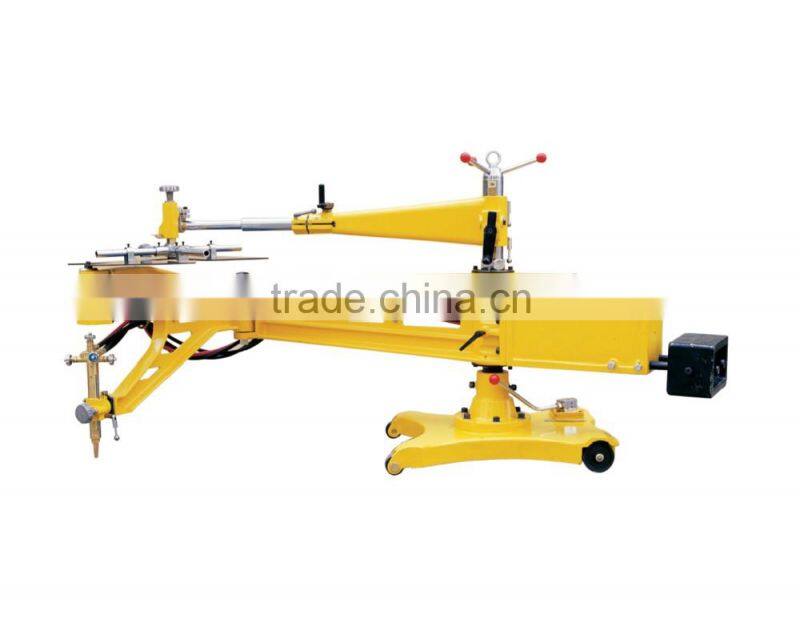

Stable Portable Flame Shifting Profile Gas Cutting Machine
1.The machine has advantages of common copying cutter and is used in all fields.
2.Solid structure, high cutting precision, easy to operate, less auxiliary work.
3.Can move forward and backward.

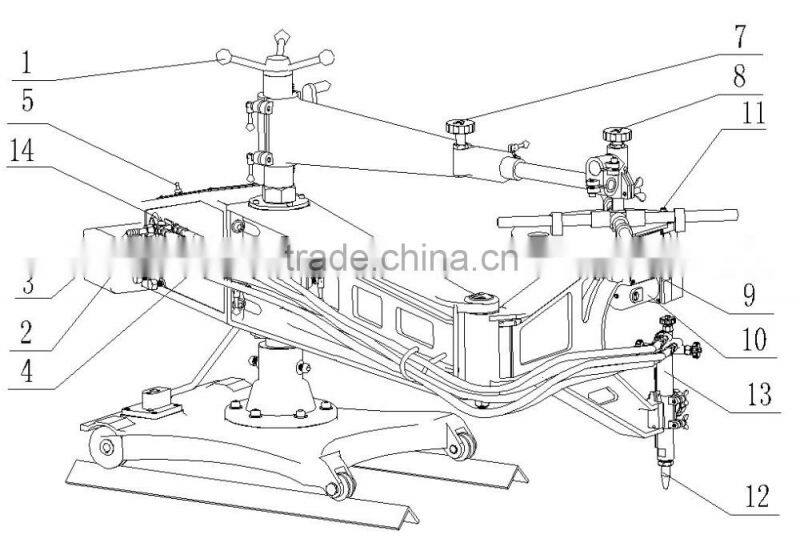

1. Shape arm locking handle: After releasing handle, shape arm can rotate 360 degree direction. |
7.Traversing Hand wheel: Adjust horizontal distance of model plate |
2.Gas admitting pipe |
8.Adjusting hand wheel: Adjust model plate frame vertical distance
|
3.Oxygen admitting pipe |
9.Motor normal-reverse switch |
4. Pressure switch admitting pipe: Pressure switch and cutting oxygen valve are controlled in interlocking way. |
10.DC motor |
5. Power switch: The switch is off before open power. |
11.Magnetic head |
6. Speed control knob: Rotating the knob can make machine move quickly along “10” direction and move slowly along :0”direction. |
12.Tip |
13.Torch and related parts | |
14.Power socket |
1. Weight (body) |
114 kilograms |
Accessory |
16 kilograms |
2. Machine dimension |
1300×480×800 mm |
3.Standard diameter of magnetic roller wheel |
diameter is 10 mm |
4.Power |
AC 220V±10% |
5. Speed control |
SCR control |
6.Cutting speed |
50-750 mm/min |
7. Cutting thickness |
8 mm-100 mm(standard accessory) |
8. Motor |
DC 110 V 3600 r/min |
9.Length of cutting line |
2500 mm |
10.Size of cutting maximum circle |
2700 mm |
11.Size of cutting maximum square |
1900X1900 mm |
Packing:
After quality testing,our products will be well packed.
1 First wrapped by plastic film
2 Then fixed by EPE foam
3 Carton box outside
standard package | |
1) Body |
1set |
2) Torch |
1set |
3) Balance-weight |
1set |
4) Tip(G02 or G03) |
3pcs |
5) Balance bar |
2pcs |
6) Gas inlet joint |
1set |
7) Spanner |
1set |
8) Specification sheets and certificate of qualification |
1set |
9) Power cable |
1set |
Shipping :
1,We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
2,Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
