copper ore processing line
Copper Ore Processing Line Brief introduction
The main equipments of copper ore processing line include jaw crusher, vibrating feeder(optional), ball mill, spiral classifier, magnetic separator, flotation machine, thickener, drier and so on.

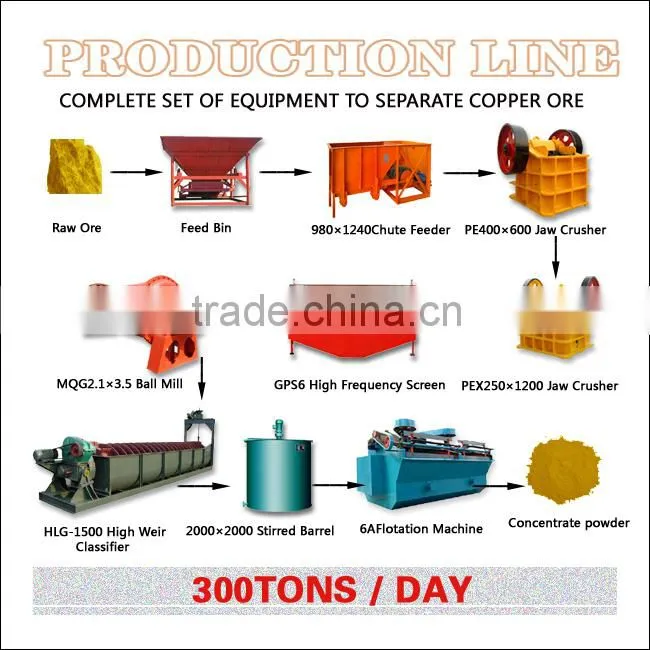

Copper Ore Processing Line Flow
The main process for copper ore processing line can be devided into three steps.
1.Crushing: It’s the basic process, to crush the coarse ore to the proper size for griding.
2.Grinding: To grinding the ore to smaller size to prepare for the flotation and separation process.
3.Flotation: It’s the key process to upgrade the copper ore. Chemical reagent will be added to mixer in this process.
the ore is first sent to the jaw crusher for primary crushing. Then the ore with a proper size will be sent into the ball mill through elevator or conveyor for fine crushing and grinding. The ore powder discharged from the ball mill will be sent to the next procedure: classifying.
Because of the different sedimentation rate due to the varied specific gravity, spiral classifier can clean and group the ore mixture. The cleaned and grouped mixture is sent to magnetic separator, due to the different susceptibility, magnetic substance can be separated from the mixture under magnetic and mechanical force. Then the mixture is sent to flotation machine. According to the features of different ores, we can add different additive into the mixture to separate the ore which we want from the mixture. After the seperation from the mixture, the ore we want always contains a lot of water, then we need a thickner to have it concentrated and then dried by a drier, enventually we can get dry ore. The grade of copper concentrate can reach 45%.
The specific technological process should be according to the copper ores’ own characteristics, the above is only for reference.
300t/d Copper Ore Processing Line Main Equipment List
