G1824 100W RECI tube CNC Laser Machine
Features:
Working area: 1800x2400mm
Power: 100w
Laser tube type: RECI type, 8000-10000 hours life time. Guarantee period is 8 months.
Control mode: USB interface
File export Software: DSP5.3 or Reader
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: step motors and step drivers
Cooling type: chiller cooling
Table type: (engraving and cutting) knife type table.
360 degree slope engrave: Support
RED POINTER function
Application:
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather,
rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting,
building, packaging, paper industry
Technical Parameter:
Laser power : |
100W (optional) |
Laser type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Working area: |
1800mmx2400mm |
Max moving speed: |
1500mm/s |
Worktable: |
Honey comb worktable (mainly engraving and small pieces cutting) /knife (engraving and cutting) /normal table (engraving) (optional) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
DSP5.3 or Reader |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Cooling way: |
Water cooling and protection system |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT, CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-20mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
3250x2050x990(mm) |
Gross weight |
750kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. normal type laser tube (2500 hours life time) 2. Bigger power tubes (130w, 150w etc) 3. double-head or more heads 6. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc. Please note: this big working size table can’t add whole table with auto lifting table, only can add partial, please let us know the size you want to add if needed) 7. irregular rotary clamp 8. Ball screw 9. servo motor 10. Auto focus (usually need auto lifting table) 11. Auto feeding system etc. Note: Above are the main optionals, not all the ncan add above optionals, please contact us, we will give you suggestions, thanks. |

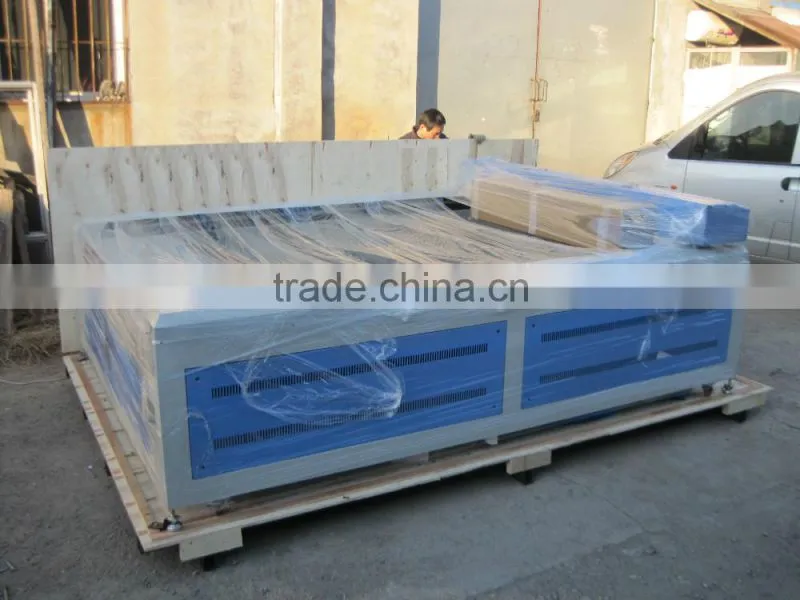

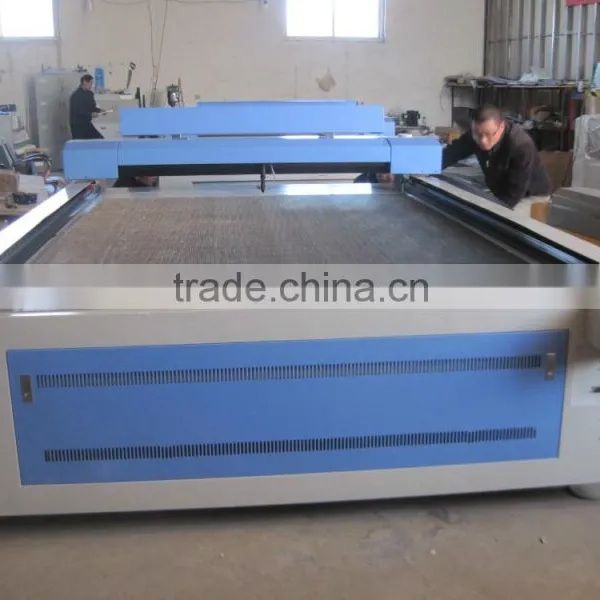

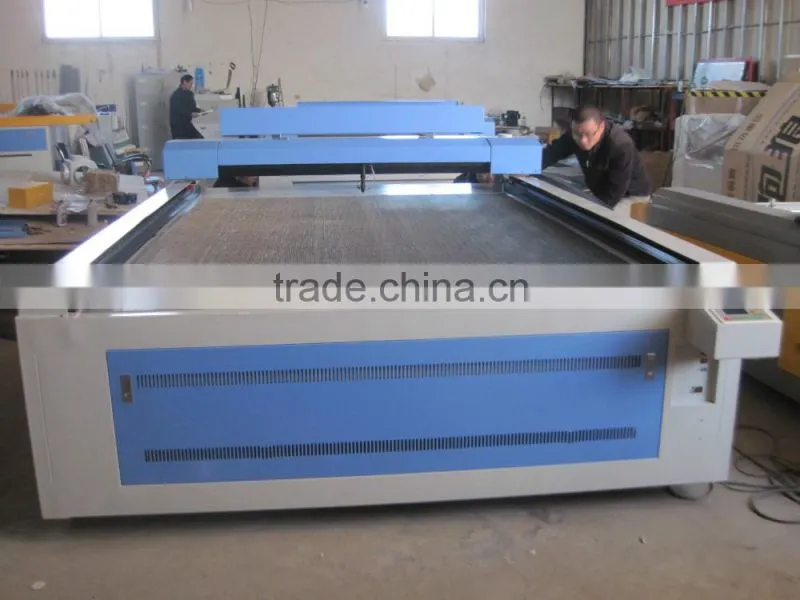

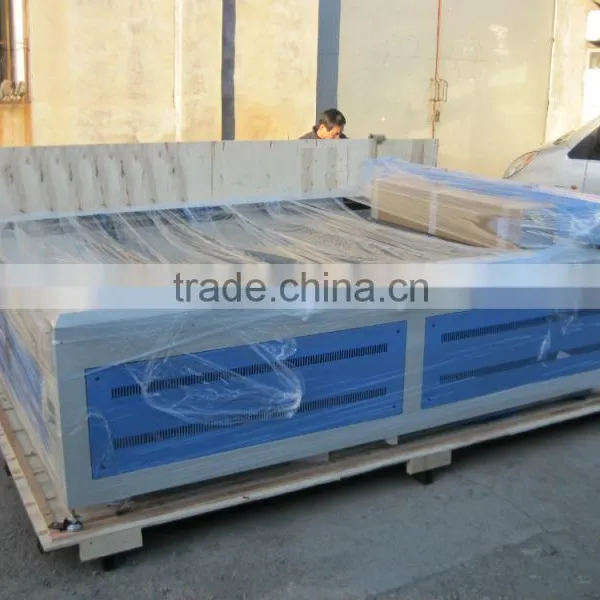

Machine photos:
Samples:
Acrylic cutting and hole making paper cutting
Acrylic cutting Fabric engraving
Leather cutting and drilling
Certificate:
Customer feedbacks:
Contact us:
MAQI
Tel: +86-531-88682639,
Fax:+86-531-88682639/38
Website:
Skype ID: grace005
