Auto G1620 laser machine
Machine Application:
Auto feeding function co2 laser engraving and cutting machine can engrave and cut on all kinds of nonmetallic
materials, materials like wood, leather, acrylic, rubber, fabric, paper, bamboo etc. It’s widely used in many industries,
like gift making, sign making, advertising, cloth manufacturing, fabrics cutting etc. The auto feeding function is specially
design for fabrics cutting, it’s very convenient to cut the roll fabrics.
Difference with other manufacturers:
Heavy steel structure, special design avoid for deviating cutting, long life time tube using, customer good feedback
control system, If any parts broken by wrong operation we all pay for our side delivery charge of parts whatever in
guarantee period or exceed guarantee period.
Consumable parts:
Laser tube (life time is 8000-10000 hours)
Lens (one machine there are totally 3 reflect lenses and 1 focus lens)
Main features:
Working area: 1600x2000mm
Power: 100w
Laser tube type: 8000-10000hours, guarantee period is 8 months
Control mode: USB interface
File export Software: DSP5.3/Topwisdom/ Reader
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, pes, jpg, ai etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: chiller
Table type: auto feeding table
These features above is our standard features, it’s stable and good for work yet, if need more functions or request,
please check below from optional item.
Optional:
1. double heads or more heads
2. servo motors and drivers imported from Japan
3. bigger power tube
Parameters:
Laser power : |
100W |
Laser type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Working area: |
1600mmx2000mm |
Max moving speed: |
1500mm/s |
Worktable: |
Auto feeding table |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
DSP5.3 /Top wisdom/ Reader |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Cooling way: |
Water cooling and protection system |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK, DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-20mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes
|
Whole machine dimension |
2800x2250x1400mm |
Gross weight |
850kgs |
packing |
Plywood case (veneer wood case for export) |

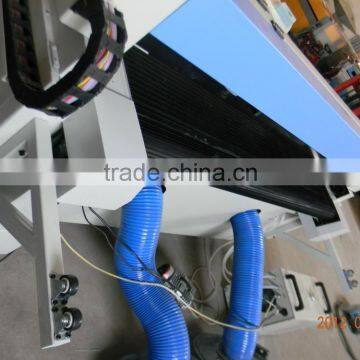

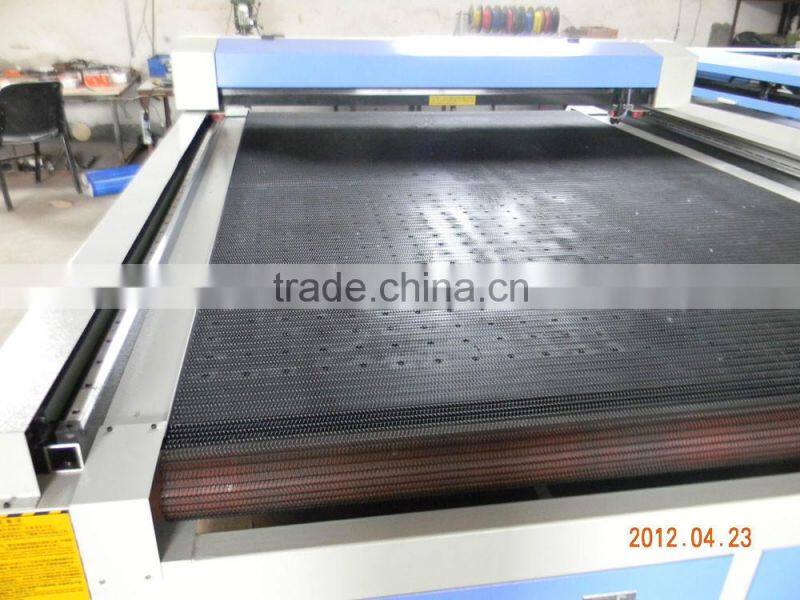

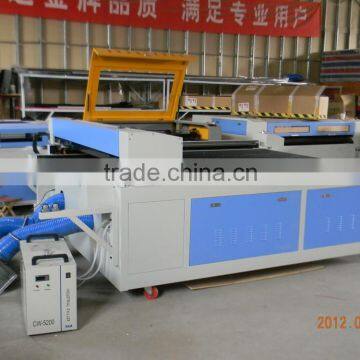

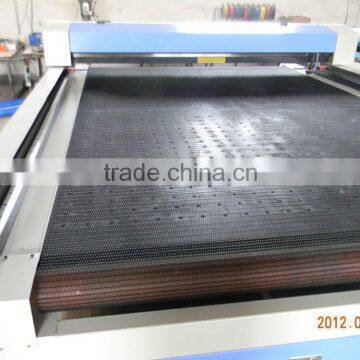

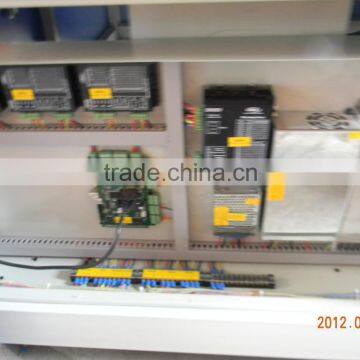

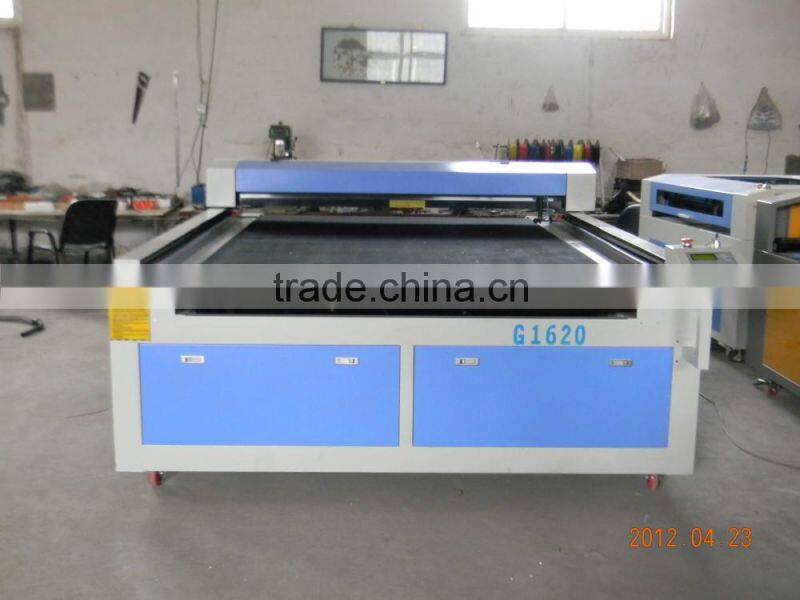

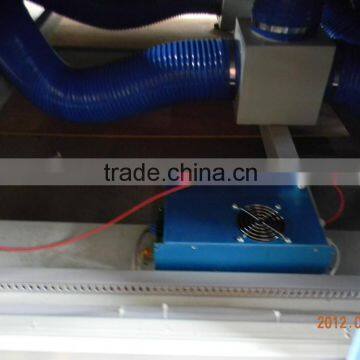

Machine photos:

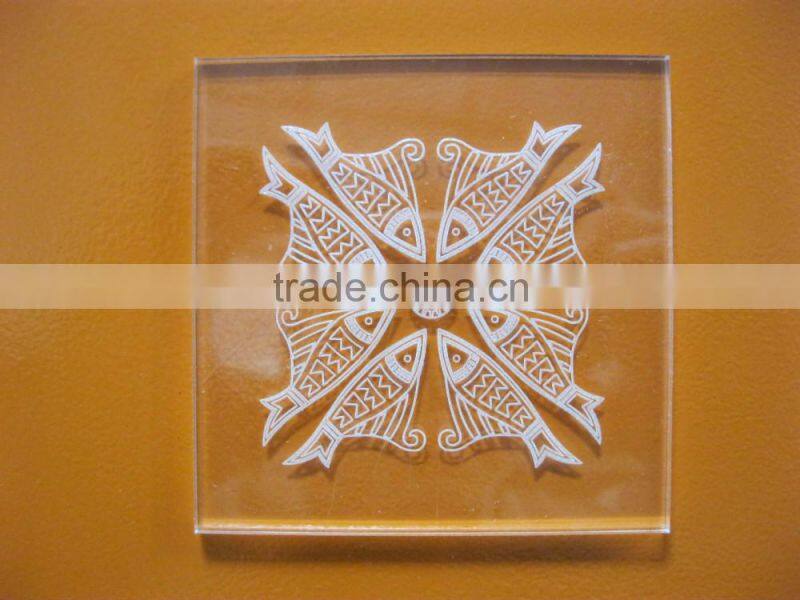

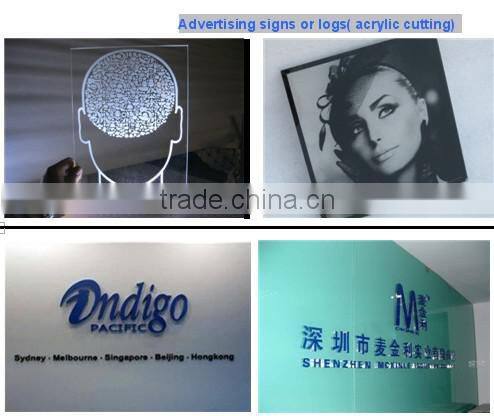

Samples:

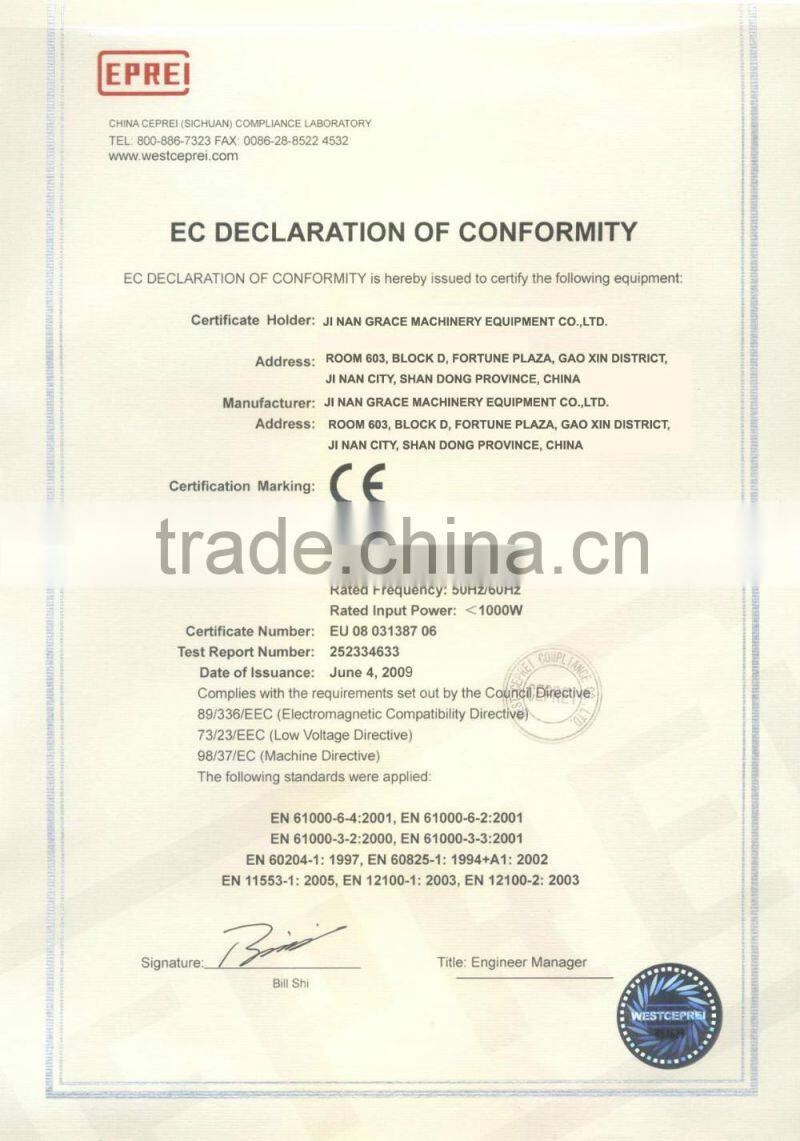

Certificate:
Customer feedback:
Contact us:
sales:Ma Qi
Skpe ID:Grace005
Tel:+86-531-88682639
Fax+86-531-88682638/39
Web:
