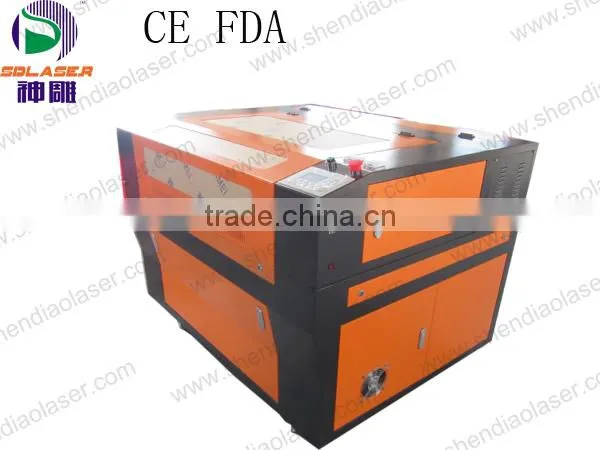

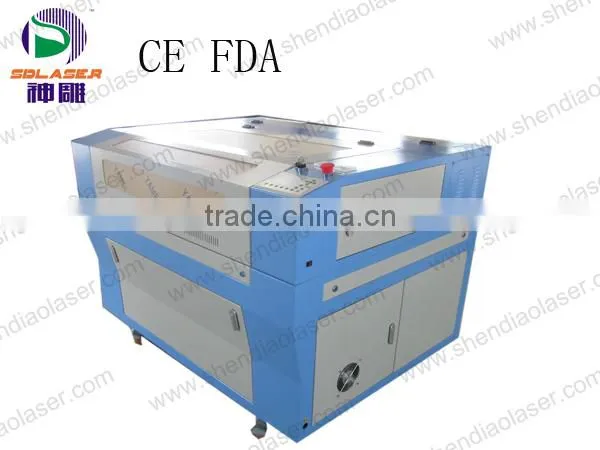

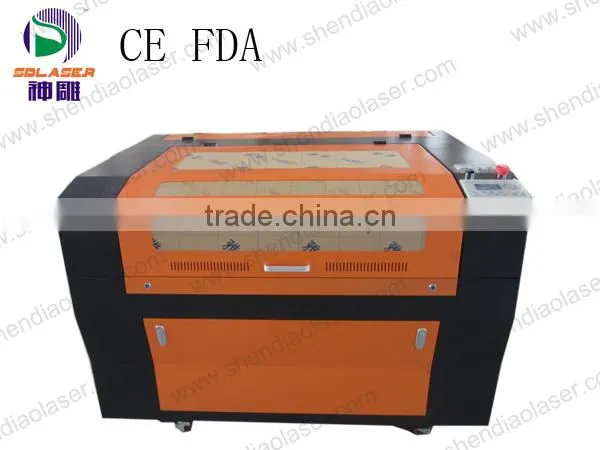

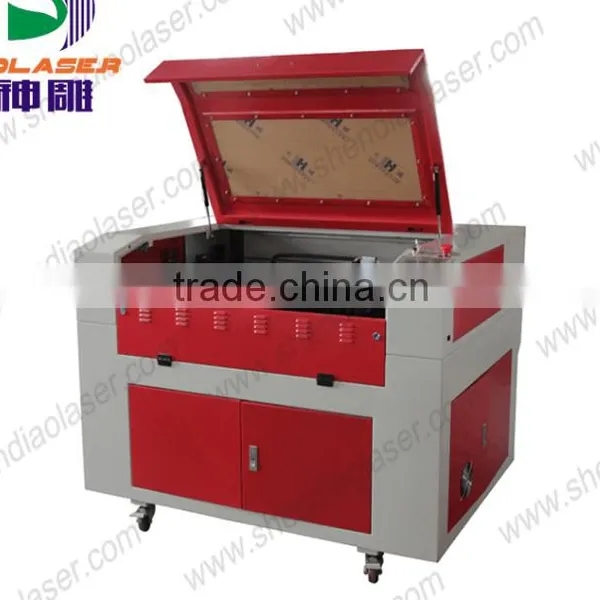

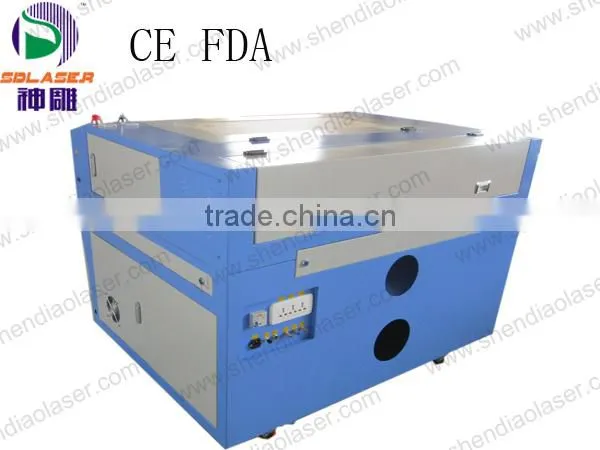

SD-6090 40W co2 laser cnc acrylic sheet laser engraving machine
Parameters:
model |
SD-6090 laser engraving and cutting machine |
Standard laser power |
60w(80w/100w) |
laser type |
sealed co2 laser tube |
Working area(mm) |
600*900 |
cutting depth(mm) |
Acrylic 0-20mm,depends on materials |
Engraving speed |
0-75000mm/min |
Cutting speed |
0-60000mm/min |
Location precision |
≤0.01mm |
Minimum forming character |
Chinese:2x2mm English: 1x 1mm |
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
|
Main Graphic format supported |
PLT/DXF/BMP/AI (Direct output) |
Engraver for Curve surfaces |
Rotary clamp is optional and used to engrave on curve surfaces |
Cooling mode |
Water-cooling and protection system |
Max thickness of engraved object |
280mm |
Laser tube(life hours) |
3500-4000hours |
Gross power |
1200w |
Driving system |
Stepper motor(x,y,z,axis) |
Machine control |
Speedy DSP controling |
G.W. |
280kg |
Applications |
acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials |
Working environment |
Temperature:0-45℃ Humidity:5%-95% |
Certificate |
CE, FDA |
Assistant Equipment |
1.Red dot pointer |
Optional Spare Parts: |
1.Rotary clamp with roller/clips |
Features:
1.It has big power and a high stability laser tube, imported lens and long lifespan mirror.
2.It offers optimization of mechanical and electrical design.
3.It is used imported linear rail and is more precision and durable.
4.It owns functions of restoring from power off, continuation on break point.
Applications:
Engrave |
Cut |
|
Wood |
√ |
√ |
Acrylic |
√ |
√ |
Delrin |
√ |
√ |
Cloth |
√ |
√ |
Leather |
√ |
√ |
Mat Board |
√ |
√ |
Melamine |
√ |
√ |
Paper |
√ |
√ |
Mylar |
√ |
√ |
Pressboard |
√ |
√ |
Rubber |
√ |
√ |
Wood Veneer |
√ |
√ |
Fiberglass |
√ |
√ |
Plastic |
√ |
√ |
Cork |
√ |
√ |
Corian |
√ |
√ |
Twill |
√ |
√ |
Anodized Aluminum |
√ |
|
Painted Metals |
√ |
|
Tile |
√ |
|
Glass |
√ |
|
Coated Metals |
√ |
|
Ceramics |
√ |
|
Marble |
√ |
|
Stainless Steel |
* |
|
Brass |
* |
|
Titanium |
* |
|
Bare Metal |
* |
| Laser power/thickness | Acrylic/mm | Plywood/mm | MDF/mm |
| 25w | 1 | ||
| 40w | 3 | 0.5 | 0.5 |
| 60W | 8 | 5 | 4 |
| 80W/100W | 12 | 8 | 7 |
| 130W | 15 | 10 | 9 |
| 150W | 20 | 15 | 13 |
| 180W | 30 | 20 | 20 |
sample:

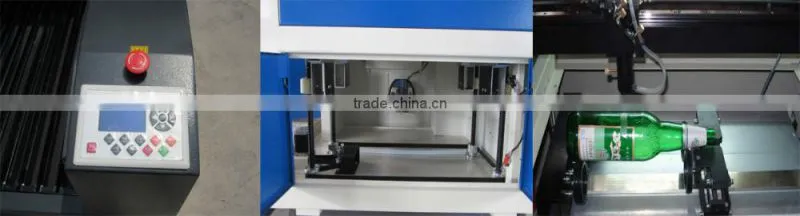

parts:
1. Red dot The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.
2. Honeycomb or blade table optional Aluminum blade table is for processing acrylic, wood and other hard materials; Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing Auto focusing automatically adjust the focusing distance.
5. Rotary Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.
1. 24 hours technical support by e-mail, calling or door-to-door service.
2. English software, user manual and detailed Videos CD.
3. International quality certificate:CE,FDA.
4.12 months for machine warranty and long life span of laser tube.
5. Our technican can offer free training in our workshop.
Jinan Shendiao Mechanical Equipment Co.,Ltd is known for excellent service and bringing forth laser products that are the best quality of all Chinese laser cutting machines. This equipment can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, no noise, no dust, faster processing speed, higher precision, less waste and more efficiency. It is the best option for upgrading traditional equipment in various industries.
Different machine working area :
| Machine model | Working area(mm) |
| SD-5030 | 500mm*300mm |
| SD-6040 | 600mm*400mm |
| SD-9060 | 900mm*600mm |
| SD-1290 | 1200mm*900mm |
| SD-1390 | 1300mm*900mm |
| SD-1410 | 1400mm*1000mm |
| SD-1325 | 1300mm*2500mm |
| SD-1630 | 1600mm*3000mm |
our services
1.Free training course at our plant.
2.24 hours on line service each day, free technical support.

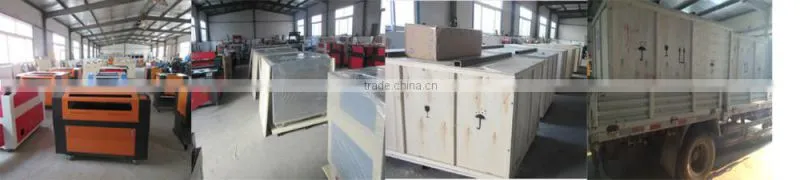

3.Machine has been adjusted before delivery.We will take machine photo sand make machine
working image for you,after getting your agreement ,then we will book a ship.
vide technical services to the door.
5.1 years quality guaranty, the machine with main parts(excluding the consumables)shall be
changed free of charge when if any problem during the warranty period.
6.Lifetime maintenance free of charge.
1.FOB----The nearest port is Qingdao port,and we can also delivery the machine to other port
according to your request.
2.CIF-------Please tell me what’s the destination port when you need CIF price.
3.If you need others, please tell me and I’d like to make it for you.
Payment terms:T/T, Western Union,L/C or others,for your choice
30% in advance,70% before shipping.
FAQ
Q. Do you avaliable spare parts? A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning? A. Yes they do but not after every job, once a week is normally enough Q. Can I put larger materials in the machine? A. Yes, the machine has doors which can be opened to accommodate larger materials
Q. How about the after sell service? A. Free tech support for the whole life of the machine, and 24 hours telephone support. Camera of MSN support by MSN or skype online when you need.
Q. Can the machine engraving and cutting? A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.
Q. is the machine must work with computer? A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.
Q. Can the machine be split so it can fit into my doors? A. no, it can't
Q. How long the laser tube is working well? A. Unfortunately we cannot confirm about this, it is about 3000+ hours.
