FNIRSI TMP-610S High-Definition Diagnostic Terminal features a vibrant 3.5-inch IPS display, providing clear visibility for real-time waveform analysis and measurement data. Its multi-function design streamlines the technician's workstation by replacing multiple bulky tools with one efficient, high-performance unit.
Features:

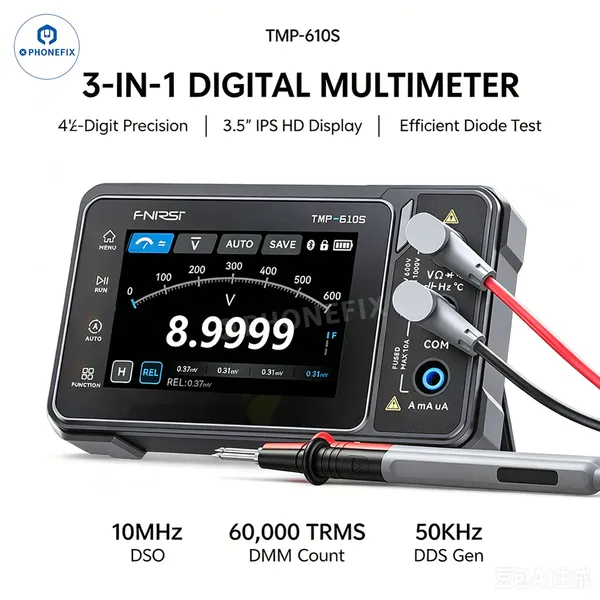

1. Integrates a digital multimeter (DMM), a 10MHz oscilloscope (DSO), and a 50kHz signal generator (DDS) into one unit, offering multiple functions to cover complex electronic testing needs.
2. Supports 4½-digit high-precision measurement, accurately capturing subtle changes in electrical signals and improving measurement reliability.
3. Supports real-time waveform monitoring and signal analysis for circuit debugging and fault location.

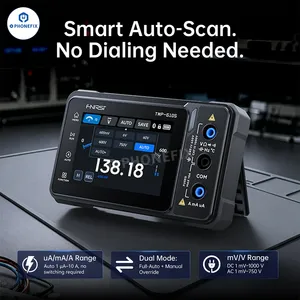

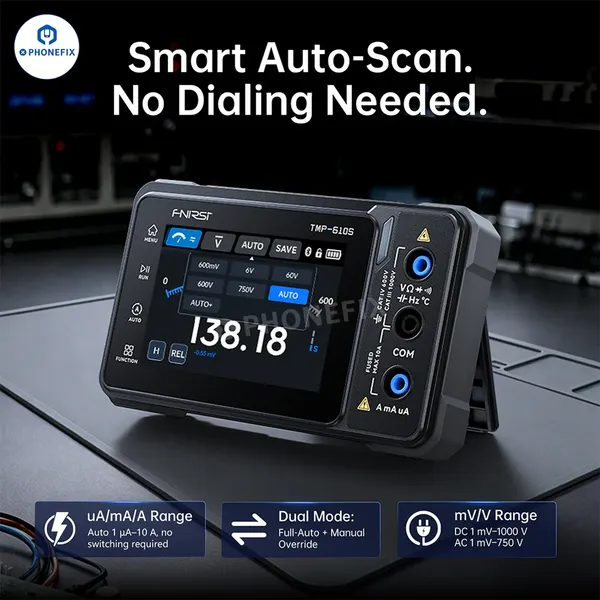

4. Supports fully automatic μA/mA/A switching, eliminating the need for manual range changing and improving measurement efficiency and ease of operation.
5. Supports waveform trend viewing, Min/Max recording, and multi-point data sampling, suitable for complex signal analysis.

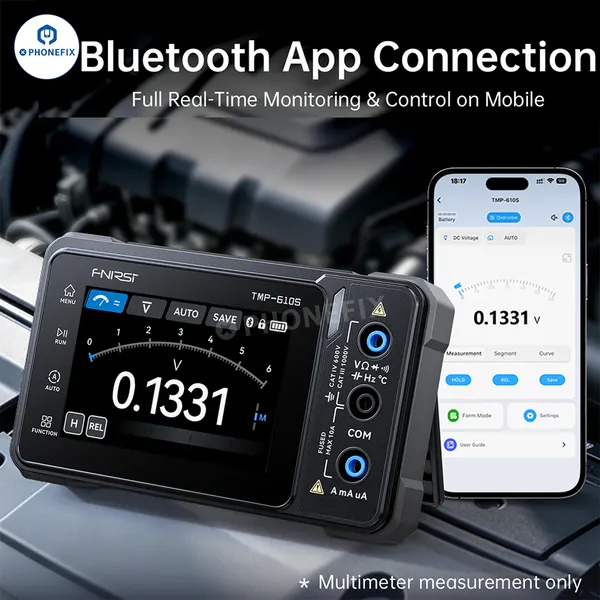

6. Supports real-time monitoring, curve analysis, data saving, and remote operation via mobile device.
7. Supports sine wave, square wave, sawtooth wave, and various complex signal outputs to meet testing and debugging needs.
8. Supports CAT III 1000V / CAT IV 600V high-voltage safety levels and features a built-in 10A fuse protection.
Product Specifications:
Brand: FNIRSI
Model: TMP-600/TMP-610S
Product Type: 3-in-1 Digital Multimeter
Display: 3.5" IPS HD Display
Measurement Accuracy: 60,000 Counts True RMS
Oscilloscope Bandwidth: 10MHz
Sampling Rate: 48MSa/s
Signal Generator: 50KHz DDS
Number of Waveforms: 13

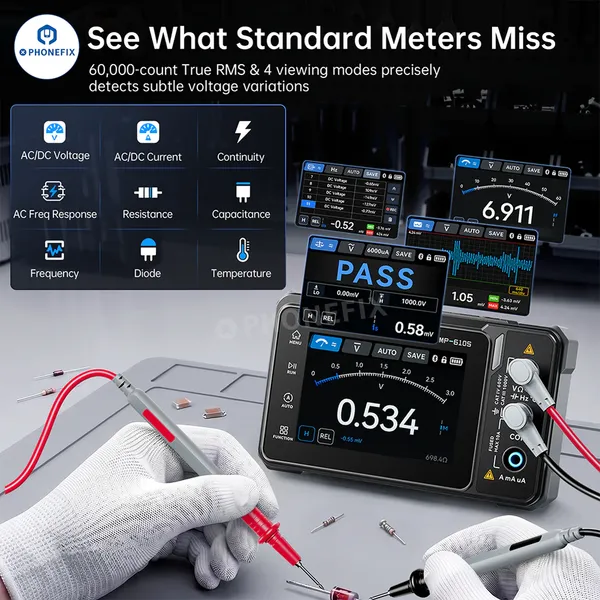

Measurement Functions: AC/DC Voltage, Current, Resistance, Capacitance, Frequency, Diode, Temperature, Continuity
Voltage Range: DC 1mV–1000V / AC 1mV–750V
Current Range: μA / mA / A Auto-Range
Interface: VΩ / Hz °C / COM / A mA uA
Safety Rating: CAT III 1000V / CAT IV 600V
Protection: FUSED MAX 10A
Connectivity: Bluetooth
Operating Mode: Full Auto + Manual Override

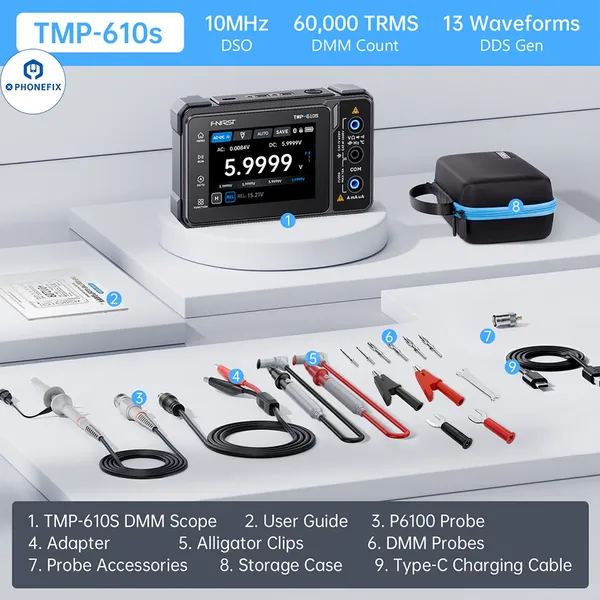

Product List (TMP-600/TMP-610S)
DMM Scope Main Unit x1
User Manual x1
P6100 Oscilloscope Probes x1
Multimeter Probes x1
Alligator Clips x1
Probe Accessories x1
Adapters x1
Type-C Charging Cable x1
Carrying Case x1
