7mm Mini USB Video Waterproof Scope Inspection Camera Endoscope Borescope
- 5000 Piece / Pieces per Month
- Hong Kong
- T/T Credit Card
Product Details
Place of Origin: | China | Model Number: | ED-103 |
Product Description
Specifications

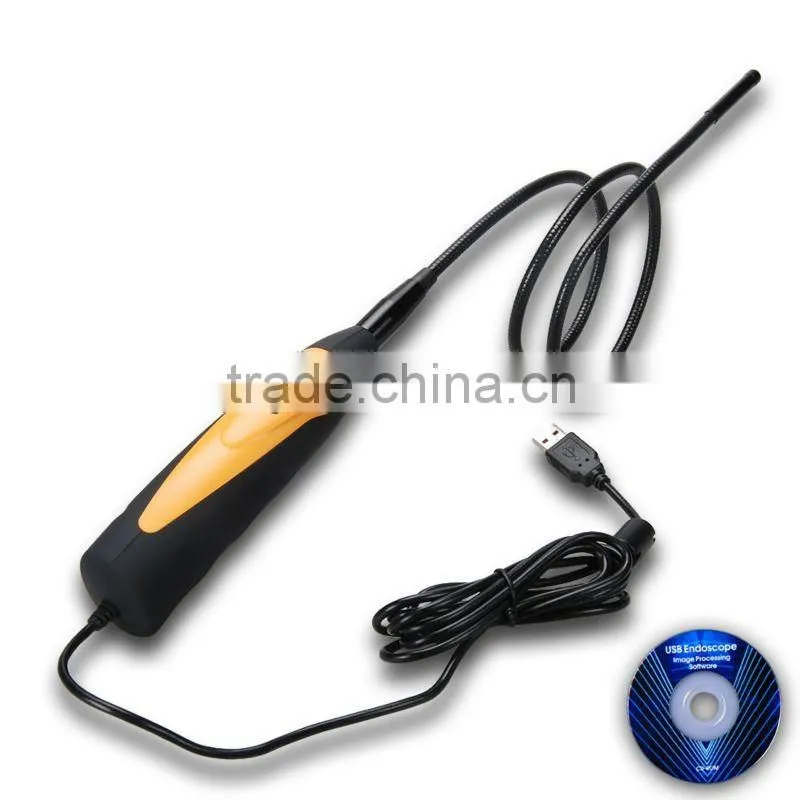

Handheld USB Waterproof Endoscope / Borescope / Inspection CameraBrief Description
This USB Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily in order to save time and increase productivity. You can install the software CD (not necessary for Windows XP or lower system), and just plug to snapshot image in JPG format and capture video in WMV format with 640 x 480 VGA resolutions. This model has a 2m extra-long USB cable for convenient connection to computers.
It has 4pcs of built-in LEDs (with brightness control) on camera head to illuminate the inspection area. The 800mm (2.62 feets) Flexible Supporting Tube is waterproof with 7.0mm diameter camera head so that you can inspect area under water, gaps and holes.
This inspection camera is ideal for many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection.
Features
- Handheld Mini USB Endoscope
- Capture video in WMV format or snapshot image in JPG format
- 30 fps Frame Rate
- 640 x 480 pixels VGA Resolution
- Suitable for hard-to-reach inspection
- 1/12" CMOS len with 60° viewable angle and 5 cm (2 inches) to infinite focal distance
- 4pcs of adjustable white LED for night vision
- 7 mm (0.28 inch) waterproof camera head
- 2m (6.56 feets) USB Cable
- 800 mm (2.62 feets) Flexible Supporting Tube
- Snapshot Button
- PE covered cable with ABS handle
- USB 1.1/2.0/3.0 Interface
Specifications
- Flexible cable neck diameter: 6.0mm (0.24 inch)
- Camera head outer diameter is 7.0mm (0.28 inch)
- USB 1.1/2.0/3.0 interface
- Image Resolution: 640 x 480 pixels
- Len Size: 1/12" CMOS
- View of angle: 60°
- Focal Distance: 5 cm ~ infinite
- Frame Rate: 30 fps
- USB Cable Length: 2m (6.56 feets)
- Flexible cable Neck: 800mm (2.62 feets)
- Item Weight: approx. 270 g (9.5 oz) (excluding accessories)
One Set Included
- 1 x USB Endoscope with USB Cable
- 1 x Software CD
- 1 x Instruction Manual
- Standard Factory Package
