2.4" LCD Video Snake Pipe Inspection Camera Borescope Endoscope
- 5000 Piece / Pieces per Month
- Hong Kong
- T/T Credit Card
Product Details
Place of Origin: | China | Model Number: | ED-104-2M |
Product Description
Specifications

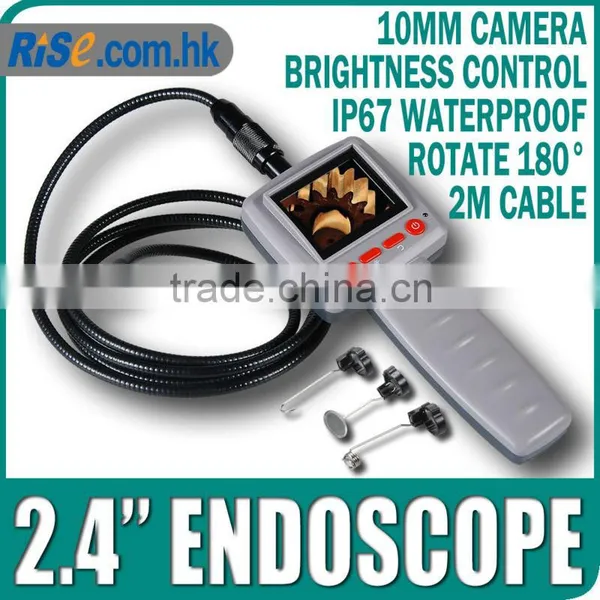

2.4" Portable Video Inspection Camera / Endoscope / BorescopeBrief Description

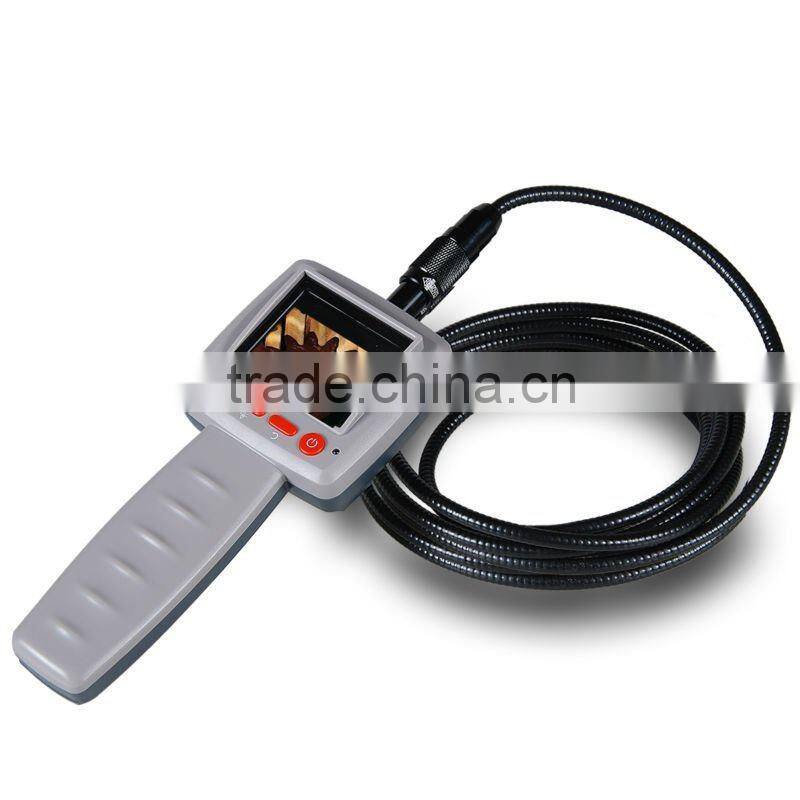

This new designed Inspection Camera allows you to inspect hard-to-reach areas. You can use this device to look into tight spots and beam back real-time video for monitoring. This inspection camera has the large 2.4" color LCD receiver. The image flip over and 180° rotation function on receiver allows you to adjust viewing orientation.
The camera head is equipped with 4pcs of fully adjustable LEDs for night vision and day time usage. The mini 10mm camera is waterproof so that you can inspect under water (when assembly properly). The horizontal viewing angle of the camera is 54°.

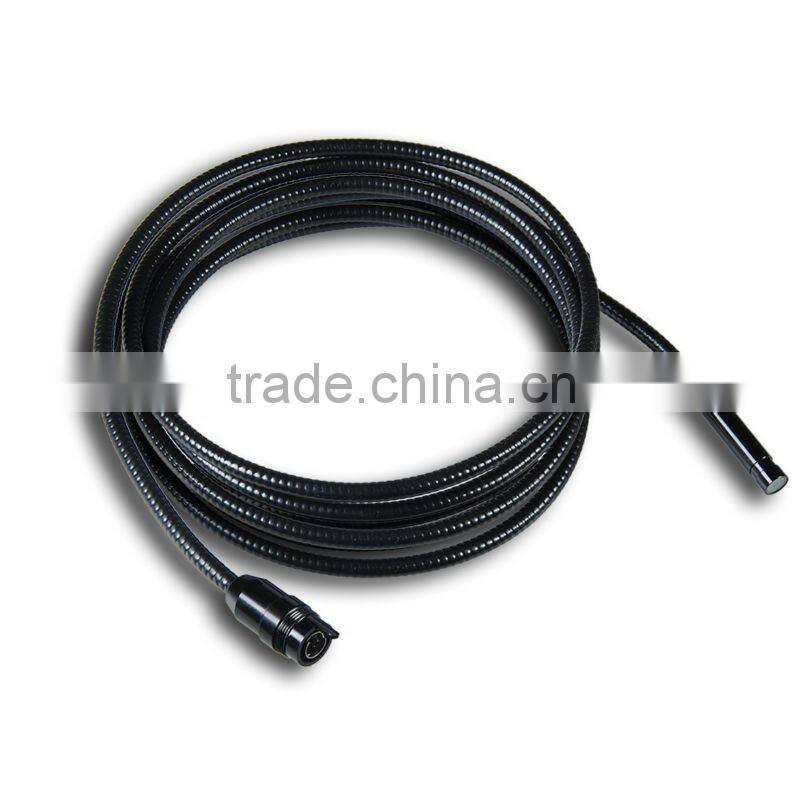

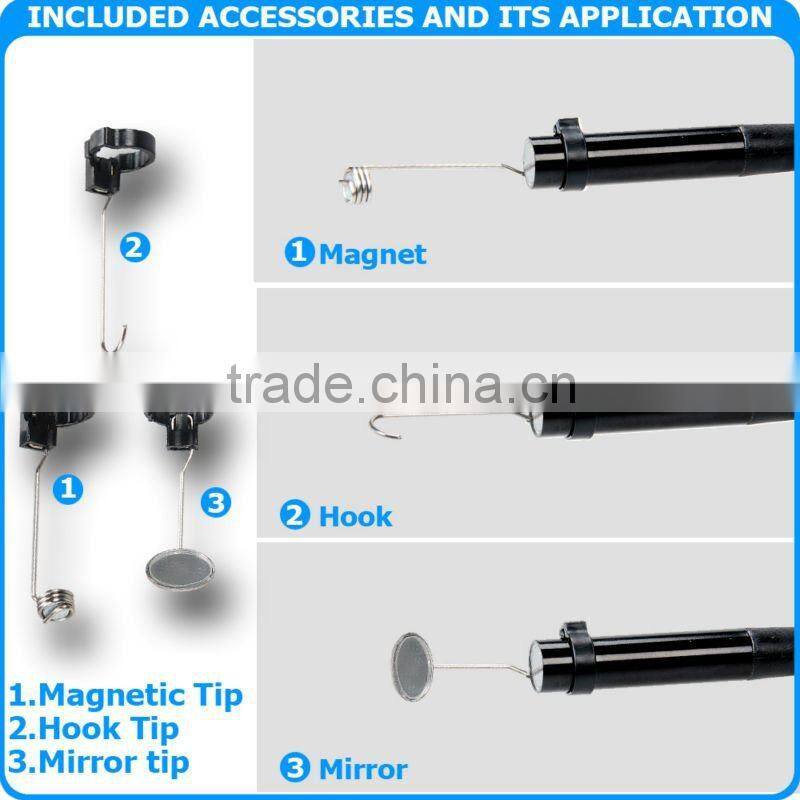

The extra-long flexible 2m (6.56 feets) supporting cable allows you to extend the vision to point of discovery. The tool set also comes with accessory hook, magnet and mini mirror to speed up the identification of problems.

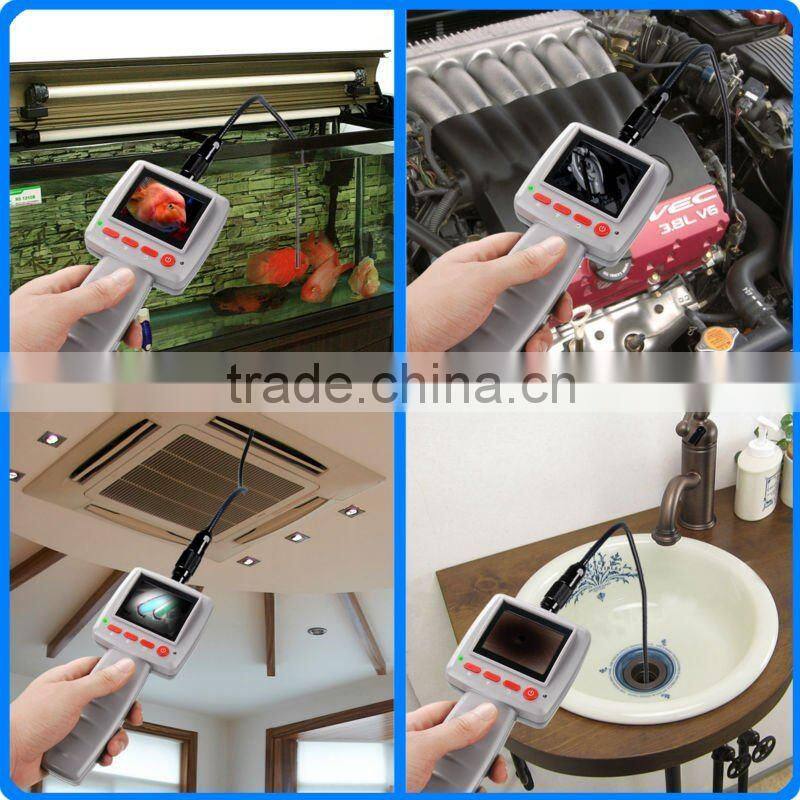

This inspection camera has many applications including HVAC inspection, automotive inspection, cable routing, car / boat / aircraft inspection.
Features
- Extra-long Flexible 2 metres (6.56 feets) Supporting Cable
- Suitable for hard-to-reach inspection
- Large and clear 2.4 inches TFT color LCD
- Horizontal and Vertical Flip Over
- 180° Image Rotation function
- 4pcs of fully adjustable LEDs for night vision
- Mini 10mm & IP67 Waterproof Camera Head
- Lens with 54° Viewable Angle
- Glare-free close-ups and wide range field of view
- Low Battery Indicator
- Comfort Grip Housing
- Conformed with CE Standard
Specifications
- Imaging Sensor: CMOS
- LCD Size: 2.4 inches (6cm) TFT
- Pixel Count: 320 x 240, 640 x 480
- Horizontal Viewing Angle: 54°
- Minimum Illumination: 0 Lux
- Night Vision Range: 1.5 m
- Tube Diameter: 7mm
- Waterproof Capacity: IP67 (For Lens/Tube only)
- Effective Pixels: 640 x 480
- Operating Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
- Operating Humidity: 95% max
- Consumption Current: 150 mA

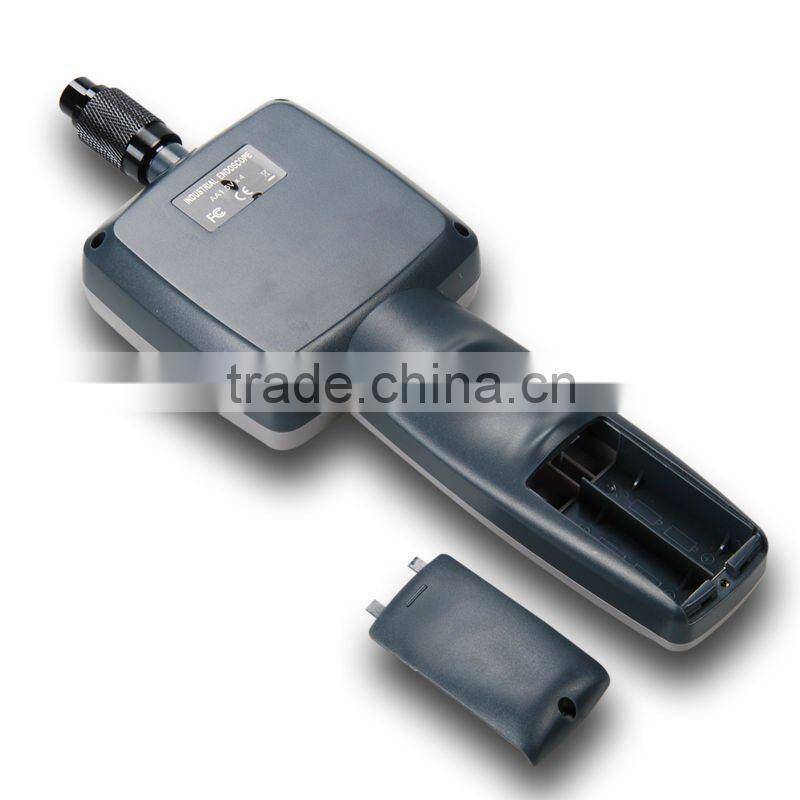

- Power Supply: 4 x 1.5 V AA Batteries (not included)
- Item Dimension: approx. 2200 (L) x 85 (W) x 40 (D) mm (86.6 x 3.35 x 1.57 inches)
- Item Weight: approx. 500 g (17.63 oz)

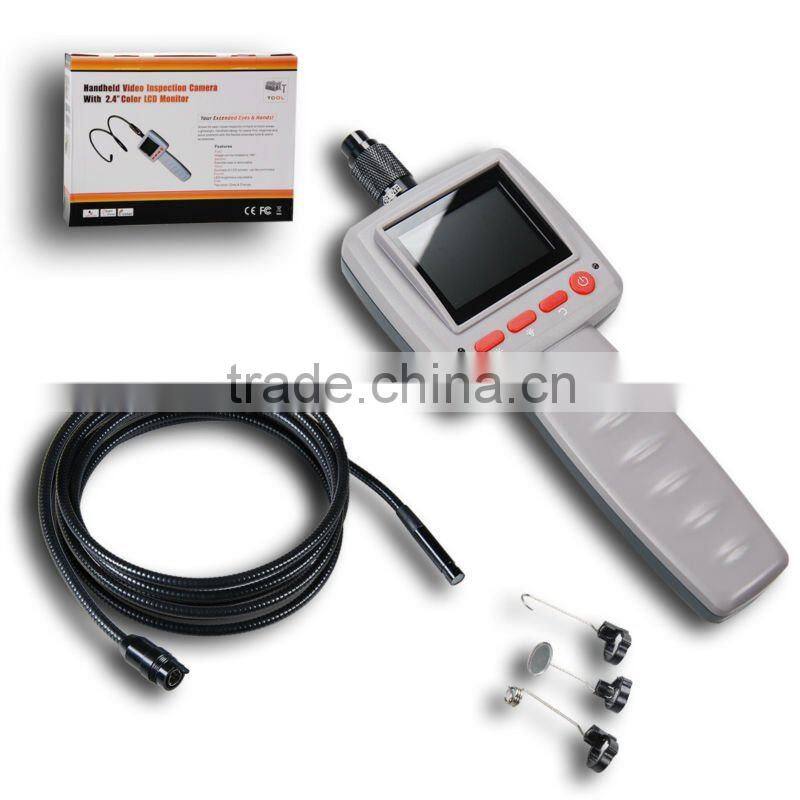

One Set Included
- 1 x 2.4" LCD Inspection Camera
- 1 x 10mm Waterproof Flexible Camera
- 1 x 2 m (6.56 feets) Cable
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 1 x Instruction Manual
- Standard Factory Package
