Specifications

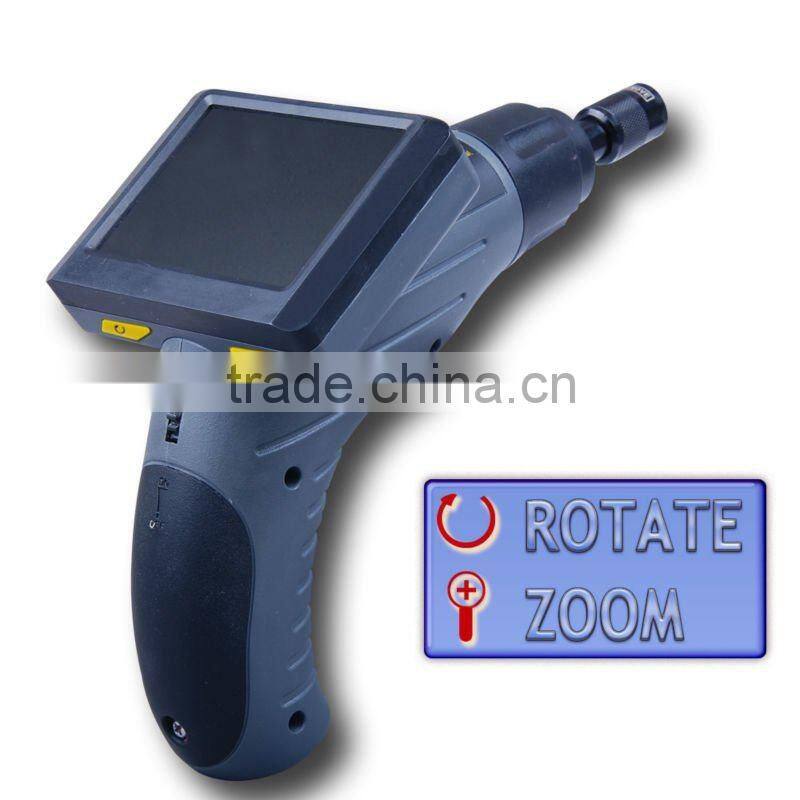

3.5" LCD Inspection Camera / Endoscope / Borescope with Flexible Camera ProbeBrief Description
This Large 3.5" Color LCD Video Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity.

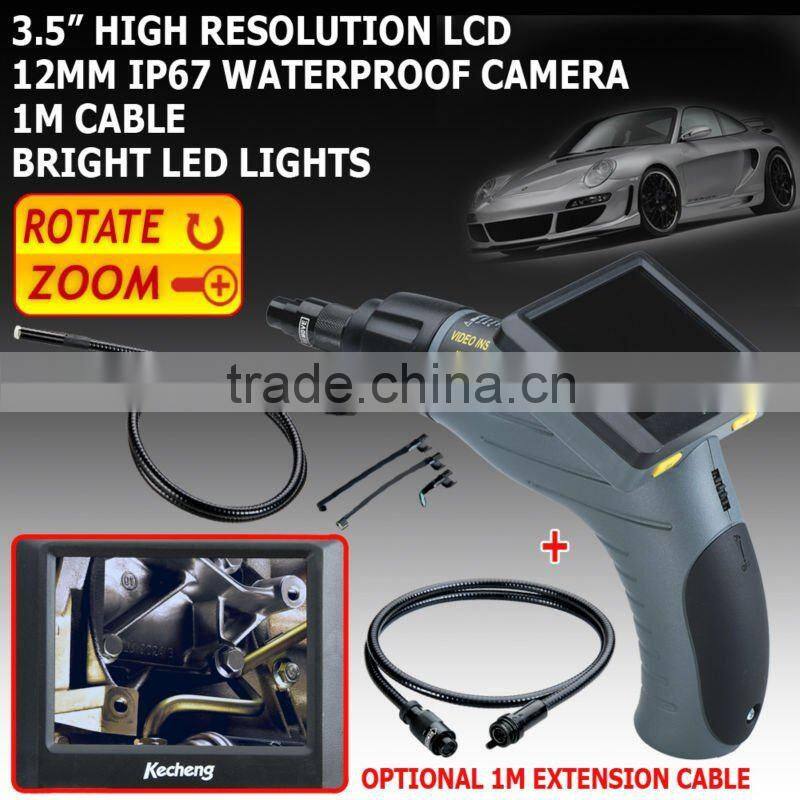

The product has 2x Image Zoom and 180° Image Rotation. It has built-in LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m (3.3 feets) Flexible tube is Waterproof with 12 mm diameter so that you can inspect area under water, gaps and holes. Optional Extension Cable (1 m / 3.3 feet) allows you to extend the vision of inspection point.

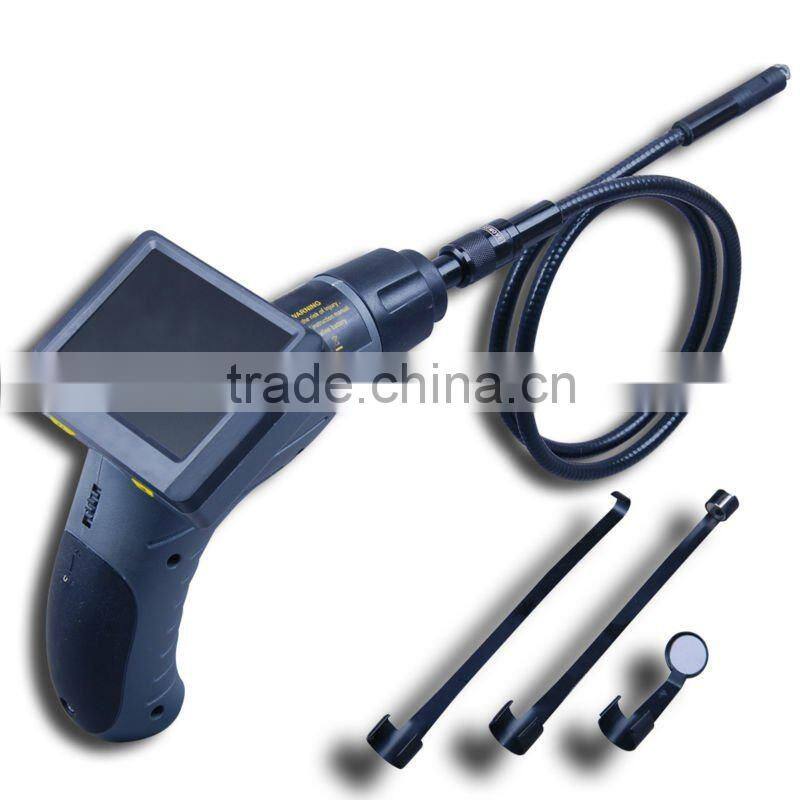

The tool set also comes with accessory hook, magnet and mini mirror to attach to the camera head for picking up small objects, viewing and hooking to identify the problem conveniently.

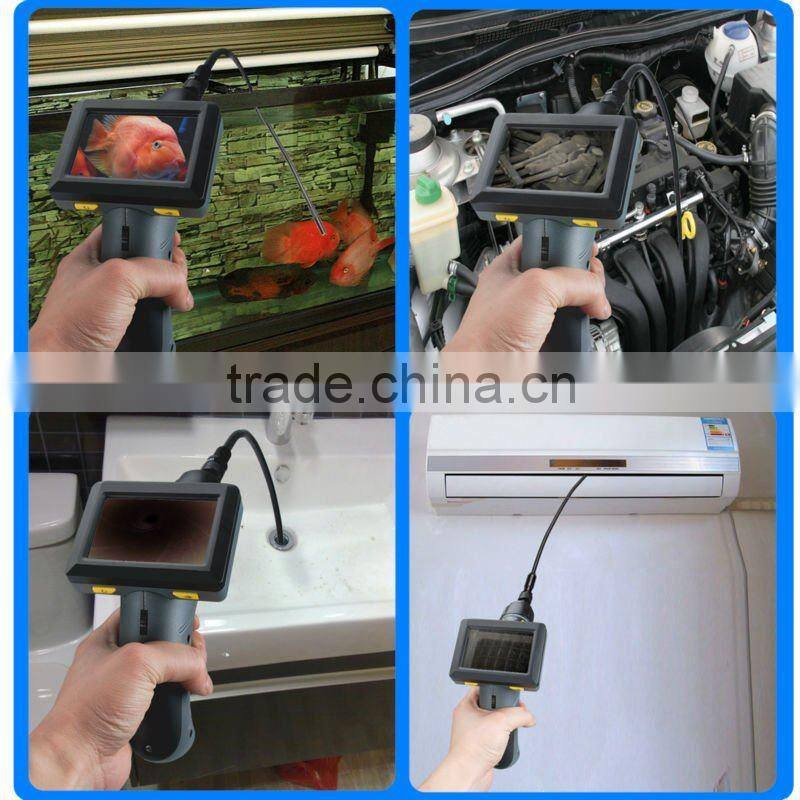

This inspection camera has many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection.
Features
- Large 3.5" TFT Color LCD Monitor with 320 x 234 pixels
- Clear image and stable performance
- 2x Image Zoom and 180° Image Rotation

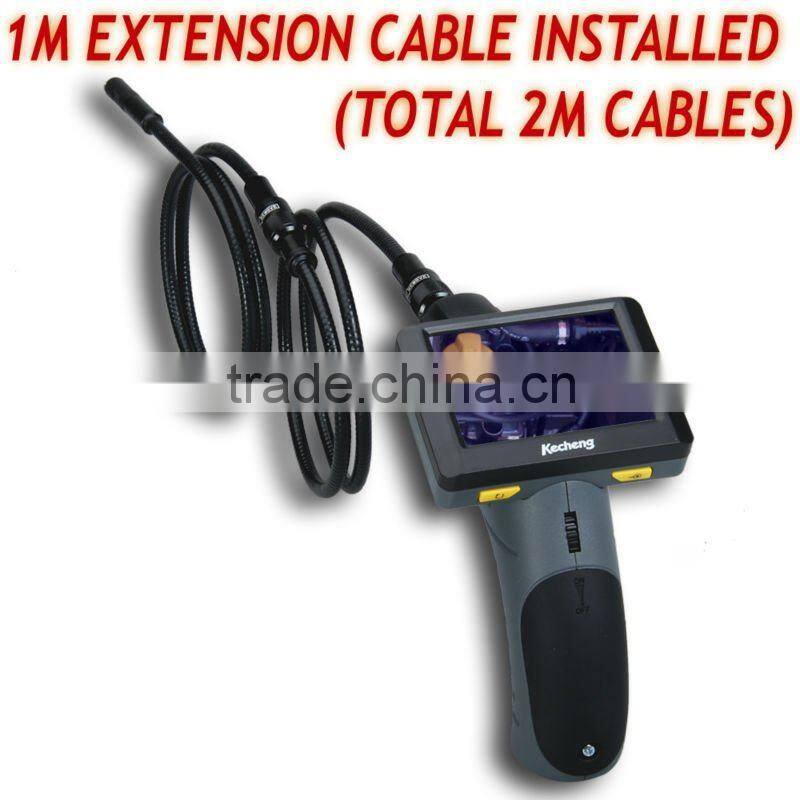

- Flexible and Detachable 1 m Camera Probe (Can be extended with Optional Cable up to 5 metres)
- Fully waterproof camera head (12 mm / 0.47 inch)
- Adjustable Brightness of LED Light
- Twist and Lock Attachments
- Magnet, Hook and Mirror Tips included
- Fit for hard to reach distant inspection
- 9V Alkaline Battery operated

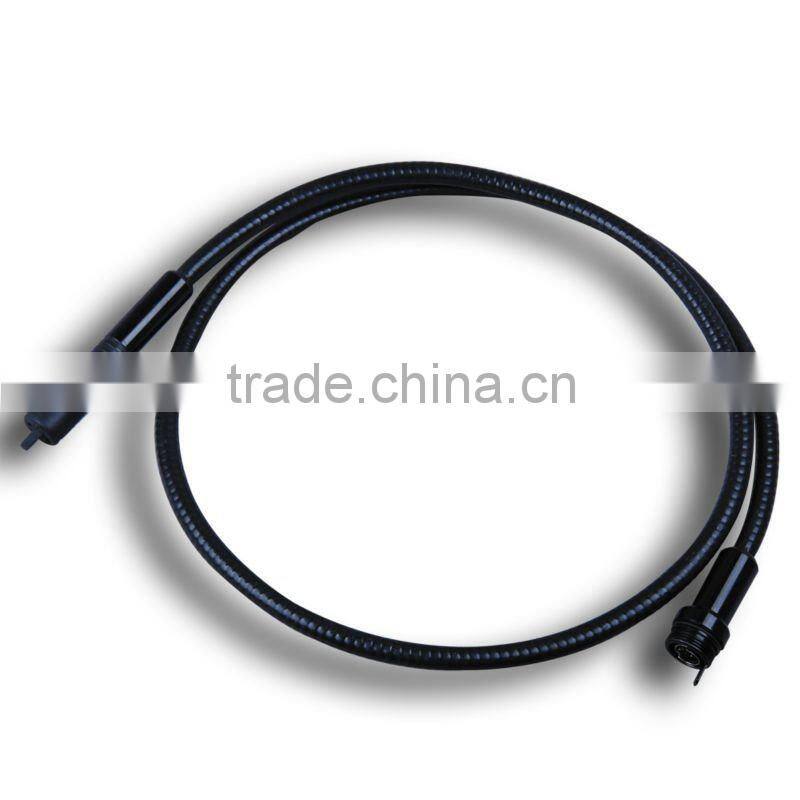

- Optional Extension Cable (1 Metre / 3.3 feet)
Specifications
- LCD Display: 3.5" inch (8.9 cm) TFT LCD
- Resolution: 320 x 234 pixels
- Recommend Indoor use
- Image Rotation: 180°
- Image Zoom: 2x
- Viewable angle: 60°
- Focal length: 50 mm (1.97 inch)
- Viewable distance: 2.5 ~ 30 cm (0.98 ~ 11.81 inch)
- Diameter of camera head: 12 mm (0.47 inch)
- Accessories: Magnet Tip, Hook Tip and Mirror Tip
- Probe Length: 1 metre (3.3 feets)
- Probe Diameter: 12 mm (0.47 inch)
- Probe and camera head protection: IP67 waterproof
- Light source: High lighting LED
- Power supply: 1 x 9V Alkaline battery
- Operating temperature: 0 ~ 45 °C (32 ~ 113 °F)
- Storage temperature: -20 ~ 60 °C (-4 ~ 140 °F), ≤85% (battery excluded)
- Dimension: approx. 215 (L) x 156 (W) x 80 (D) mm (8.46 x 6.14 x 3.15 inch)
- Weight: approx. 256 g (9.03 oz) (Battery and Probe excluded)
One Set Included
- 1 x 3.5" LCD Inspection Camera
- 1 x 1 m Flexible Cable with Camera Head
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 1 x 9V Battery
- Optional Extension Cable (1 Metre / 3.3 feet)
- 1 x Instruction Manual
- Standard Factory Package
