Specifications
2.4" LCD Inspection Camera (9mm Probe & 4 LED)Brief Description

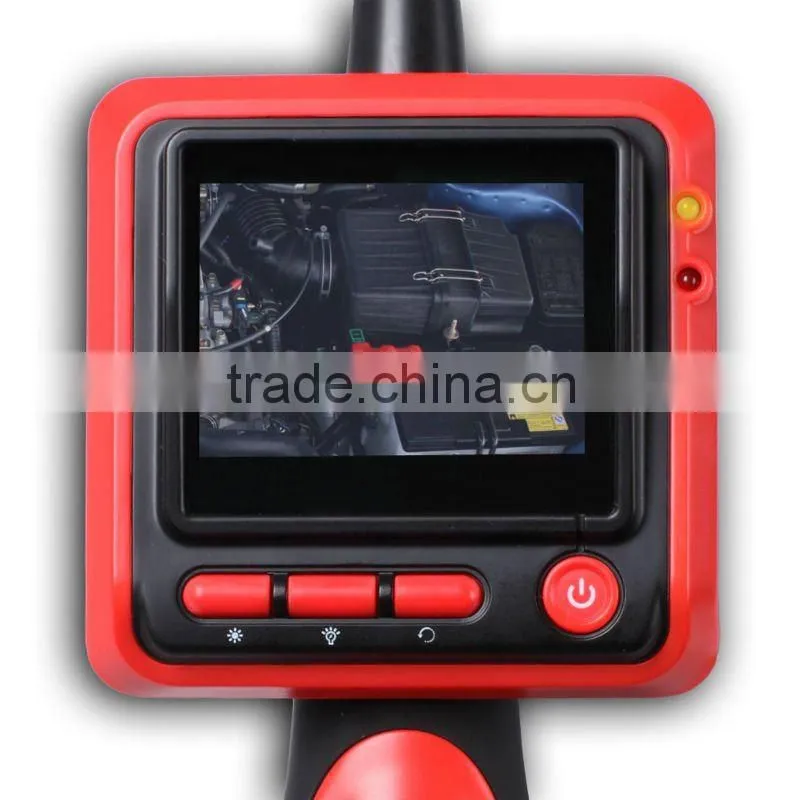

This new designed Inspection Camera allows you to inspect hard-to-reach areas. You can use this device to look into tight spots and beam back real-time video for monitoring. This inspection camera has the Large 2.4" Color LCD receiver. The 180° image rotation function on receiver allows you to adjust viewing orientation.
The camera head is equipped with fully 4 adjustable LED lights for night vision and day time usage. The Mini 9 mm camera is waterproof so that you can inspect 25 cm (10 inch) under water (when assembly properly). The horizontal Viewing angle of the camera is 45°.

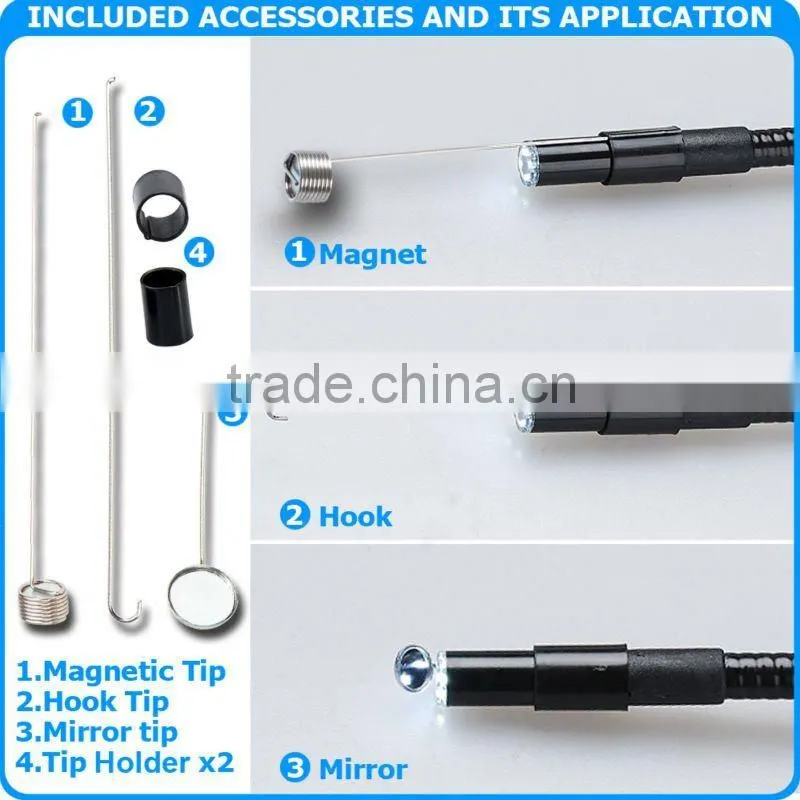

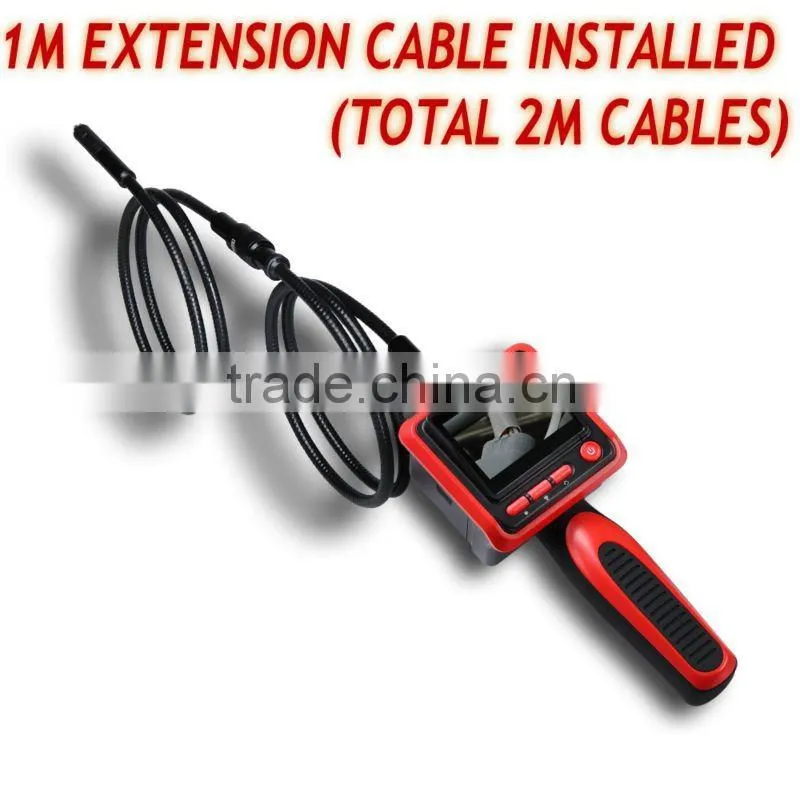

The Long Flexible 1 metre (3 feet) Cable allows you to extend the vision to point of discovery. Optional Extension Cable (1 m / 3.3 feet) allows you to extend the vision of inspection point. The tool set also comes with accessory hook, magnet and mini mirror to speed up to identify the problem.

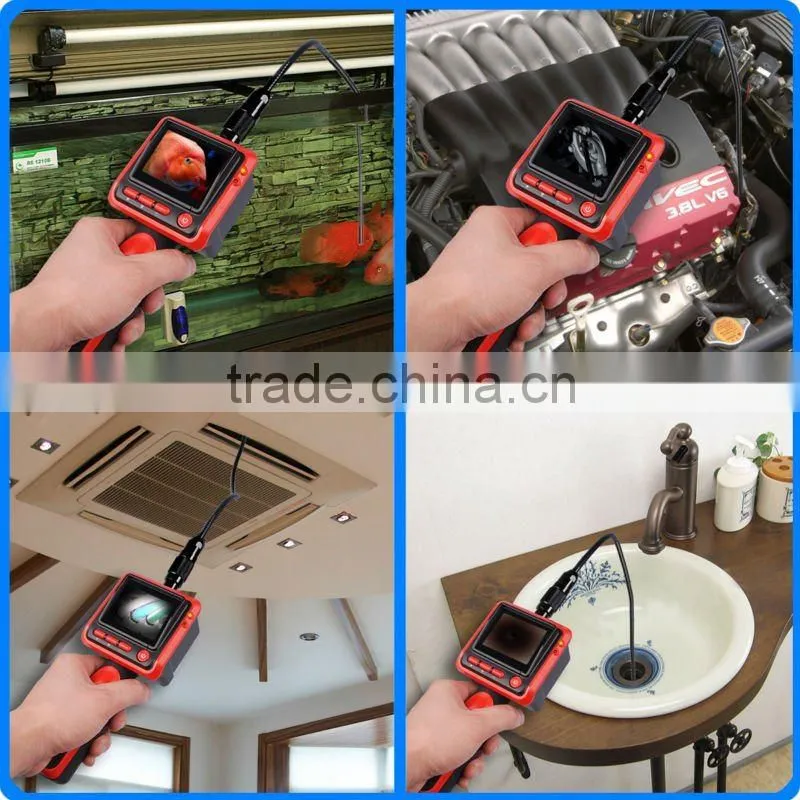

This inspection camera has many applications including HVAC inspection, automotive inspection, cable routing, automotive / boat / aircraft inspection.
Features
- Suitable for hard-to-reach inspection
- Large and Clear 2.4 inch TFT LCD Color Display
- Horizontal and Vertical Flip
- 180° Image Rotation function
- 4 Fully adjustable LED lights for night vision
- Mini 9 mm Waterproof Camera Head
- Lens with 45° Viewable Angle
- Glare-free close-ups and wide range field of view
- Long Flexible 1 metre (3 feet) Cable
- Low Battery Indicator
- Comfort Grip Housing
- Conformed with CE Standard
- Optional Extension Cable (1 Metre / 3.3 feet)
Specifications
- Imaging Sensor: CMOS
- LCD Size: 2.36 inch (6cm) TFT
- Total Pixels: 640 x 480
- Horizontal Viewing Angle: 45°
- Minimum Illumination: 0 Lux
- Night Vision Range: 1.5 m
- Tube Diameter: 9 mm
- Waterproof Capacity: IP67 (for Lens/Tube only)
- Effective Pixels: 480 x 234
- Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F)
- Operating Humidity: 15 ~ 85 R.H.
- Consumption Current: 150 mA
- Power Supply: 4 x 1.5 V AA Batteries (not included)
- Item Dimension: approx. 201 (L) x 83 (W) x 59 (D) mm (7.91 x 3.27 x 2.32 inch)
- Item Weight: approx. 383 g (13.51 oz)

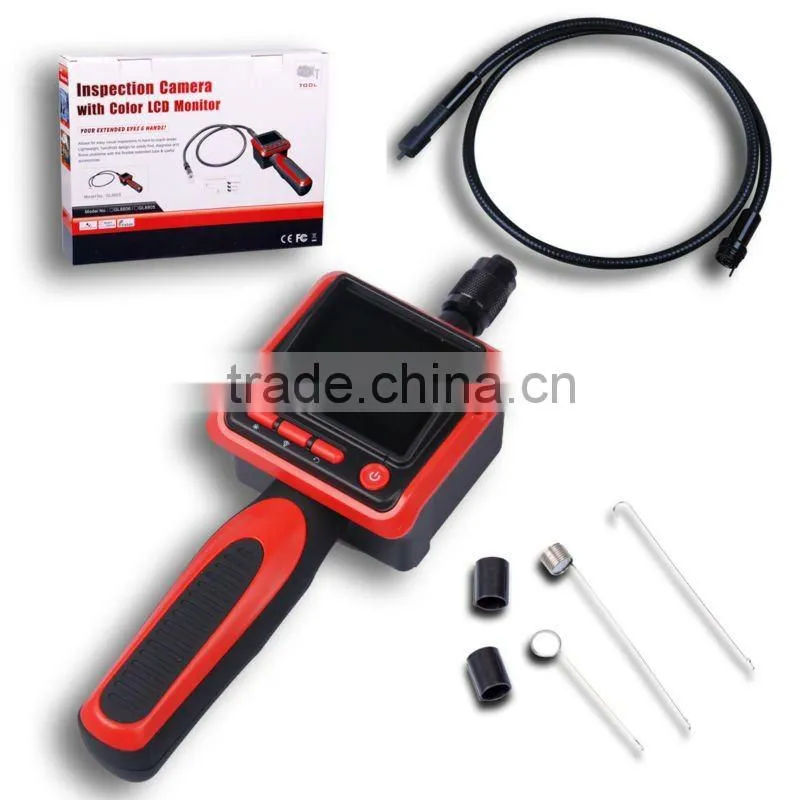

One Set Included
- 1 x 2.4" LCD Inspection Camera
- 1 x 9mm Waterproof Flexible Camera
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 2 x Rubber Rings
- Optional Extension Cable (1 Metre / 3.3 feet)
- 1 x Instruction Manual
- Standard Factory Package
