Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > 2.4" LCD Wireless Rotate LED Inspection Camera Endoscope Borescope

2.4" LCD Wireless Rotate LED Inspection Camera Endoscope Borescope

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

ED-101

Contact Supplier Request Quote Chat Now

Rise Enterprise Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number ED-101

Specifications

2.4" LCD Wireless Inspection Camera with 1M / 2M Flexible Tube

Brief Description

This new designed Wireless Inspection Camera allows you to inspect hard-to-reach areas. You can use this device to look into tight spots and beam back real-time video for monitoring.

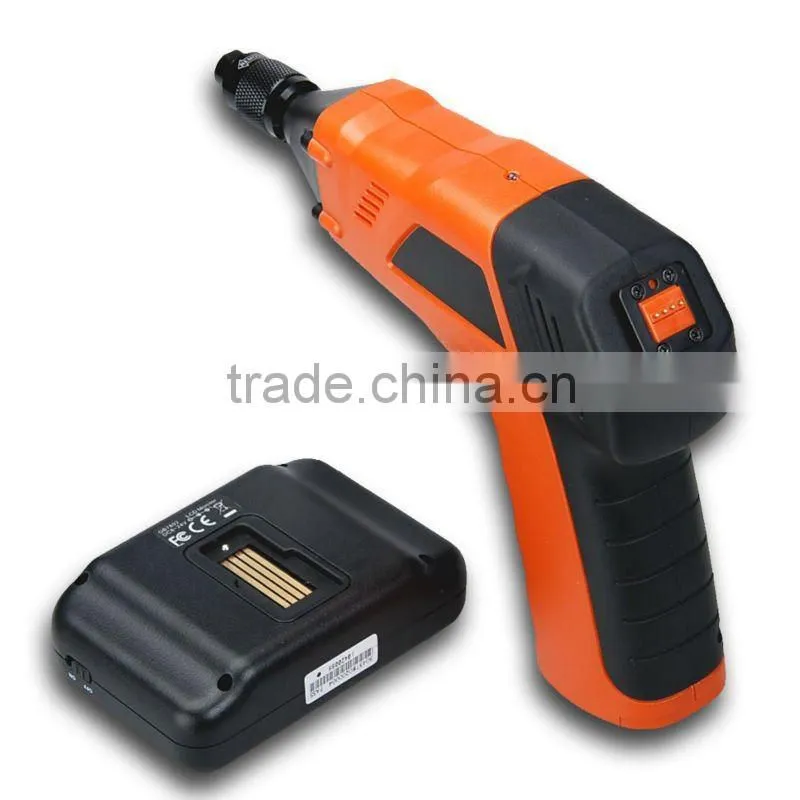

Compared with traditional inspection camera, the 2.4" Color LCD receiver can be detached from the main unit for remote viewing. The image orientation function on receiver allows you to adjust the viewing orientation of image. In addition, the receiver has built-in rechargeable Li-battery with long useful life.

The camera head is equipped with 4pcs of adjustable LED lights for night vision and inspection in dark areas. The mini 9 mmcamera is waterproof so that you can inspect 25 cm (10 inchs) under water (when assembled properly). The horizontal viewing angle of the camera is 45°.

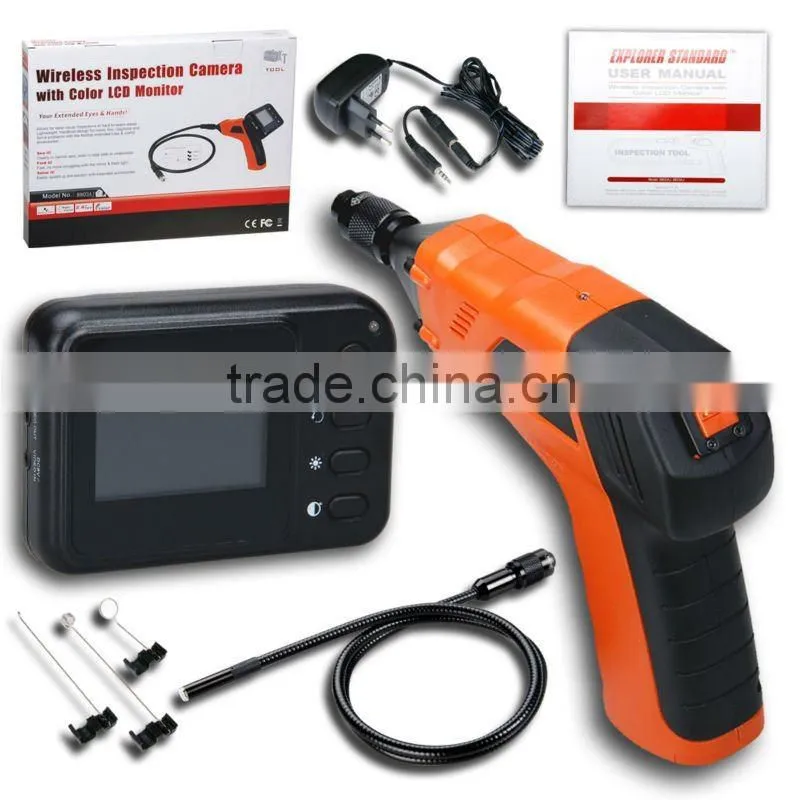

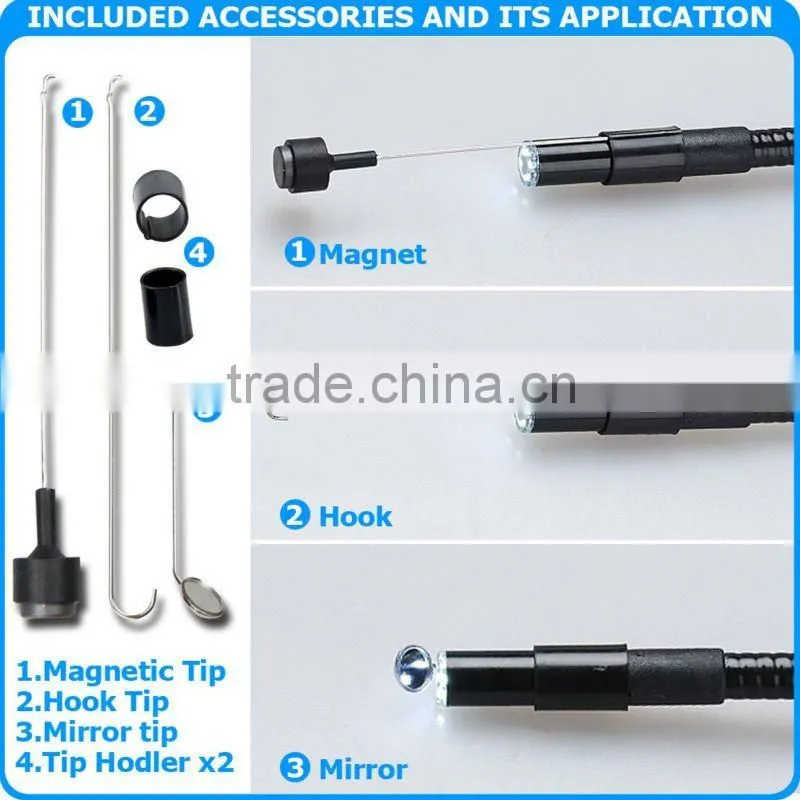

The long flexible 1 m (3.3 feets) cable allows you to extend the vision to point of discovery. Optional extension cable (1 m / 3.3 feets) allows you to further extend the vision of inspection point. The tool set also comes with accessory hook, magnet and mini mirror to speed up to identify the problem.

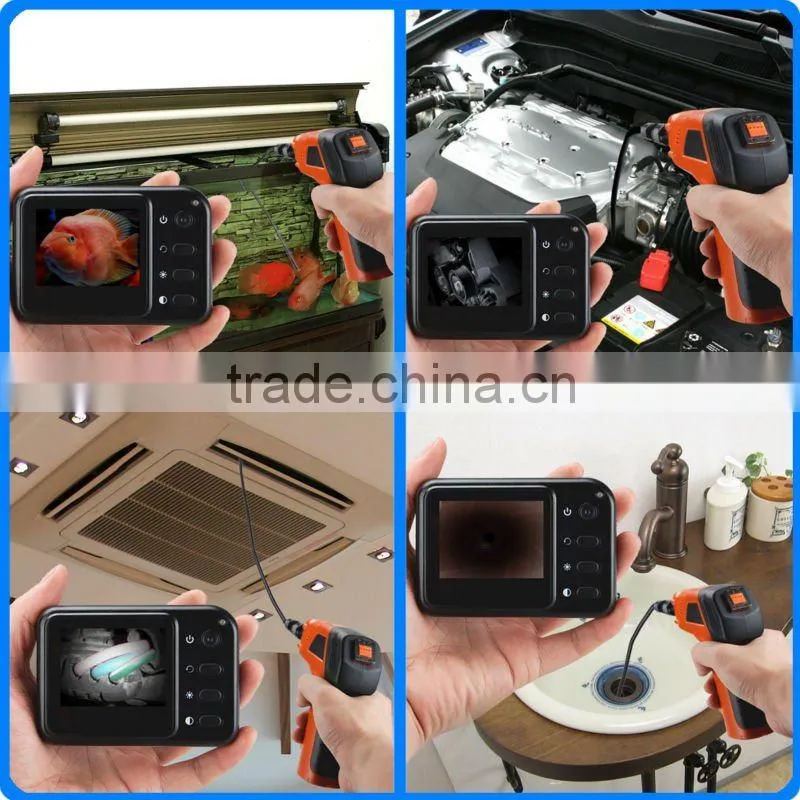

This inspection camera is ideal for HVAC inspection, automotive inspection, cable routing, automotive / boat / aircraft inspection.

Features

Assist for inspection in hard to reach areas

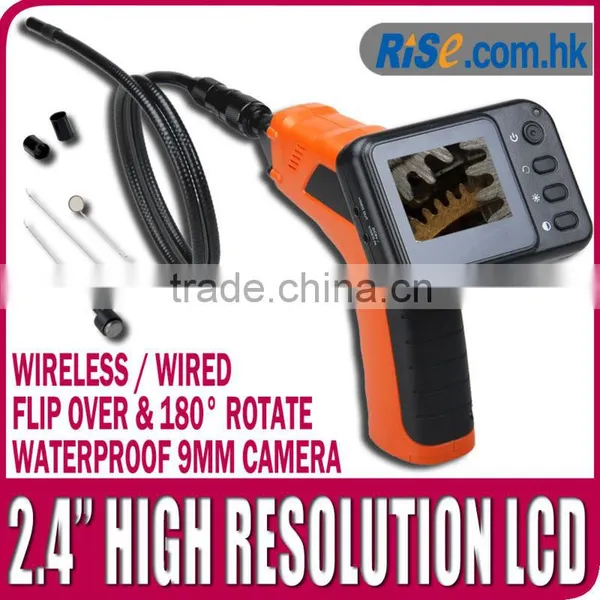

Wireless and wired mode for convenient viewing
10 m unobstructed effective range between camera and LCD receiver

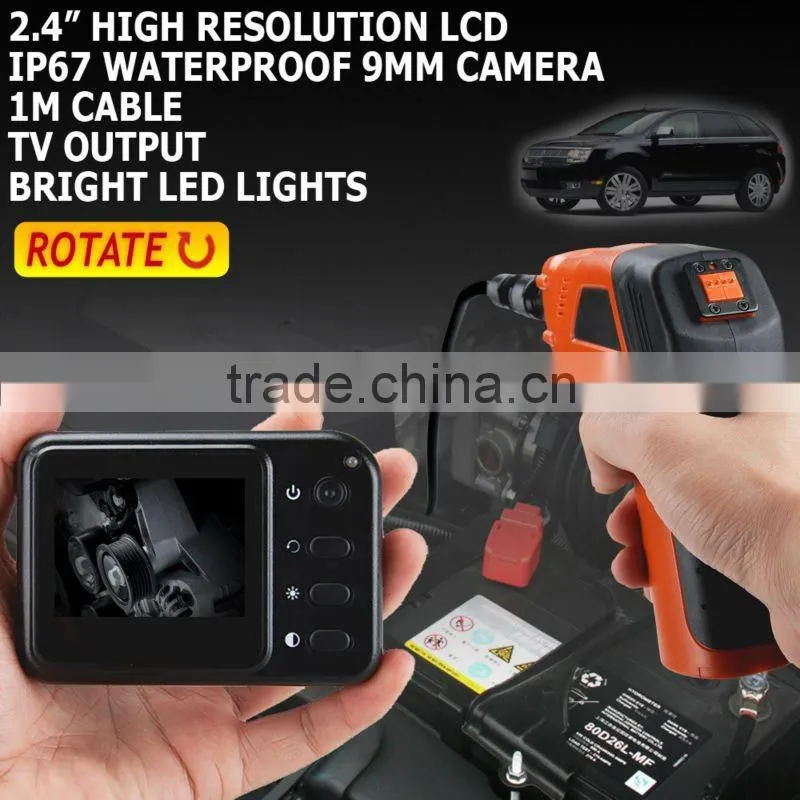

High resolution 2.4" Color TFT LCD receiver
Adjustable brightness and contrast on screen
Built-in rechargeable Li-battery for wireless receiver
Image orientation of flip over and 180° rotation can be adjusted
Hand-held design and light weight so that you can inspect everywhere you want
4pcs of adjustable LED lights for night vision
Mini 9 mm camera head
IP67 waterproof camera head to view maximum 25 cm (10 inchs) under water (when assembled properly)
Twist and lock attachments
Glare-free close-ups and wide range field of view
Long flexible cable (1 m / 3.3 feets)
Comfort grip housing
Video output to TV (AV cable not included)

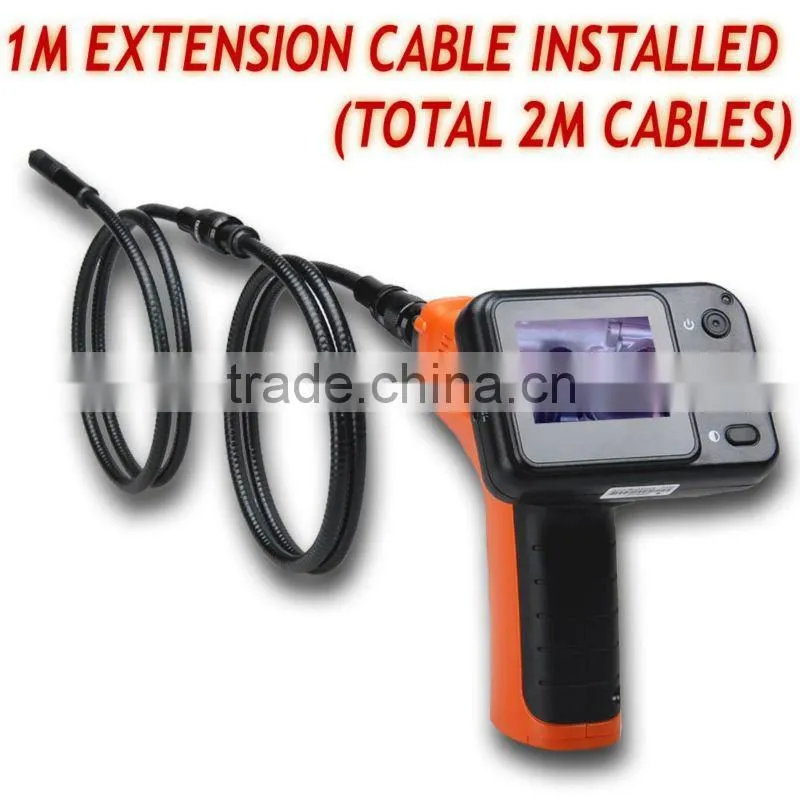

Optional extension cable (1 m / 3.3 feets)

Specifications

Camera

Imaging Sensor	CMOS
Total Pixels	640 x 480 (PAL) ; 640 x 480 (NTSC)
Horizontal View Angle	45 degree
Transmission Frequency	2468 MHz
Minimum Illumination	0 Lux
Modulation Type	FM (Frequency Modulation)
Bandwidth	18 MHz
Unobstructed Effective Range	10 m
Waterproof Capacity	IP67 (only for imager head)
Power Supply	4 x AA Alkaline Batteries (not included)
Camera Diameter	9 mm (0.35 inch)
Dimensions	approx. 186 (W) x 41 (D) x 145 (H) mm (7.32' x 1.61' x 5.71' inch) (flexible tube excluded)
Weight	approx. 173 g (0.381 lb)

Receiver

LCD Screen Type	2.36 inch (5.9 cm) Color TFT LCD
Effective Pixels	480 x 240
Video System	PAL / NTSC
Transmission Frequency	2468 MHz
Exterior Supply Voltage	DC 8 ~ 36 V
Consumption Current (Maximum)	490 mA
Video Output Level	0.9 ~ 1.3 V at 75 ohm
Receiving Sensitivity	≤ -85 dBm
Operating Temperature	-10 ~ 50 °C (14 ~ 122 °F)
Operating Humidity (Max)	15 ~ 85% R.H.
Dimensions	99 (L) x 69 (W) x 29 (D) mm (3.93' x 2.72' x 1.14' inch)
Weight	approx. 137.5 g (0.303 lb)
