TYPE |
ITEM |
UNIT |
BST-2-C technical data |

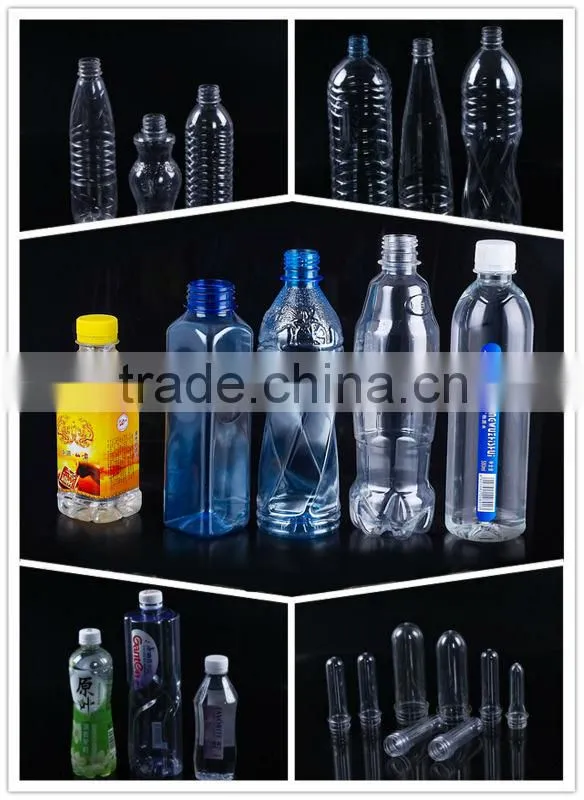

Container |
Product material |
/ |
PET |
Container volume |
L |
0.5-2.0 |
|
Theoretic output |
Psc/hr |
2500 |
|
Preform length |
M |
50-200 |
|
Max height of bottle |
M |
320 |
|
Molding |
Preform inner diameter |
mm |
15-60 |
Bottle diameter |
mm |
35-110 |
|
Max mold plate dimension (L × W) |
mm |
380 × 460 |
|
Max mold thickness |
mm |
200 |
|
Air compressor |
High pressure compressor |
M3/Mpa |
1.2/30 × 4set |
Locking force |
KN |
170 |
|
Mold opening stroke (adjustable) |
mm |
200 |
|
Low pressure compressor |
M3/Mpa |
3.0/10 × 1sets |
|
Air dryer |
M3/Mpa |
2.0/30 × 1sets |
|
Main machine electricity |
Power |
KW |
32 |
Voltage / frequency |
V/Hz |
380/50hz |
|
Machine size and weight |
Main machine (L × W × H) |
M |
6.0 × 1.9 × 1.8 |
Main machine weight |
T |
5 |
|
Conveyor (L × W × H) |
M |
1.4 × 1.1 × 1.85 |
|
Conveyor weight |
T |
0.4 |
|
High pressure compressor (L × W × H) |
Kg |
1.90 × 0.75 × 1.50 × 4sets |
|
Low pressure compressor (L × W × H) |
M |
1.85 × 0.75 × 1.50 |
|
High pressure air reservoir tank (D × H) |
M |
0.70 × 2.25/3.0 |
|
Air dryer (L × W × H) |
M |
0.85 × 0.50 × 0.95 |
|
Air filters |
Kg |
10 × 5pc |
|
Cooling water: cooling water recycling system can be used with its power of 8~10 liter per minute and 2~3 kilos water pressure | |||
Total power: 51.9 high pressure air volume (1m/min); low pressure air volume (1.2m/min) | |||
Safety |
Auto emergency alarm |
Safety inter-locking device |
|
The standard operation of blow molding machine include four steps as follows:
Step 1. Put the preform into preform container and the conveyer will take the preform to orientation units automatically.
Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.

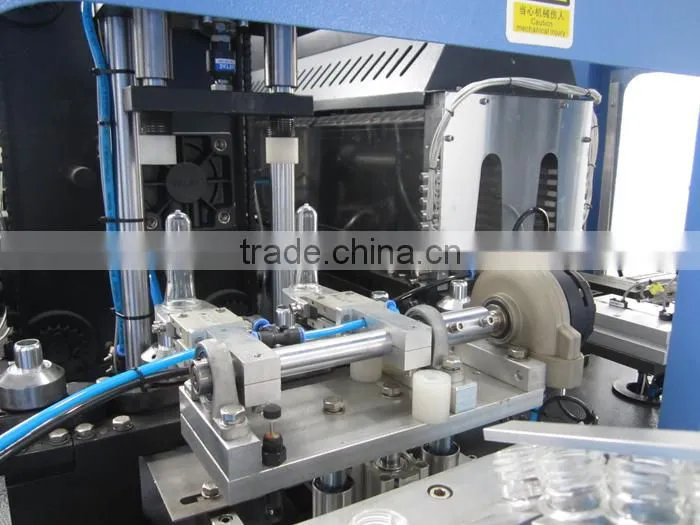

Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system
