Specifications
plastic bottle making machine1.cavity:6cavity
2.output:5500b/h
3.good price ,and best quality
plastic bottle making machine
A,Adopted advanced MCU control system, stable performance
B,Conveyor automatic feeding preform
C,Adopt infrared tubes heating, strong penetrating power, bottle preform rotation heating, circle revolution, heated evenly, fast and reliable.
D,The tubes of heating zone, reflex plate width and height can be adjusted to suit different structure of preform heating, and has automatic device of vent temperature, to ensure that constant temperature.
E,Each mechanical movement had safety self-lock device, when a process malfunction, the program will automatically switch to safe state
F,Each movement driven by cylinder, do not use oil pump, no pollution, low noise etc advantage,
G,The pneumatic system divide into action and blowing two parts, to satisfy the bottle blowing and action different pressure demand
Technical parameter
TYPE |
ITEM |
UNIT |
technical data |
Container |
Product material |
/ |
PET |
Container volume |
L |
0.05-2.0 |
|
Theoretic output |
Psc/hr |
5500 |
|
Preform length |
MM |
50-200 |
|
Max height of bottle |
MM |
320 |
|
Molding |
Preform inner diameter |
mm |
15-60 |
Bottle diameter |
mm |
35-110 |
|
Max mold plate dimension (L × W) |
mm |
380 × 460 |
|
Max mold thickness |
mm |
200 |
|
Air compressor |
High pressure compressor |
M3/Mpa |
1.2/30 × 3set |
Locking force |
KN |
170 |
|
Mold opening stroke (adjustable) |
mm |
200 |
|
Low pressure compressor |
M3/Mpa |
2.0/10 × 1sets |
|
Air dryer |
M3/Mpa |
2.0/30 × 1sets |
|
Main machine electricity |
Power |
KW |
30 |
Voltage / frequency |
V/Hz |
380/50hz |

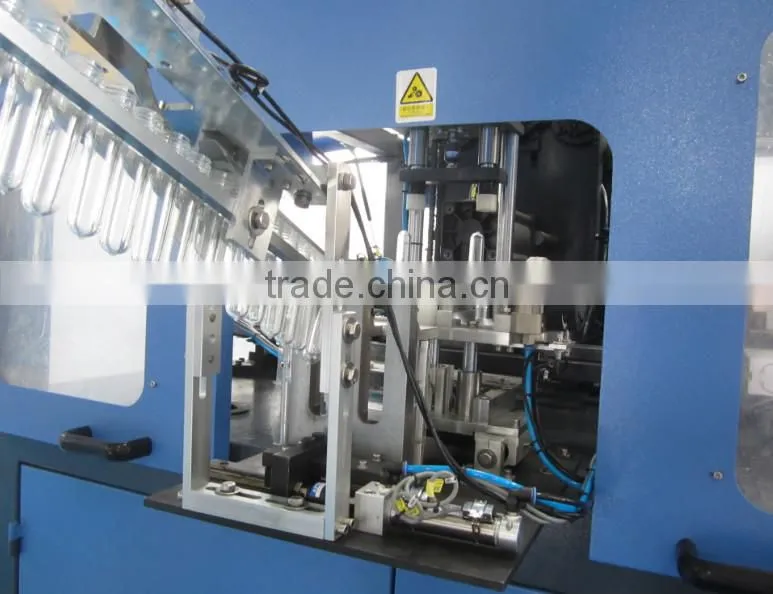

plastic bottle making machine

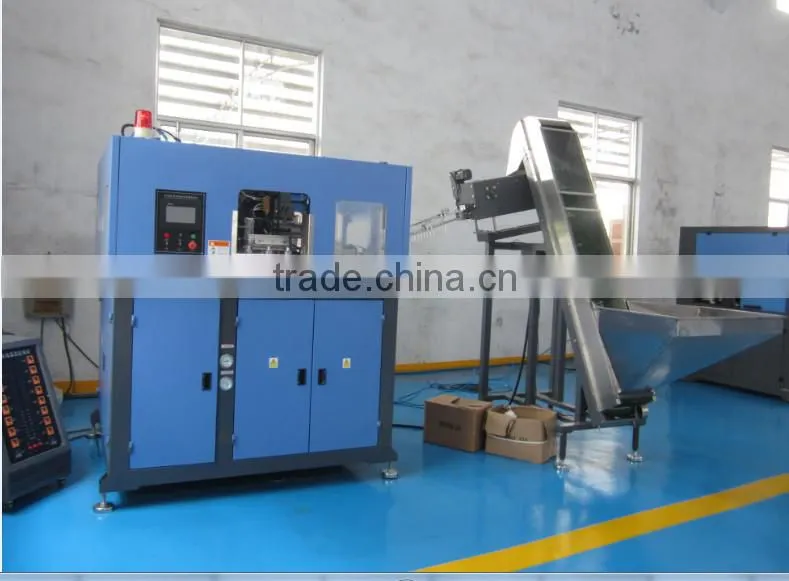

plastic bottle making machine
What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sle service offered, please get back to us if you got any questions.

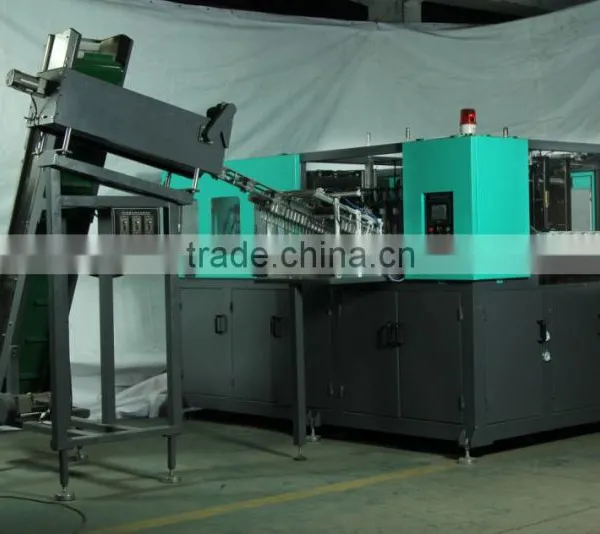

plastic bottle making machine
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
Welcome To Visit Zhangjiagang U Tech Machine Co.,Ltd!
