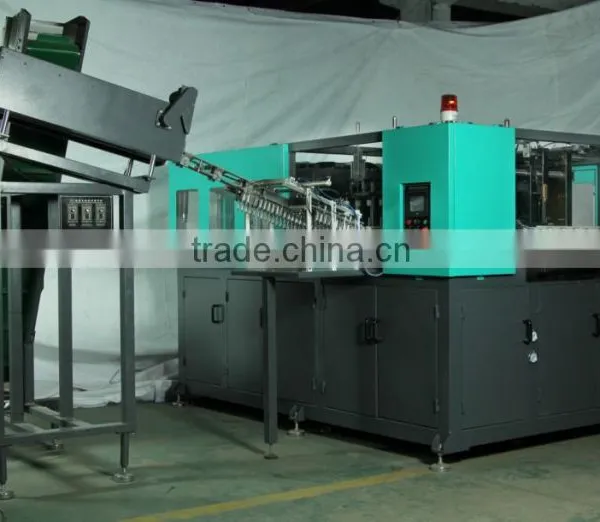

Help CenterSmall Bottle Automatic Pet Blow Molding Machine
Related Products
-
Plastic Bottle Making MachineUS$ 22,000 - 28,000MOQ: 1 Set -
Small Pet Bottle Making Machine PriceUS$ 22,000 - 28,000MOQ: 1 Set
-
Good Quality Low Price Plastic Bottle Making Machine PriceUS$ 22,000 - 28,000MOQ: 1 Set
-
2014 New Design Pet Blow Moulding Machine Price Quality ChoiceUS$ 22,000 - 28,000MOQ: 1 Set
-
Automatic PET Bottle Making MachineUS$ 22,000 - 28,000MOQ: 1 Set
Specifications
small bottle automatic pet blow molding machine1.cavity:6cavity
2.output:5500b/h
3.good price ,and best quality
small bottle automatic pet blow molding machine
A,Adopted advanced MCU control system, stable performance
B,Conveyor automatic feeding preform
C,Adopt infrared tubes heating, strong penetrating power, bottle preform rotation heating, circle revolution, heated evenly, fast and reliable.
D,The tubes of heating zone, reflex plate width and height can be adjusted to suit different structure of preform heating, and has automatic device of vent temperature, to ensure that constant temperature.
E,Each mechanical movement had safety self-lock device, when a process malfunction, the program will automatically switch to safe state
F,Each movement driven by cylinder, do not use oil pump, no pollution, low noise etc advantage,
G,The pneumatic system divide into action and blowing two parts, to satisfy the bottle blowing and action different pressure demand
Technical parameter
TYPE |
ITEM |
UNIT |
technical data |
Container |
Product material |
/ |
PET |
Container volume |
L |
0.05-2.0 |
|
Theoretic output |
Psc/hr |
5500 |
|
Preform length |
MM |
50-200 |
|
Max height of bottle |
MM |
320 |
|
Molding |
Preform inner diameter |
mm |
15-60 |
Bottle diameter |
mm |
35-110 |
|
Max mold plate dimension (L × W) |
mm |
380 × 460 |
|
Max mold thickness |
mm |
200 |
|
Air compressor |
High pressure compressor |
M3/Mpa |
1.2/30 × 3set |
Locking force |
KN |
170 |
|
Mold opening stroke (adjustable) |
mm |
200 |
|
Low pressure compressor |
M3/Mpa |
2.0/10 × 1sets |
|
Air dryer |
M3/Mpa |
2.0/30 × 1sets |
|
Main machine electricity |
Power |
KW |
30 |
Voltage / frequency |
V/Hz |
380/50hz |
