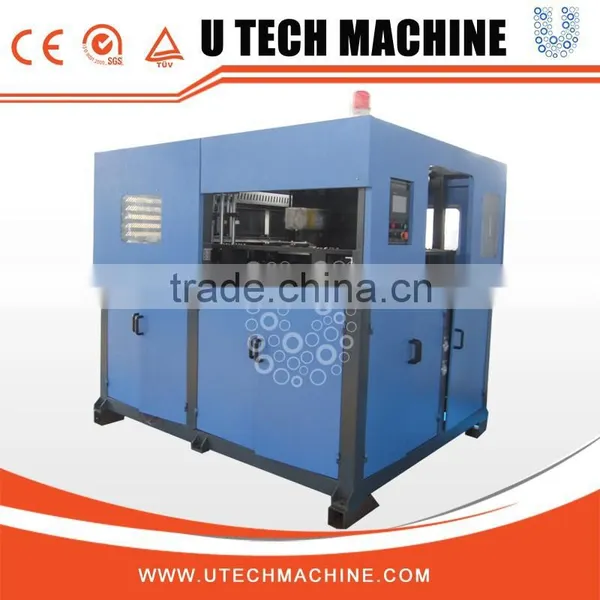

Stretch Blow Molding Machine
Descriptions:

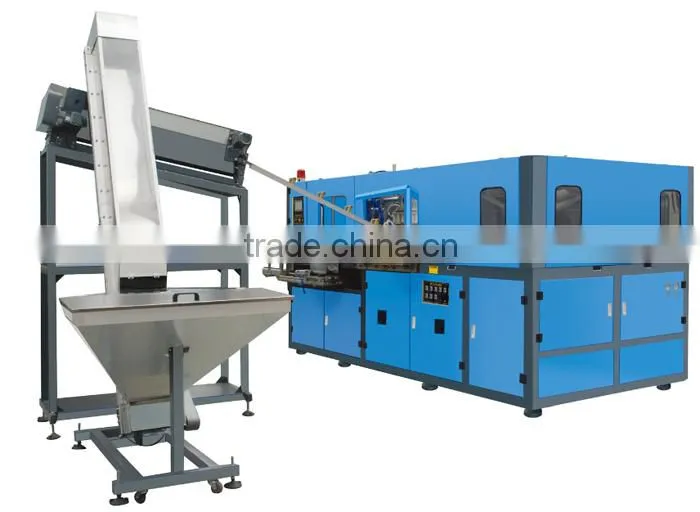

Full Automatic Stretch Blow Molding Machine Low Waste Full Automatic Stretch Blow Molding Machine Low Waste, BST series are fully-automatic pet stretch-blow molding machines(preheat). It has 3 to 16 cavities and the maximum capacity of the products is 2000mL. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6000BPH(6-cavity), 8000BPH(8-cavity), 12000BPH(12-cavity), 16000BPH(16-cavity).
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Specifications:
Item # & products |
Specification |
|
BST-2500 |
Description |
Technical Parameter |
|
Theoretical output |
2cavities(2500Pcs/Hr) |
|
Product Volume |
0.1-1.5L |
|
Diameter of Bottle Mouth |
Ø15-38mm |
|
Diameter of Bottle Body |
Ø40-90mm |
|
Height of Bottle |
280mm |
|
Max.Mold Thickness |
200mm |
|
Effective Area of Mold |
420×440mm2 |
|
Clamping Stroke |
150mm |
|
Clamping Force |
200KN |
|
Diameter of Stretch Pin |
Ø12mm |
|
Max.Stretch Stroke |
370mm |
|
Total Power |
22KW |
|
Overall Weight |
3.5 TON |
|
Working Pressure |
0.8-1.0MPa |
|
Blowing Pressure |
2.2-3.0MPa |
|
Cooling Water(6-10℃) |
0.3-0.5MPa |
|
Machine size |
2400*1750*1900mm3 |
Stretch Blow Molding Machine

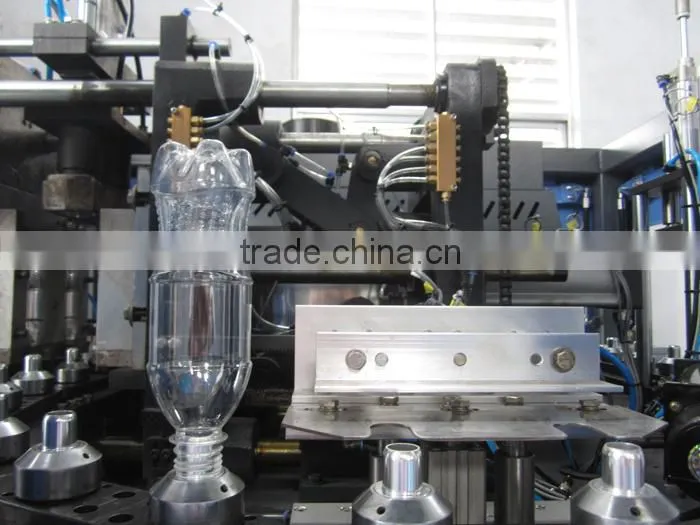

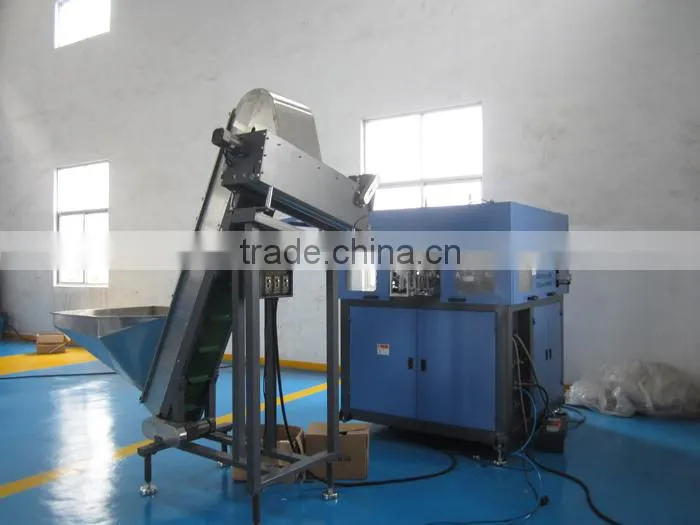

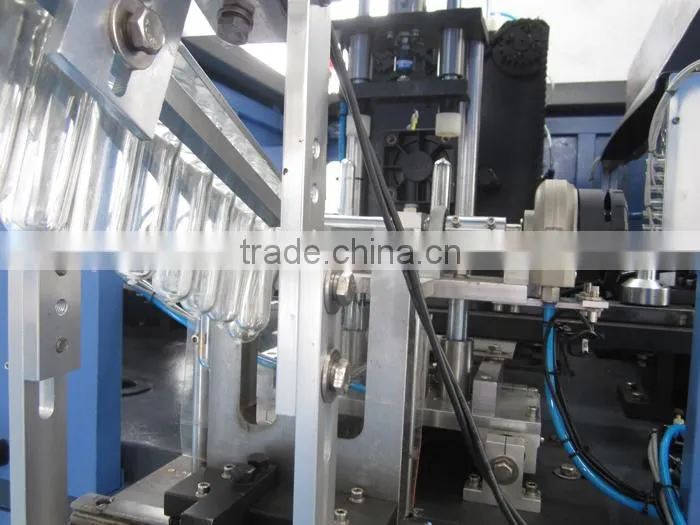

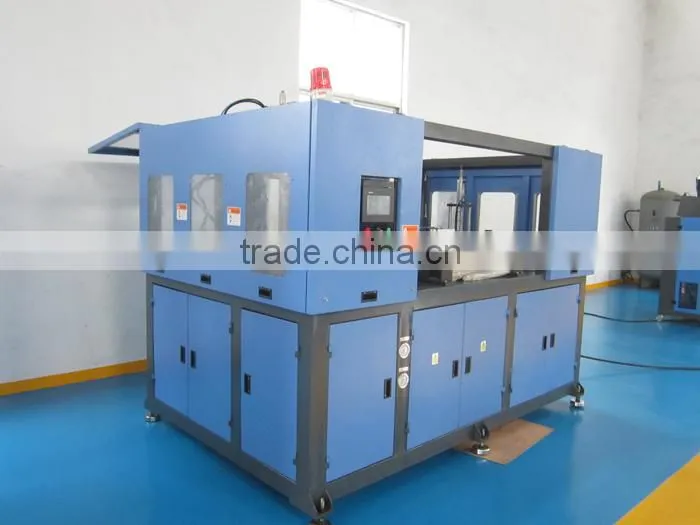

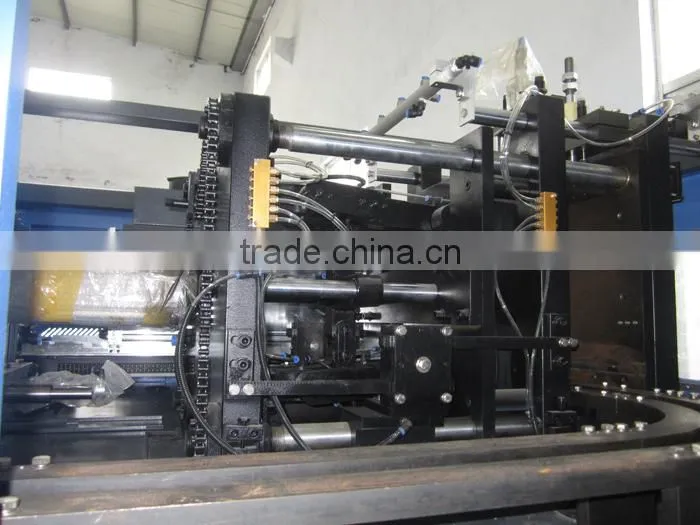

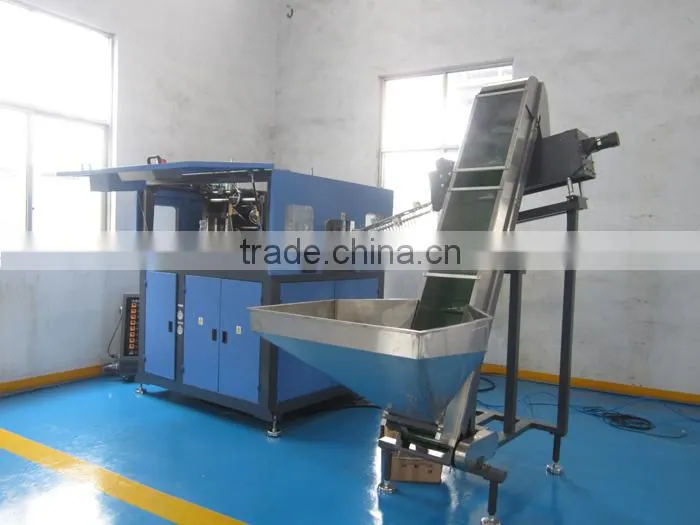

Photos details
Stretch Blow Molding Machine
Watch on video link copy below link to browser
/watch?v=UWKLDgpm-E0
