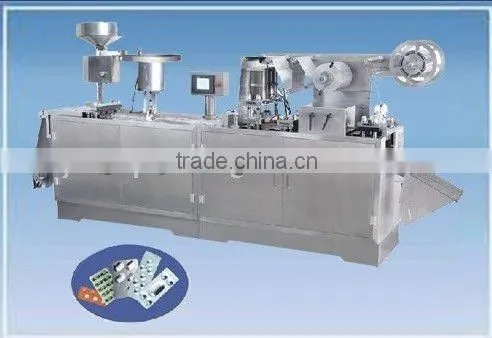

Double Aluminum Blister Packing Machine(pharmaceutical Machine)

Double Aluminum Blister Packing Machine(pharmaceutical Machine) thumbnail-1
Double Aluminum Blister Packing Machine(pharmaceutical Machine) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Medical, Other, Food, Medical, Machinery & Hardware
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Ruian Huayuan Packing Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Medical, Other, Food, Medical, Machinery & Hardware
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V 50HZ
Power 5.5KW
Place of Origin Zhejiang, China
Brand Name huayuan
Model Number DPP-140E
Dimension(L*W*H) 2050*530*1350mm
Weight 700KG
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. AL/AL Blister packing machine
2.touch sreen and PLC
3.GMP
4.SS316 and SS304

Applications:
The product uses the composite Aluminum film as material which has performance of best seal, moisture and light proofing, and uses special mould to cool-form. It is renewed packing equipment in pharmaceutical industry. The machine has two functions. When it changes mould, the machine can pack the object not only with Aluminum-Aluminum, but also with Aluminum-Plastic.

Performance and characteristic:





Main Technical Parameter:


MODEL 140E
Blanking frequency(sheets) 15-30
Sheet's quantity of one blanking(sheets) 2
Capacity:(sheets/hour) 1800-3600
Adjustable scope of feed travel:(mm) 100-130
Max Forming area and depth:(mm) PVC(For medicine): 1430×130×15
Capacity of air compressor(m3/min) ≥0.36
Power supply:(KW) 380V 50HZ 5.5KW
Wrapper specification(mm) Composite Aluminum film 140×(0.11-0.15)
PTP Aluminum film 140×(0.02-0.035)
Overall dimensions (mm) 2050×530×1350
Weight(kg) 700



  • Travel scope can be adjusted.
  • Mould is located by locating groove, so that its easy to change mould. Adopt cool-forming moulds.
  • Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
  • Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
  • The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machines life.
  • Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
  • Stepping motor drive wheel to grip and tow wrapper, Synchronize accurately
