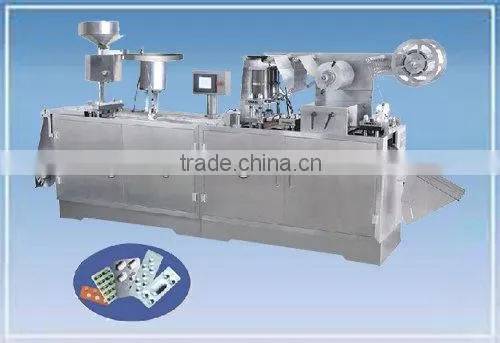

DPP-140E Double Aluminum capsule blister packing machine pharmaceutical line

Specifications

1.AL/AL Blister packing machine.
2.Control by PLC and touch screen.
3.Made of SS316.
4.Capacity:1800-3600sheets/min.

Applications:
The product uses the composite Aluminum film as material which has performance of best seal, moisture and light proofing, and uses special mould to cool-form. It is renewed packing equipment in pharmaceutical industry. The machine has two functions. When it changes mould, the machine can pack the object not only with Aluminum-Aluminum, but also with Aluminum-Plastic.

Performance and characteristic:





Main Technical Parameter:


MODEL		140E
Blanking frequency(sheets)		15-30
Sheet's quantity of one blanking(sheets)		2
Capacity:(sheets/hour)		1800-3600
Adjustable scope of feed travel:(mm)		100-130
Max Forming area and depth:(mm)	PVC(For medicine):	1430×130×15
Capacity of air compressor(m3/min)		≥0.36
Power supply:(KW)		380V 50HZ 5.5KW
Wrapper specification(mm)	Composite Aluminum film	140×(0.11-0.15)
	PTP Aluminum film	140×(0.02-0.035)
Overall dimensions (mm)		2050×530×1350
Weight(kg)		700



• Travel scope can be adjusted.
• Mould is located by locating groove, so that its easy to change mould. Adopt cool-forming moulds.
• Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
• Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
• The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machines life.
• Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
• Stepping motor drive wheel to grip and tow wrapper, Synchronize accurately
