Wpc Door Machinery

Wpc Door Machinery thumbnail-1
Wpc Door Machinery photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Panel
Plastic Processed:
PVC
Contact Supplier Request Quote Chat Now
Shandong Tongjia Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Panel
Plastic Processed PVC
Screw Design Double-screw
Automatic Grade Full-auto
Place of Origin Shandong, China
Brand Name Tongjia
Model Number JG-MSB80/156, JG-MSB92/188
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.wpc door machinery;
2.Reference to the latest international technology;
3.Double-screw extrusion;
4.CE and ISO certificate.



Product Description

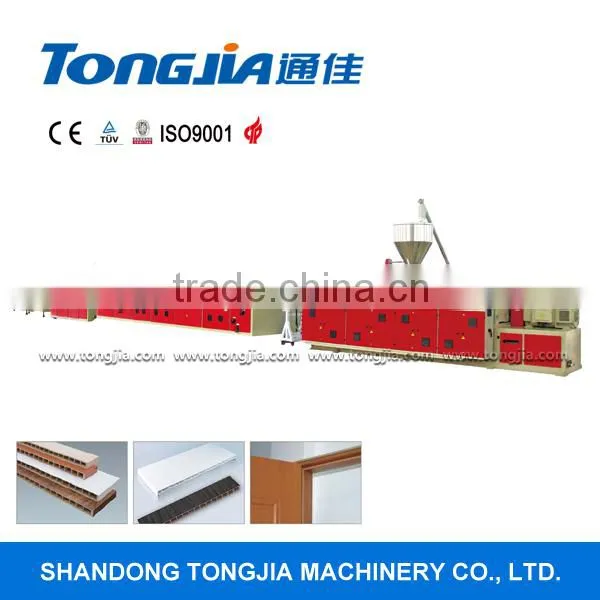

The wpc door machinery mixed PVC with plant fiber symmetrically.It adopts high-efficiency conical double-screw extruder with forcible cooling system to extrude and form. pvc door machinery



wpc door machinery

                wpc door machinery



                wpc door machinery



Characteristic of the wpc door machinery

1. Steady capacity and energy conservation. pvc door machinery

2.Special minxing material function and high plastify capacity of screw and barrel.

3.Large extrusion quantity and high-efficiency. pvc door machinery

4.Precise control and conwenient operation. pvc door machinery

5.It also can be installed with programmable computer control and realize whole line intelligentize.

6.Vaccum calibrating part uses large and forxed cooling system for guarantee the calibration of panel.



                wpc door machinery

            Note:The door panel forming machine. pvc door machinery

Main technical specification

Model   JG-MSB80/156 JG-MSB92/188
Screw dia. mm Ø80/Ø156 Ø92/Ø188
Screw quantity piece 2 2
Screw speed r/min 1-38 1-32.9
Main extruder power KW 55 110
Heating power(approx) KW 36 45
Extrusion output kg/h 150-350 300-500



Main technical specification of auxiliary machine

Model   BF600 BF1000
Max. product width mm 600 1000
Draw-off height mm 150 150
Draw-off force KN 50 50
Draw-off speed m/s 0-3 0-2.5
Total power of auxiliary machine KW 35 40
Cooling water consumption m3/h 9 12
Compressed air pressure Mpa 0.6 0.6

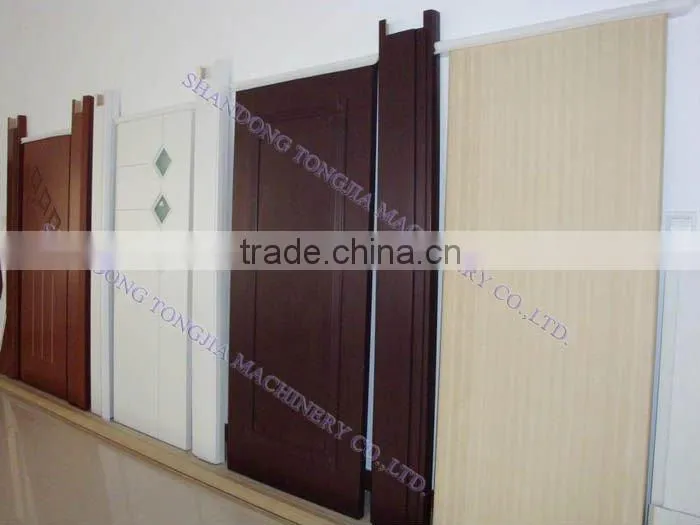

Application of the wpc door machinery

The wood plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse.It has been widely used in wide door, partition panel, construction template, base plate of container, furnish panel, etc. pvc door machinery



               wpc door machinery



               wpc door machinery

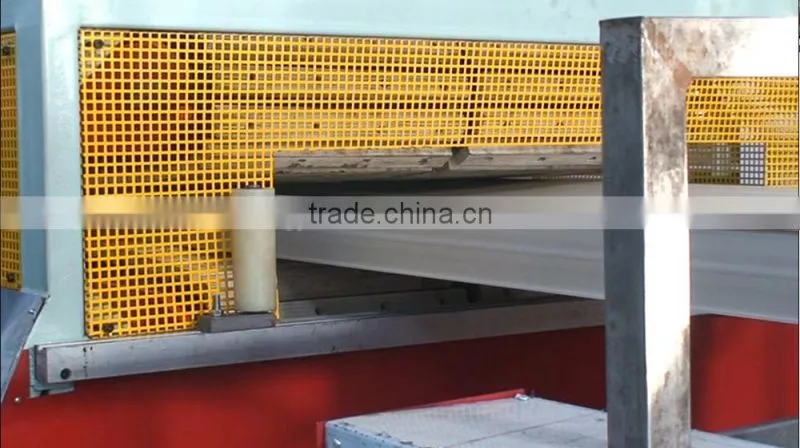

Product pictures

         wpc door machinery



         wpc door machinery



         wpc door machinery



Our Services



1.Any inquires will be replied in the first time. pvc door machinery

2.High quality products, competitive price, fast lead time. pvc door machinery

3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.

4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment. pvc door machinery

5.Our customer service staff will put your feedback to the technical staff in the first time ,timely solve your problem.



Company Information



Why choose us?

1.Our factory was founded in 1953 and we are narket-leader in this line in China. pvc door machinery

2.In the plastic machinery field,we have more than 20 years of relevant experience. pvc door machinery

3.Our products extend all over the national and over 60 countries and areas of the world. pvc door machinery

4.Our spare parts are brand components. pvc door machinery

5.Engineering team provide you with the most suitable model towards your products.

6.Technical training and service is the advantage of us. pvc door machinery

7.Tongjia Machinery hopes to create nice future with clients from home to overseas.

8.Welcome overses people to our factory site visits. pvc door machinery







FAQ



1.Payment term:T/T,L/C; pvc door machinery

2.Min order quantity:1 set or by negotiate with each other; pvc door machinery

3.Service:Provide overseas service; pvc door machinery

4.Tel:+86-537-2279166 2986622. pvc door machinery



Your reliable supplier

With rich manfacturing experice and full strict control of raw materials,production and products inspection,we can provide good quality and competitive prices,timely delivery and excellent services.We sincerely would like to establish long-team business relationship with you.pvc door machinery
