Specifications
1.The absorption of the latest international technology;2.Using double screw extruder;
3.Vacuum forming.

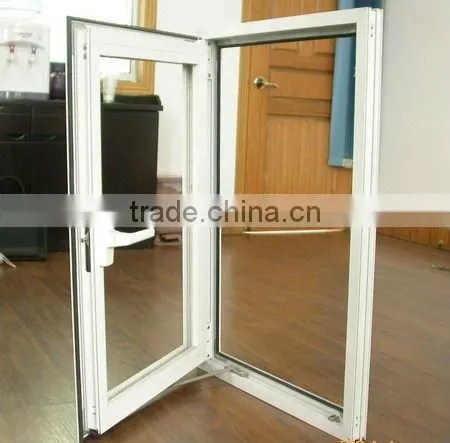

Plastic PVC doors and windows machine, which uses PVC plastic material made of doors and windows. Plastic PVC doors and windows machine has the wind resistance, waterproof, thermal insulation and other good characteristics.
PVC windows machine pvc windows machine
Characteristic of the pvc windows machine pvc windows machine
1 Wind resistance pressure: closed doors and windows in the wind pressure, ability does not damage and dysfunction.
2 Watertight: effect of external doors and windows closed in the rain at the same time, the ability to prevent leakage of rainwater.
3 Air tightness: external doors and windows closed to prevent the air permeability of ability. pvc windows machine
4 Insulation: there exists on both sides of the door or window air temperature conditions, the ability of a door or window heat transfer from high temperature to low temperature impedance side. The door or window insulation performance is expressed by its coefficient or transfer the heat transfer resistance. pvc windows machine
Main technical specification pvc windows machine
| Model | JG-YXSZ51/105 | JG-YXSZ65/132 | JG-YXSZ80/156 | |
| Screw dia. | mm | Ø51/Ø105 | Ø65/Ø132 | Ø80/Ø156 |
| Screw max.rotation | r/min | 40 | 34.7 | 38 |
| Main extruder power | KW | 15 | 37 | 55 |
| Barrel heating power(approx) | KW | 8 | 24 | 36 |
| Central height | mm | 1000 | 1000 | 1000 |
| Main products | Frame,Door leaf,Batten | Frame,Doorleaf | ||
| Screw heating and cooling | Conduction oil | |||
| Barrel heating and cooling | Electricity heater,Force cooling by air | |||
Main technical specification of auxiliary machine pvc windows machine
| Model | YF180 | YF240 | YF400 | |
| duct size | mm | 180 | 240 | 400 |
| Draw-off height | mm | 150 | 150 | 180 |
| Draw-off force | KN | 30 | 30 | 30 |
| Draw-off speed | m/s | 0-5 | 0-5 | 0-5 |
| Auxiliary machine's total power | KW | 30 | 30 | 35 |
| Cooling water consumption | m3/h | 6 | 6 | 9 |
| Compressed air pressure | Mpa | 0.6 | 0.6 | 0.6 |
Application of the pvc windows machine pvc windows machine

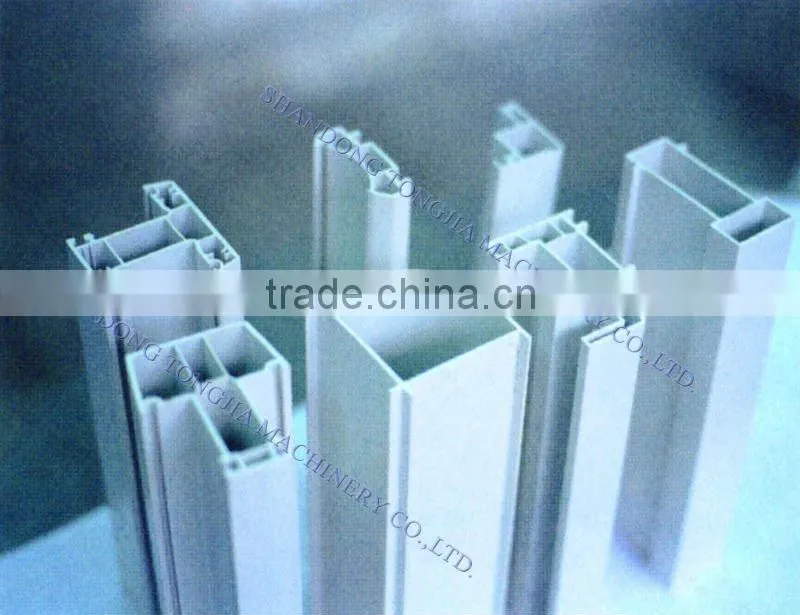

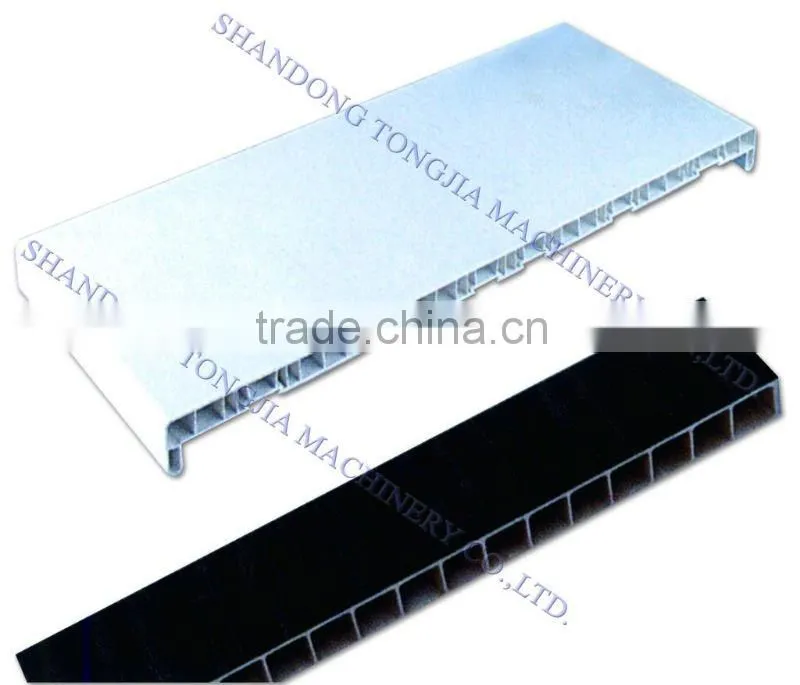

It can produce PVC door and windows profile,elbowboard,the hanging panel for outside wall,decoration panel,multi-hole wire-through pipe and other profile.It has been widely used in fields of PVC plastic door and windows,construction,decoration,etc.

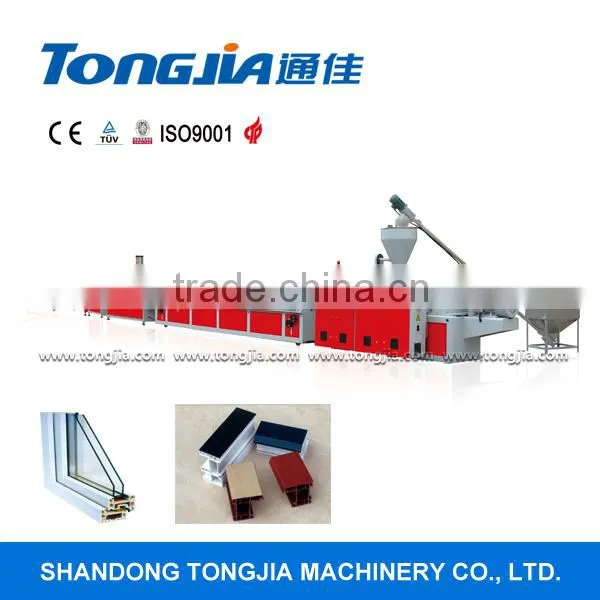

Product pictures pvc windows machine
1.Any enquiries will be repleied in the first time. pvc windows machine
2.High quality reasonable,competitive price,fast lead time. pvc windows machine
3.Our sales staff will be have a good communication with you,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service,our technical staff will be able to provide you with technical support,for you personally to overseas assembly and test equipment. pvc windows machine
5.Our customer service staff will put your feedback to the technical staff in the first time,timely solve your problem.
Why choose us?
1.Our factory was founded in 1953 and we are narket-leader in this line in China. pvc windows machine
2.In the plastic machinery field,we have more than 20 years of relevant experience. pvc windows machine
3.Our products extend all over the national and over 60 countries and areas of the world. pvc windows machine
4.Our spare parts are brand components. pvc windows machine
5.Engineering team provide you with the most suitable model towards your products.
6.Technical training and service is the advantage of us. pvc windows machine
7.Tongjia Machinery hopes to create nice future with clients from home to overseas. pvc windows machine
8.Welcome overses people to our factory site visits. pvc windows machine
1.Payment term:T/T,L/C;
2.Min order quantity:1 set or by negotiate with each other; pvc windows machine
3.Service:Provide overseas service; pvc windows machine
4.Tel:+86-537-2279166 2986622. pvc windows machine
Your reliable supplier
With rich manfacturing experice and full strict control of raw materials,production and products inspection,we can provide good quality and competitive prices,timely delivery and excellent services.We sincerely would like to establish long-team business relationship with you. pvc windows machine
