Specifications
1.PVC floor making machine;2.It is mixed by PVC,PP,PE,PS,etc with diffrent plant fibre;
3.CE and ISO certificate.
PVC floor making machine is the product of wood plastic profile.It is a new kind of construction and decoration material and formed by vacuum calibrator.It is used in driling,planing,nailing,sawing,jointing,printing and other construction method.
PVC floor making machine
Characteristic of the pvc floor making machine
1.JG-MSX series high-efficiency extrusion equipment specially used for wood plastic profile,with advantages of steady capacity and energy conservation.
2.Using international advanced CAD design software,38CrMoAIA alloy steel with superior quality and coating metal on surface,special and unique structure of screw and barrel. pvc floor making machine
3.Because of its green environment ptotection,waterproof,anti-corrosion,rot-resistence,ametabolic and good fire-retardant,it can be used after recycling.
4.It has been widely used in fields of floor,guard bar,tray,packing cases,partition noard,window and door sheath,skirting line etc.
pvc floor making machine
Main technical specification
| Model | JG-MSX51/105 | JG-MSX65/132 | |
| Screw dia. | mm | Ø51/Ø105 | Ø65/Ø132 |
| Screw quantity | piece | 2 | 2 |
| Screw speed | r/min | 1-40 | 1-38 |
| Main extruder power | KW | 15 | 37 |
| Heating power(approx) | KW | 8 | 24 |
| Output(approx) | kg/h | 60-150 | 100-250 |
pvc floor making machine
Main technical specification of auxiliary machine
| Model | YF180 | YF240 | |
| duct size | mm | 180 | 240 |
| Draw-off height | mm | 150 | 150 |
| Draw-off force | KN | 30 | 30 |
| Draw-off speed | m/s | 0-5 | 0-5 |
| Auxiliary machine's total power | KW | 19 | 30 |
| Cooling water consumption | m3/h | 6 | 7 |
| Conpressed air pressure | Mpa | 0.6 | 0.6 |
pvc floor making machine

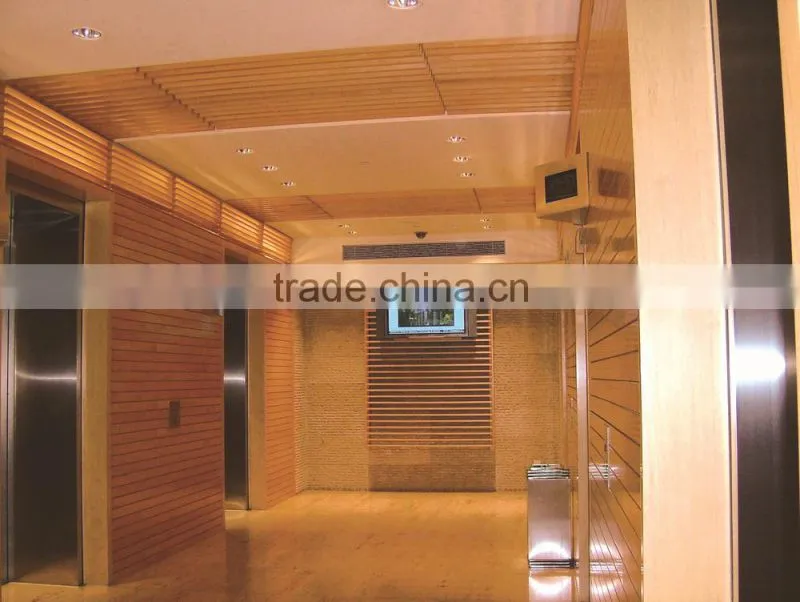

Application of photo products of the pvc fioor making machine
pvc floor making machine
pvc floor making machine
pvc floor making machine
Product pictures
pvc floor making machine
p
1.Any enquiries will be repleied in the first time. pvc floor making machine
2.High quality reasonable,competitive price,fast lead time. pvc floor making machine
3.Our sales staff will be have a good communication with you,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service,our technical staff will be able to provide you with technical support,for you personally to overseas assembly and test equipment. pvc floor making machine
5.Our customer service staff will put your feedback to the technical staff in the first time,timely solve your problem.
Why choose us?
1.Our factory was founded in 1953 and we are narket-leader in this line in China. pvc floor making machine
2.In the plastic machinery field,we have more than 20 years of relevant experience. pvc floor making machine
3.Our products extend all over the national and over 60 countries and areas of the world. pvc floor making machine
4.Our spare parts are brand components. pvc floor making machine
5.Engineering team provide you with the most suitable model towards your products.
6.Technical training and service is the advantage of us. pvc floor making machine
7.Tongjia Machinery hopes to create nice future with clients from home to overseas.
8.Welcome overses people to our factory site visits. pvc floor making machine
pvc floor making machine
1.Payment term:T/T,L/C; pvc floor making machine
2.Min order quantity:1 set or by negotiate with each other; pvc floor making machine
3.Service:Provide overseas service; pvc floor making machine
4.Tel:+86-537-2279166 2986622. pvc floor making machine
Your reliable supplier
With rich manfacturing experice and full strict control of raw materials,production and products inspection,we can provide good quality and competitive prices,timely delivery and excellent services.We sincerely would like to establish long-team business relationship with you.pvc floor making machine
pvc floor making machine
