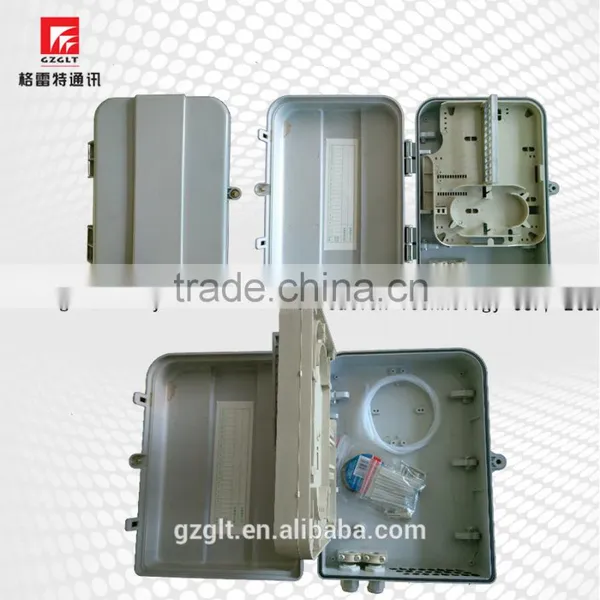

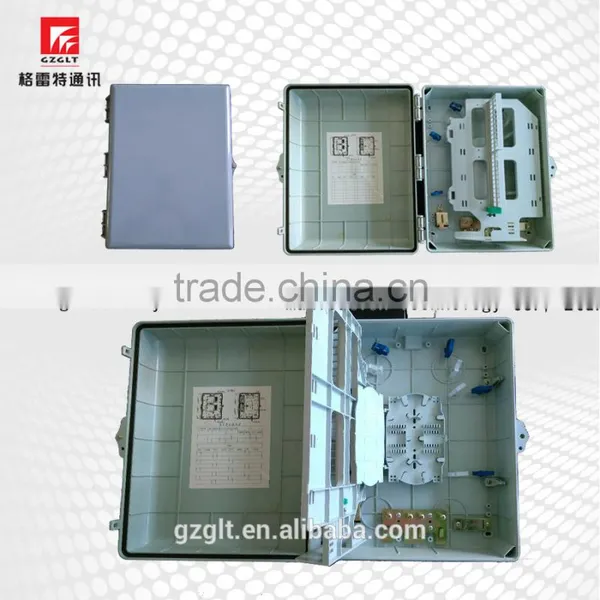

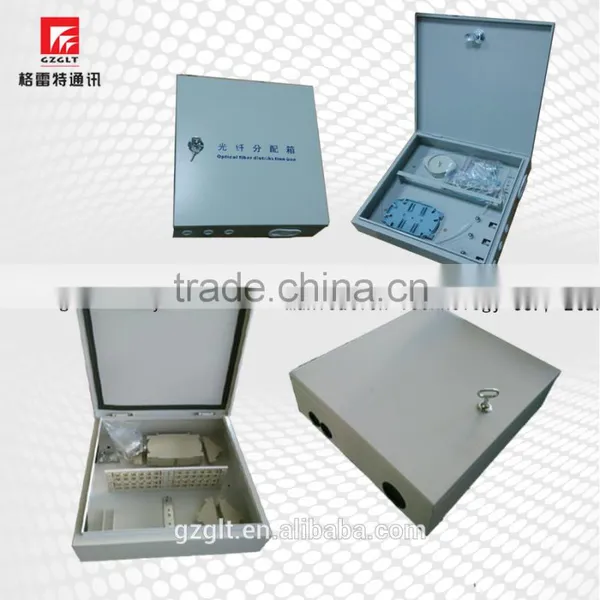

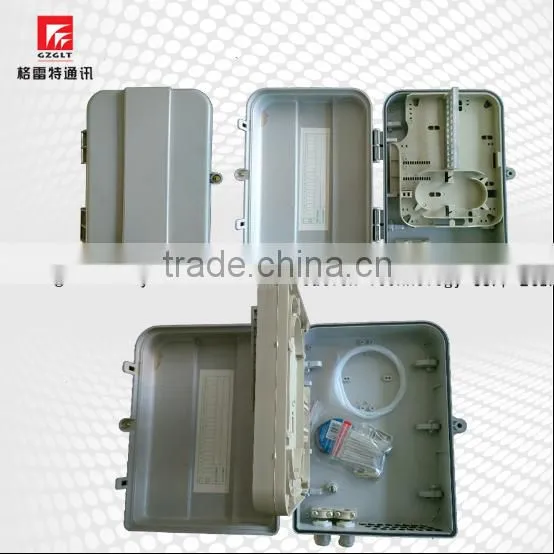

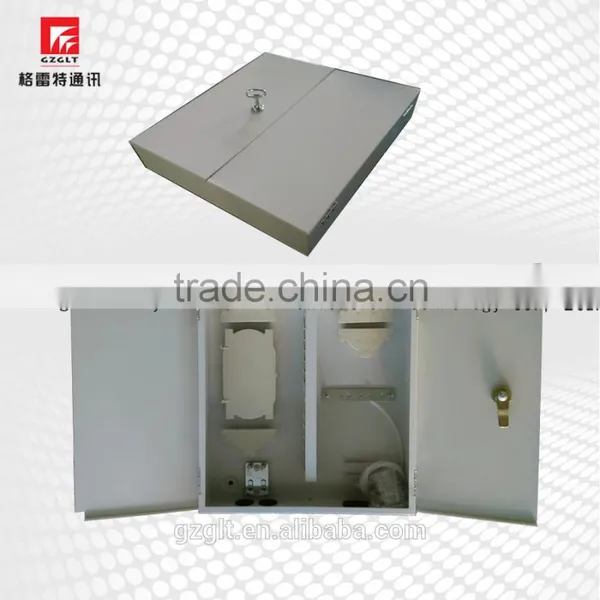

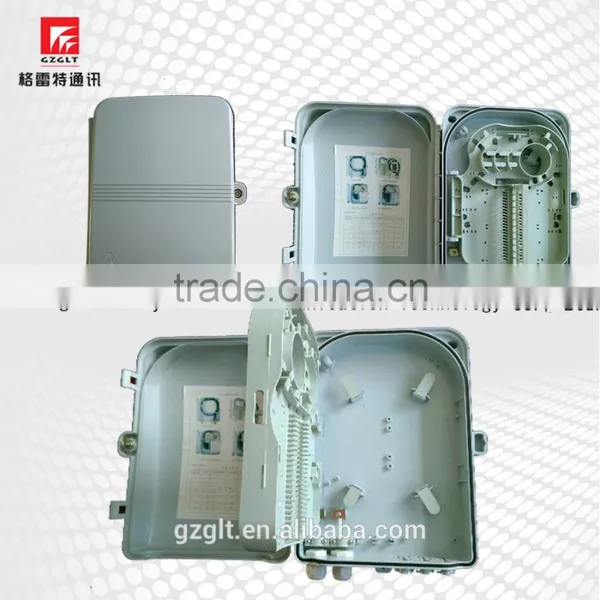

optical fiber distribution and splitting box ftth termination box
1.Widely used in FTTH access networks
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
•Product description of ftth fiber splitter terminal distribution box
Splitter distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box(also for surplus cables and adapters). It can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. It’s applicable for wall or pole mounted outside the building when cables already come to building in the FTTH project.
It also finishes straight through connection, Cable shall be spliced with indoor cable after stripping and coiling in the box,which finishes straight through connection, complying to traditional network transportation requirement.
The splitter distribution box can realize the functions of splitting,splicing,distribution and butterfly-like cable dispatch after cables to the floor in FTTH project. The bottom part is for incoming cable fixing,storage,splicing,and parking. The upper layer is for standard slot position for the installation of insert-style splitter. Cable strapping for splitter are optional.
•Product features of ftth fiber splitter terminal distribution box
l.Industry Standard User Interface, be made of high impact plastic.
2.Anti-UV, Ultra violet resistant and rainfall resistant.
3.Up to 24 FTTH drops.
4.Wall and pole mountable.
5.2 inlet ports, 24 outlet ports.
The splitting box suitable for optical fiber access network the armored cable and drop cable crossing .
The cabinet have wall mounted and pole mounted two install way , suitable for both indoor and
outdoor use; Through SC fiber optic adapters and fast connector to connect the armored cable and
drop cable .
Operating Temperature: -40 ℃ ~ +70 ℃;
Storage Temperature: - 40 ℃ ~ +70 ℃;
Operating Humidity: ≤ 90% (+30 ℃ pm);
Atmospheric pressure: 62Kpa ~ 106Kpa;
Insulation resistance: the grounding device Cabinet gold workpiece between the insulation resistance is not
less than 2X104MΩ/500V (DC);
Withstanding Voltage: the grounding device Cabinet gold between the workpiece resistance voltage not less
than 3000V (DC) / 1min;
Insertion Loss: IL ≤ 0.3dB (PC type); IL ≤ 0.3dB (APC);
Return loss: RL ≥ 40dB (PC type); RL ≥ 50dB (UPC); RL ≥ 60dB (APC);
Interchangeability: ≤ 0.2dB.
Guangzhou geleite Communication Science & Technology Co., Ltd was built in April, 1997. As a growing private hi-tech stock company, all of our staffs keep developing based on the management ideal of "regard customers as center, honest, creditable, more profit", now it has became a modern enterprise with high technology, strong production capacity, scientific management.
currently the products and services that company sales and offers are extended telecommunication, Unicom, CTT, electricity, China Mobile, nation defense, finance, education, stock, government and other large communication company, which receive widely reputation by clients.
The company owns over 3000 m2 factory area, with complete production facility, high accuracy processing, wealthy production and processing ability; exact testing equipment, complete testing project, complete office facility, achieve resource sharing and accelerate flow of information via intranet. The company set up functional department which can meet every management's demand plenty, it owns more than 200 well-trained management, operating and check staffs. All of the products developers and designers are of degree or above, close follow international advanced technology, scientific plot and control designing processing, adopt CAD to ensure our products' technology. The company continuous systemic training to ensure management and operating staffs' professional skill, so that meets the demand of enterprise manufacture
Company reception desk
Representatives of outstanding staff
Assemble
Install the Bunchy pigtail
Packing
Sheet metal workshop
Quality control workshop
Business license
Related qualifications
