Help CenterGLT Optical Unit Cabinet
Related Products
-
ODF Fiber Optic Distribution Frame (ODF) for 19" Rack Mount TDCE-OM05 for Server Cabinet, 96 CoresNegotiableMOQ: 1 Unit -
ODF Fiber Optic Distribution Frame (ODF) for 19" Rack Server Cabinet, 72 CoresNegotiableMOQ: 1 Unit
-
Fiber Optic Junction BoxNegotiableMOQ: 1 Unit
-
24 48 96 Cores Senior Custom UV-resistant Fiber Optic Distribution Box/distribution Cabinet/odb/ftth BoxesNegotiableMOQ: 1 Unit
-
ABS 2 In - 2 Out Horizontal/Inline Fiber Optic Joint ClosureUS$ 5.50 - 9.00MOQ: 100 Units
Packaging Details: 1pcs /carton
Delivery Detail: As per the quantity
19 inch Rack mounted ODF Unit box, Slidable type.
Rack-mount Fiber Optic Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
v Standard size, light weight and reasonable structure
v Splice tray inside changeable
v Can be used in 19''standard distribution frame
v Suitable for ribbon and single fiber
v Various panel plate to fit different adapter interface
v Front mark on the plate is easy for identification and operation
v 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
v Easy for management and operation
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
NO. |
Name |
Model |
Size(mm) |
Maximum capacity |
1 |

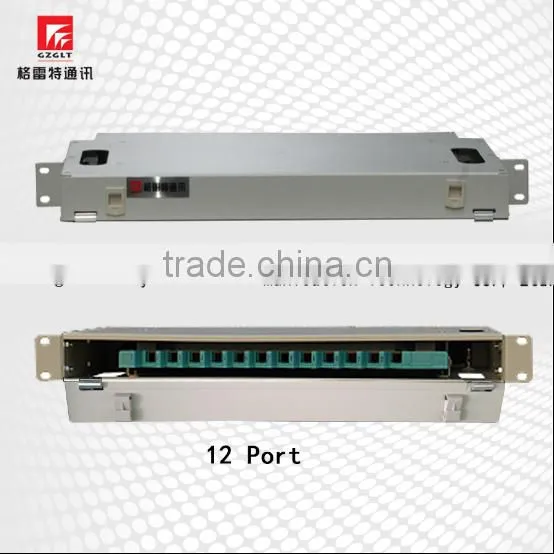

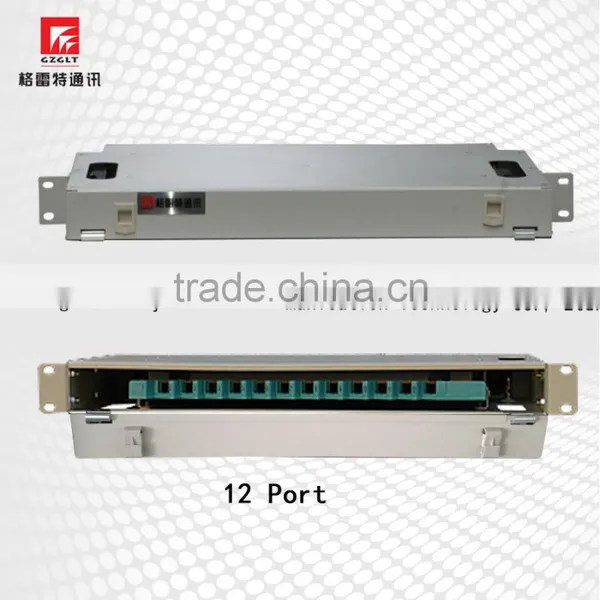

12 cores Optical unit cabinet |
GPX72-A12 |
1U 45*485*260 |
12 |
2 |

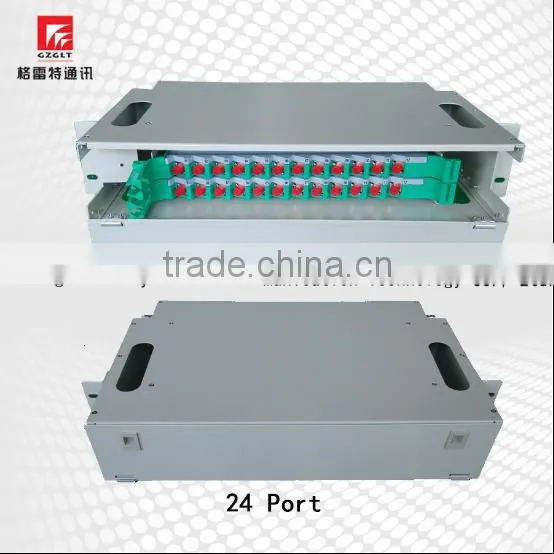

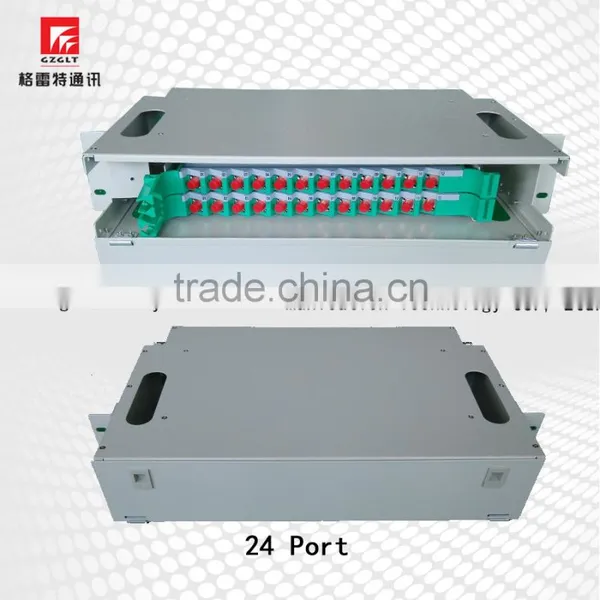

24 cores Optical unit cabinet |
GPX72-A24 |
2U 89*485*260 |
24 |
3 |

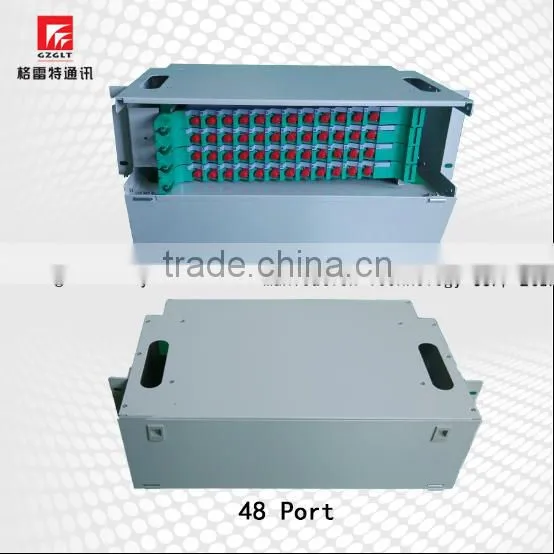

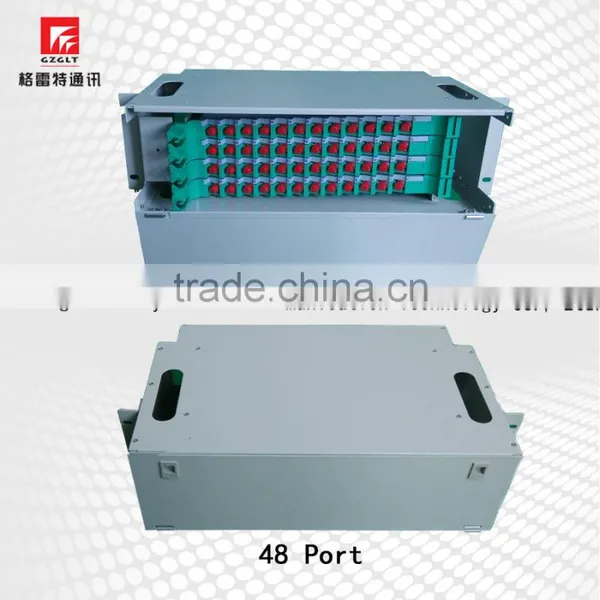

48 cores Optical unit cabinet |
GPX72-A48 |
3U 133*485*260 |
48 |
4 |

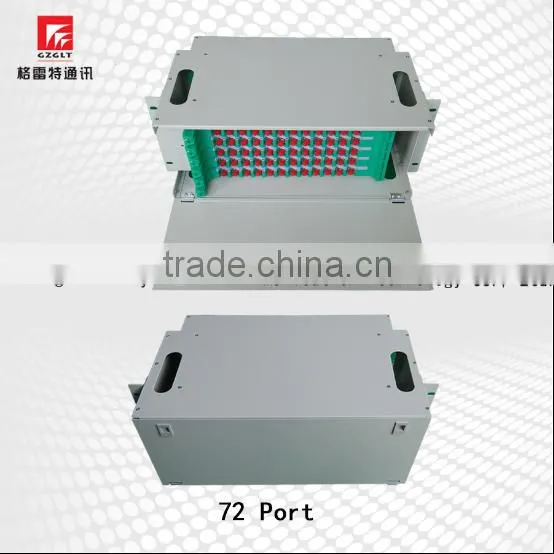

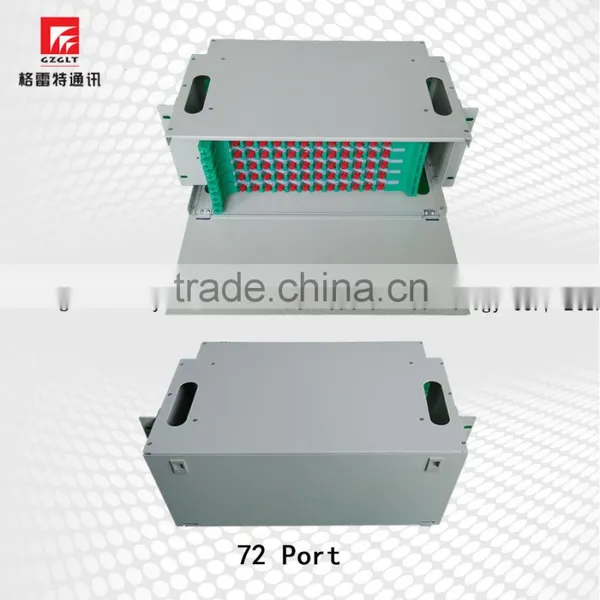

72 cores Optical unit cabinet |
GPX72-A72 |
4U 178*485*260 |
72 |
5 |

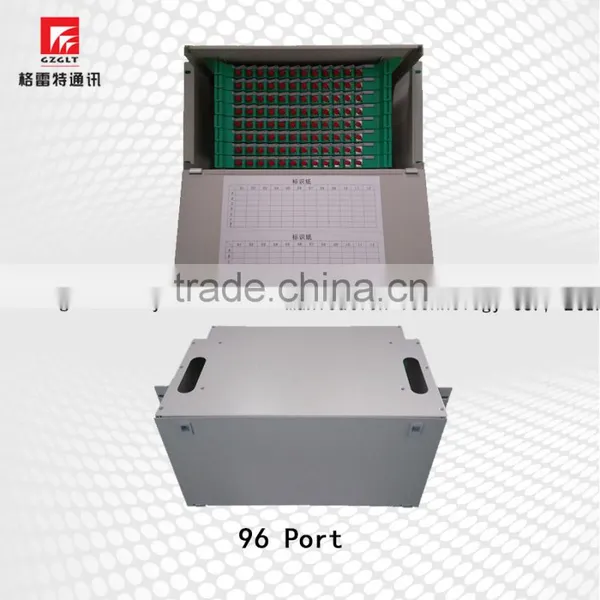

96 cores Optical unit cabinet |
GPX72-A96 |
|
96 |
6 |
144 cores Optical unit cabinet |
GPX72-A144 |
|
144 |
