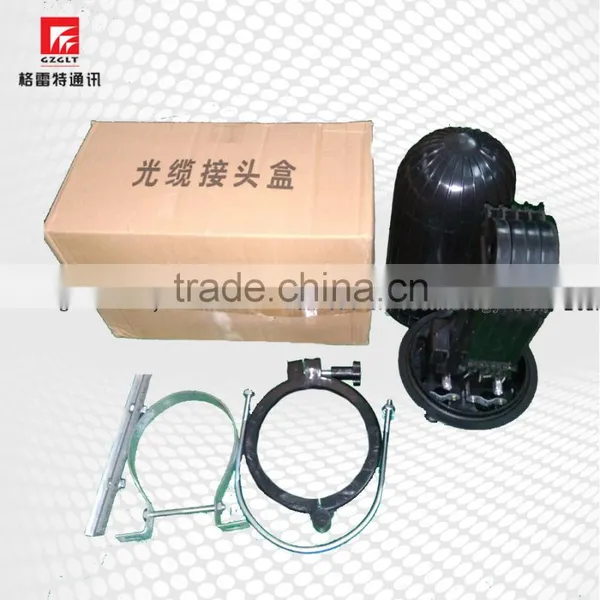

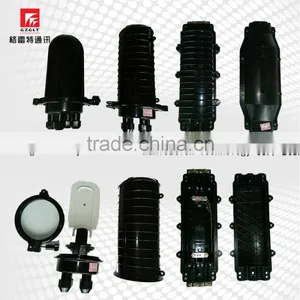

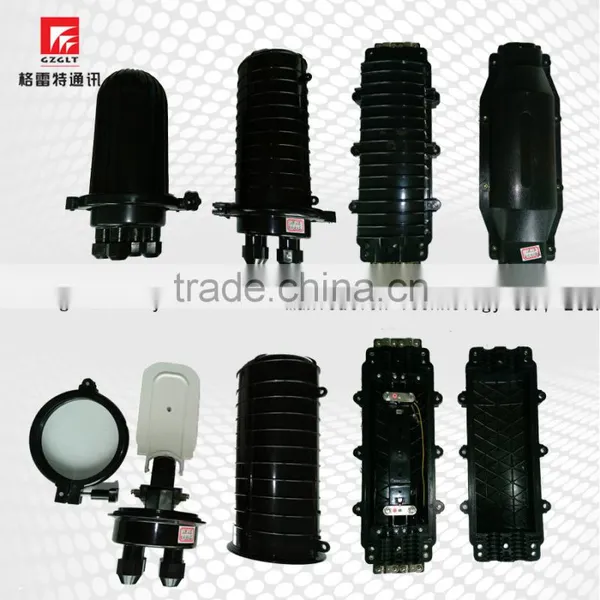

Fiber Optic Splice Closure Joint Box
Specification of Fiber Optic Outdoor Splice Closure No. YD/T814.1-2004 by MII
Specific Rules for Compulsory Certification of Distribution Equipment (VD.3)
Application
Widely used in aerial, duct places outdoor and can be directly buried underground
Features
•Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
•Made of material with good capability of outdoor environment resistance and high durability
•Having reliable cable fixing and grounding facilities
•Using self-adhesive isolative tape and glue belt to seal
•To use rotating method to connect fiber organizer cassette result in easy installation
•Mechanical design suitable for installing, fiber splicing storage and cable connection
•Compact and tight
Main Technical Parameters for fiber optic splice closure
•Applicable environment temperatures: -40°C~+65°C
•Air pressure: 70~106Kpa
•Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
•Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)
•Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours
•Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down
•Life expectancy: 25 years
NO. |
Name |
Model |
Box material |
High * width * depth |
maximum capacity |
01 |
Horizontal (buried) |
GPX72-JTO-A |
ABS/PC |
ABS 2 in 2 out |
12-72 cores |
PC 3 in 3 out |
12-144 cores |
||||
4 in 4 out |
12-288 cores |
||||
02 |
Vertical (barrel) Optical fiber splice box |
GPX72-JTO-B |
ABS/PC |
ABS 2 in 2 ou |
12-96 cores |
PC 3 in 3 out |
12-288 cores |
||||
4 in 4 out |
12-288 cores |
Fiber Optic Splice Closure Joint Box
Guangzhou geleite Communication Science & Technology Co., Ltd was built in April, 1997. As a growing private hi-tech stock company, all of our staffs keep developing based on the management ideal of "regard customers as center, honest, creditable, more profit", now it has became a modern enterprise with high technology, strong production capacity, scientific management.
currently the products and services that company sales and offers are extended telecommunication, Unicom, CTT, electricity, China Mobile, nation defense, finance, education, stock, government and other large communication company, which receive widely reputation by clients.
The company owns over 3000 m2 factory area, with complete production facility, high accuracy processing, wealthy production and processing ability; exact testing equipment, complete testing project, complete office facility, achieve resource sharing and accelerate flow of information via intranet. The company set up functional department which can meet every management's demand plenty, it owns more than 200 well-trained management, operating and check staffs. All of the products developers and designers are of degree or above, close follow international advanced technology, scientific plot and control designing processing, adopt CAD to ensure our products' technology. The company continuous systemic training to ensure management and operating staffs' professional skill, so that meets the demand of enterprise manufacture
Company reception desk
Representatives of outstanding staff
Assemble
Install the Bunchy pigtail
Packing
Quality control workshop
Business license
Related qualifications
General Packaging of Fiber Optic Splice Closure Joint Box: 1 piece/box, outer with carton/ as request
Shipping Policy: within 3 - 15 days after payment
If you are interested in Fiber Optic Splice Closure Joint Box, please feel free to contact us.
