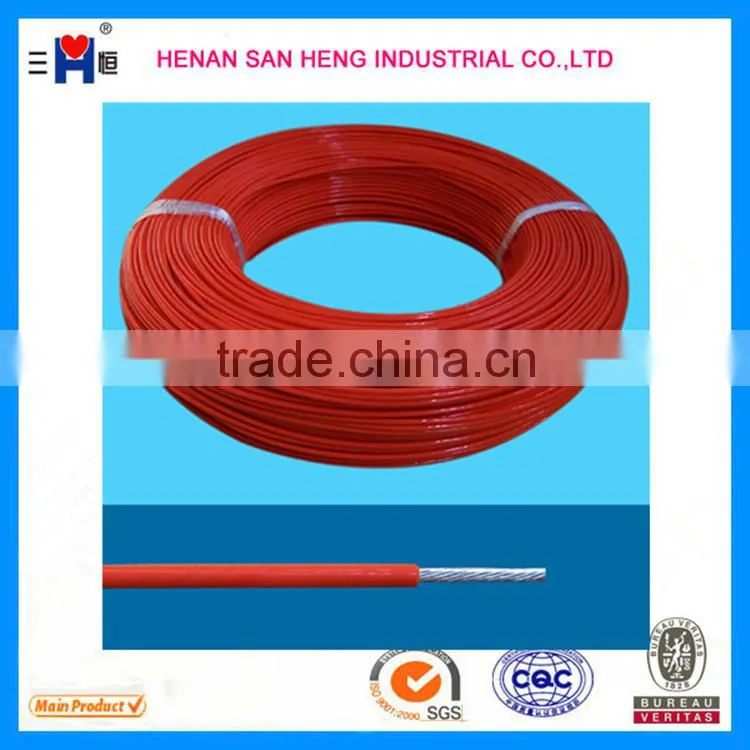

BV wire pvc insulated wire housing lighting wire made in china
- 100000 Meter / Meters per Month
- QINGDAO or as your requested.
- Credit Card
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Henan, China | Brand Name: | SANHENG | Model Number: | BV ,H05V-U,H07V-U |
Type: | Insulated | Application: | Other, house ,industrial ,lighting | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | PVC |
Product Description

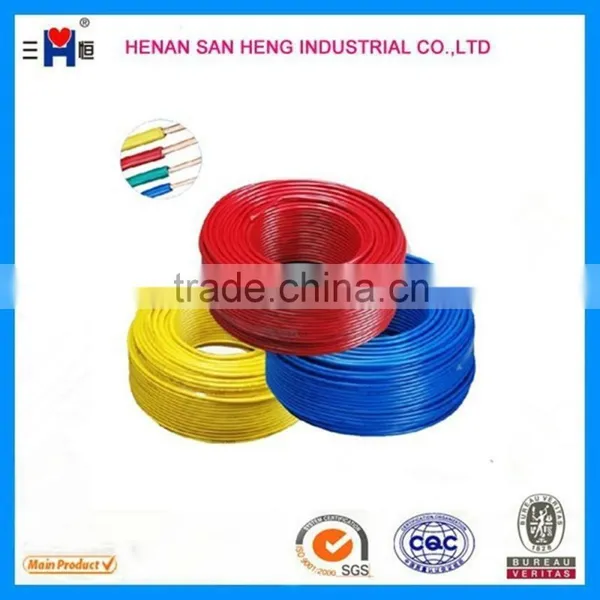

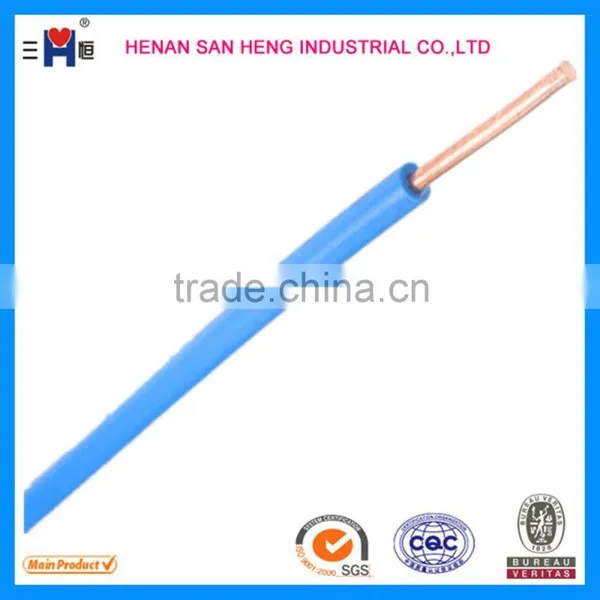

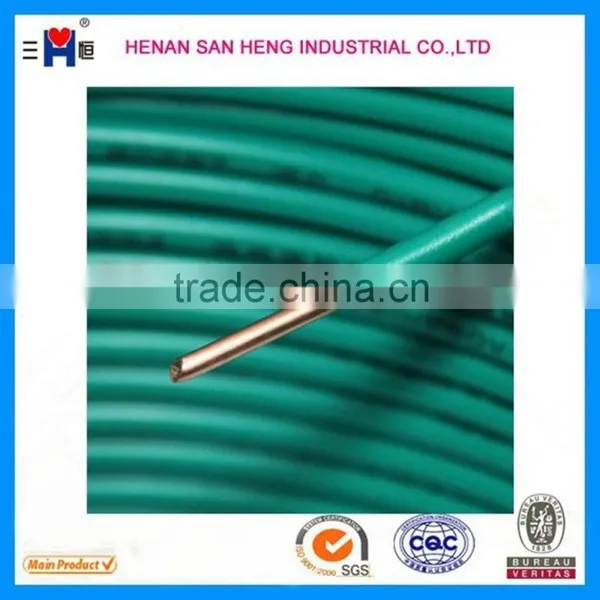

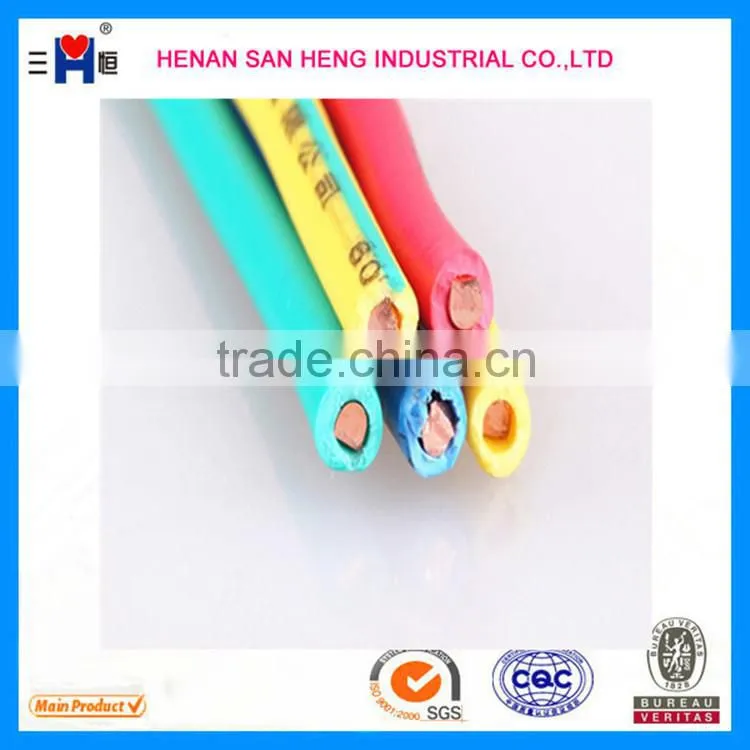

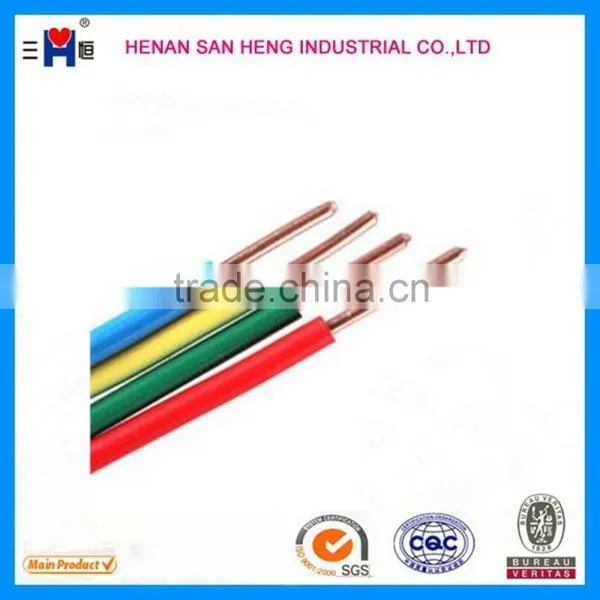

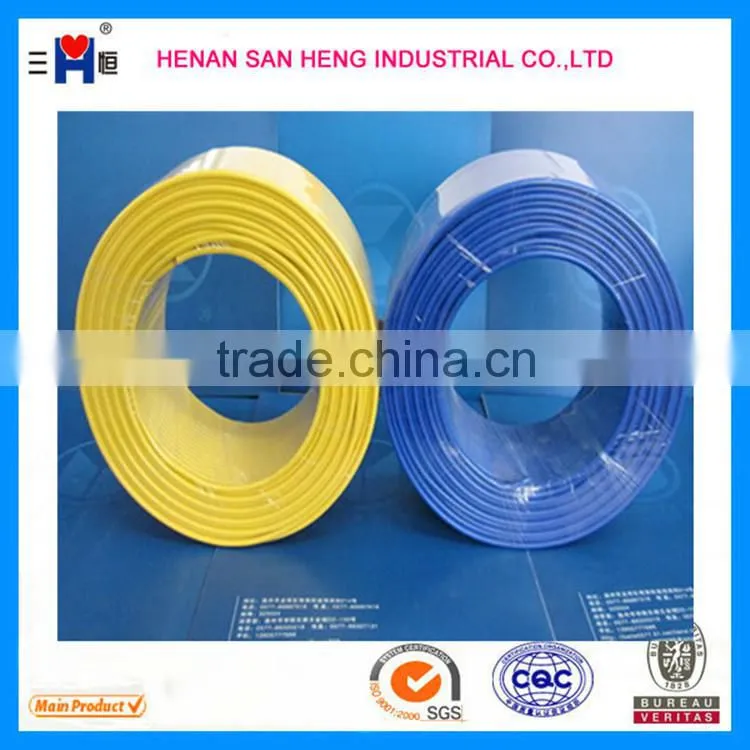

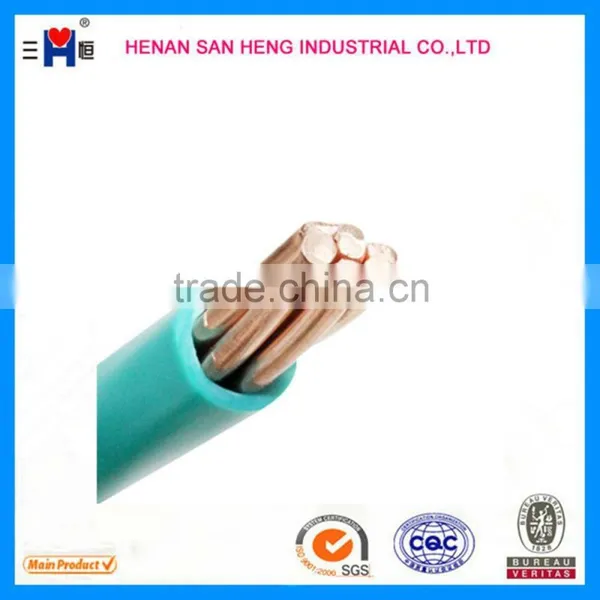

BV wire pvc insulated wire housing lighting wire made in china
h05V-U H07V-R- single solid copper core PVC insulation electrical wire
1. Cable is made by single soild copper wire,PVC insulation .
2. Conductor: 100% pure copper.
3. Range of application:this product is fit A.C rated voltage 450/750V
4.PVC type TI Ito BS-6746 rated temp7o °C; also available for 105 °C

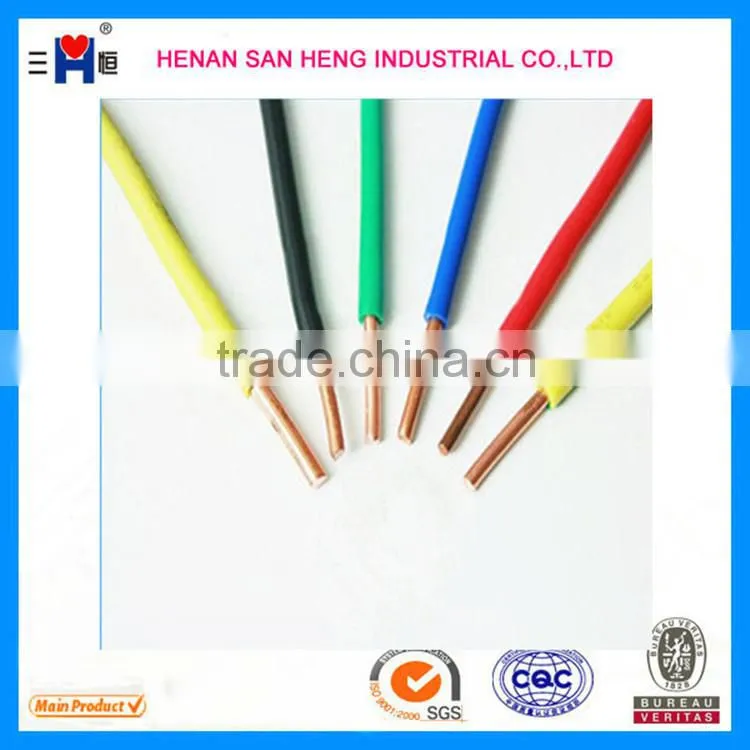

5.Colour: Red, Yellow, Blue, Black and Yellow Green
6.Application:Includes house lighting wire, factory wiring, switching panel
distribution boards& installation purposes. 7. We can also customize electrical wire and cable as your request!
8. Specification,Size and Technical Date:
BV 300/500V | |||
Nominal Section(mm2) | No.Dia. of Core(mm) | Max outer diameter(mm) | Conductor resistance at 20C(≤Ωkm) |
0.5 | 1/0.8 | 2.4 | 36.0 |
0.75(A) | 1/0.97 | 2.6 | 24.5 |
0.75(B) | 7/0.37 | 2.8 | 24.5 |
1(A) | 1/1.13 | 2.8 | 18.1 |
1(B) | 7/0.43 | 3.0 | 18.1 |
BV 450/750V | |||
1.5(A) | 1/1.38 | 3.3 | - |
1.5(B) | 7/0.52 | 3.5 | - |
2.5(A) | 1/1.78 | 3.9 | 11.8 |
2.5(B) | 7/0.68 | 4.2 | 11.8 |
4(A) | 1/2.25 | 4.4 | 7.39 |
4(B) | 7/0.85 | 4.8 | 7.39 |
6(A) | 7/0.85 | 4.8 | 4.91 |
6(B) | 7/1.04 | 5.4 | 4.91 |
10 | 7/1.35 | 7.0 | 3.08 |
16 | 7/1.70 | 8.0 | 1.91 |
25 | 7/2.04 | 10.0 | 1.20 |
35 | 7/2.52 | 11.5 | 0.868 |
50 | 19/1.78 | 13.0 | 0.641 |
70 | 19/2.14 | 15.0 | 0.443 |
95 | 19/2.52 | 17.5 | 0.320 |
120 | 37/2.03 | 19.0 | 0.253 |
150 | 37/2.25 | 21.0 | 0.206 |
185 | 37/2.52 | 23.5 | 0.164 |
240 | 61/2.25 | 26.5 | 0.125 |
300 | 61/2.52 | 29.5 | 0.100 |
We have a lot of inventory,so we can meet the requirements of the goods quantitty.
Company Profile
Sanheng industrial CO.,Ltd,is one of the most professional cable &wire producer under modern enterprise system in China,which was founded in 2000,integrating production and sales.Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerialbundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe,
Our advantages
1.Good cost-control system, with highly-competitive prices.
2.Strong and Professional R&D team to meet your specific needs.
3.Fast delivery &reliable products are always the reason why you choose us.
1.Q:Are you a factory or trading company?
A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A: Our factory has gained BV,SGS,CCC,ISO, certification.
The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, firstclass technicians, Elite team, high quality workers.
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard..
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
