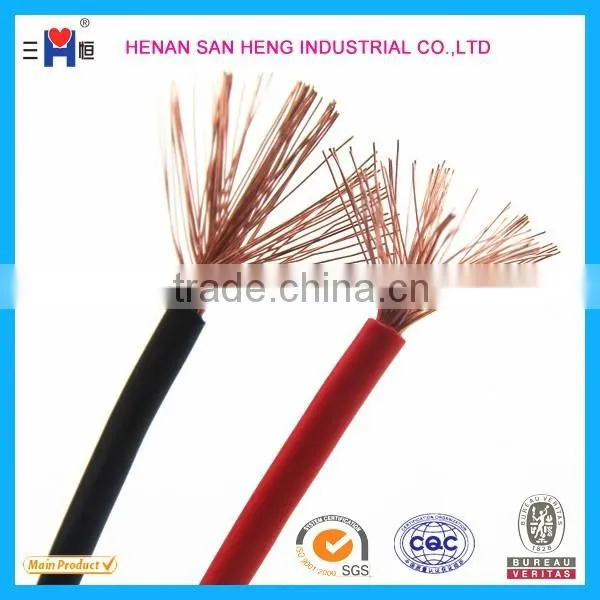

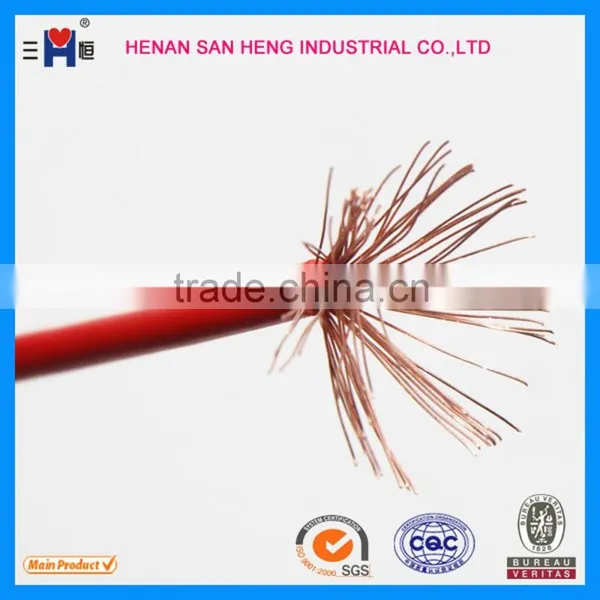

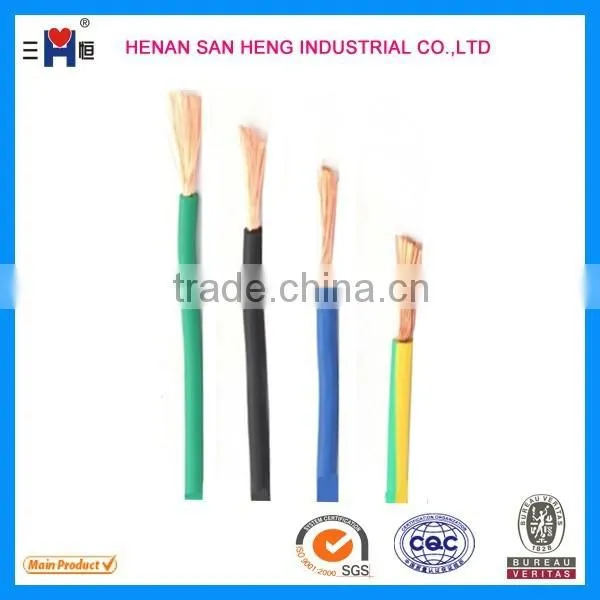

Copper Conductor PVC Insulation Electric Wiring Cable 2.5mm2
US$ 0.1 - 56
MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
San Heng
Model Number:
H05V-K
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or by your request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.5mm, 2.5mm, Flexible Wire H05V-K Single Core Electrical WireUS$ 1 - 80MOQ: 1 Kilometer -
Copper Conductor PVC Insulated Paralled Flexible WireUS$ 0.1 - 2.5MOQ: 1000 Meters
-
Single Core Flexible Electric Cable 1 C 2.5mm2US$ 0.1 - 56MOQ: 1 Meter
-
RVB Parallel Flat Speaker Cable/ WireUS$ 0.1 - 2.5MOQ: 5000 Meters
-
RV PVC Insulated Non-sheathed Flexible Electric WireUS$ 0.1 - 2.5MOQ: 9000 Meters
Place of Origin
Henan, China
Brand Name
San Heng
Model Number
H05V-K
Type
Insulated
Application
Other, Overhead, Residential/Lightning/Home
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Copper Conductor PVC Insulation Electric Wiring Cable 2.5mm2
( )
Application
Copper Conductor PVC Insulation Electric Wiring Cable 2.5mm2 is used in power installations of nominal voltage not exceeding 450/750V. This product is widely used in house wiring due to its simple structure and low cost.
Product Description
1) Rated voltage: 450/750V and below
2) Working temperature: 70°c
3) Sectional area: 2.5mm2
4) Conductor: solid or stranded copper
5) InsulatioN: PVC
6) Sheath: PVC
7) D.C. resistance at 20°c: 7.41Ω/km (solid copper), 7.41Ω/km (tinned copper)
Size:
| 60227IEC02(RV)450/750V | |||
| Nominal Area mm² |
Insulate thickness mm |
Biggest Diameter mm |
Least insulates resistance MΩ*KM |
| 1.5 | 0.7 | 3.4 | 0.01 |
| 2.5 | 0.8 | 4.1 | 0.009 |
| 4 | 0.8 | 4.8 | 0.007 |
| 6 | 0.8 | 5.3 | 0.006 |
| 10 | 1 | 6.2 | 0.0056 |
| 16 | 1 | 8.1 | 0.0046 |
| 25 | 1.2 | 10.2 | 0.0044 |
| 35 | 1.2 | 11.7 | 0.0038 |
| 50 | 1.4 | 13.9 | 0.0037 |
| 70 | 1.4 | 16 | 0.0032 |
| 95 | 1.6 | 18.2 | 0.0032 |
| 120 | 1.6 | 20.2 | 0.0029 |
| 150 | 1.8 | 22.5 | 0.0029 |
| 185 | 2 | 24.9 | 0.0029 |
| 240 | 2.2 | 28.4 | 0.0028 |
| 60227IEC06(RV)300/500V | |||
| 0.5 | 0.6 | 2.5 | 0.013 |
| 0.75 | 0.6 | 2.7 | 0.011 |
| 1 | 0.6 | 2.8 | 0.01 |
