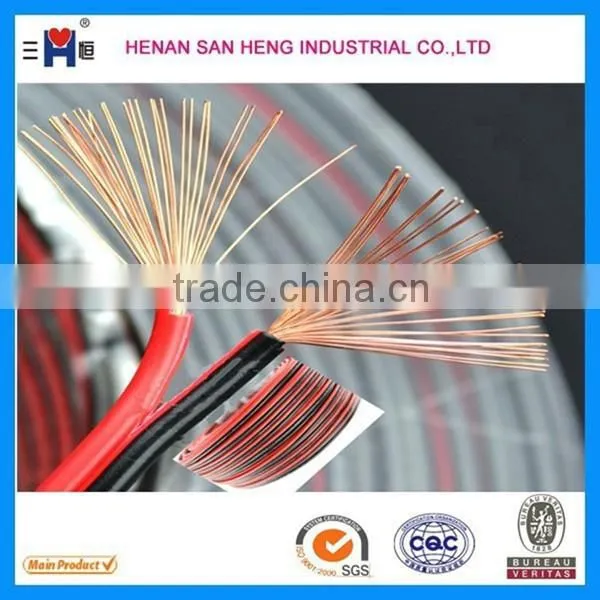

Copper conductor PVC insulated paralled flexible wire
1.Application:
(1). used for the fire alarm system, automatic fire detector circuit.
(2). for household appliances, small electric tools, instruments and power lighting line.
(3). for connecting amplifiers and audio equipment, radio transmission systems amplified by the amplifier of the audio signal processing.
2.Construction:
*annealed copper conductor
*PVC insulated
3.Features of RVB Wire:
(1). Excellent Insulating Ability for Safe Use
(2). High Reliability and Stability
(3). Strongly Water-proof and Liquid-Proof.
(4). Strongly Protect the Transmission against the Interference of Electromagnetic Wave. parallel twin pvc insulated electrical copper wire
(5). Multi-Strands Conductor Design for High Performance.
(6). Color in White, yellow, blue, green, Black or as per Your Requirements
(7). Rating temperature:75°C
(8). Nominal voltage:300V/500V

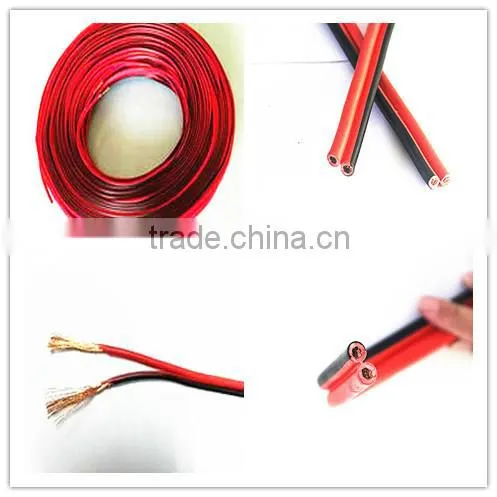

RVB parallel flat speaker cable/ wire
Nominal section |
Core structure/diameter(mm) |
Max diameter(mm) |
Reference weight(kg/km) |
|
2*0.3 |
2*16/0.15 |
3.5 |
21.4 |
|
2*0.4 |
2*23/0.15 |
4.2 |
24.5 |
|
2*0.5 |
2*28/0.15 |
4.8 |
51.8 |
|
2*0.75 |
2*42/0.15 |
6.4 |
74.1 |
|
2*1.0 |
2*32/0.20 |
8 |
12.4 |
|
2*1.5 |
2*15/0.25 |
9.6 |
47.6 |
|
Conductor AWG Size |
Conductor Square meter (mm2) |
Conductor Diameter |
Overal 0iameter |
|
22 AWG |
2 * 0.5 |
28 * 0.15 |
2 * 4 |
|
20 AWG |
2* 0.75 |
42 * 0.15 |
2.2 * 4.4 |
|
18 AWG |
2 * 1.0 |
32 * 0.2 |
2.5 * 5 |
|
16 AWG |
2 * 1.5 |
48 * 0.2 |
3 * 6 |
|
12 AWG |
2 * 2.5 |
49 * 0.25 |
4.5 * 9 |
|
10 AWG |
2 * 4.0 |
56 * 0.3 |
5.5 * 11 |
|
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on 3C, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
Our packing and shipping
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
<
