cca copper aluminum enamelled magenet winding litz wire
Our Advantages:
1)-100000 square meters work shop area.
2)-20 Years manufacturing history.
3)-Professional QC team consisted of 20 experts.
Specifications
Conductor:aluminum
Diameter: 0.2-8.0mm
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
Certification: SGS, iso9001, iso14001
Product Features
Perfect test performance: High breakdown voltage, good solvent/heat resistance.
Good wear-resistance film: Vertical enamelling technology and ELANTAS insulation paint.
Wide range of choices: We provied different sizes/class products which can meet various needs.
Satisfactory usability: Suitable for high-speed automated routing winding.
Test Report for reference
Name |
winding wire |
||
Type |
QZXYL-2/180 |
||
Diameter |
2.40mm |
||
Standard |
IEC60317-15 |
||
Test Item |
Unit |
Technical Requirement |
Test Result |
Appearance |
|
bright and clean, Uniform color, |
Ok |
Overall Diameter |
mm |
<2.518 |
2.483 |
Conductor Diameter |
mm |
±0.024 |
2.402 |
Thickness of insulation film |
mm |
>0.079 |
0.081 |
resistance |
Ω/m |
<0.006354 |
0.006069 |
Elongation |
|
>15% |
27% |
winding test |
|
no cracking |
Ok |
Tensile Test |
|
15% No cracking |
no cracking |
Peel twist |
|
insulation film Without losing adhesion |
Ok |
Jerk test |
|
insulation film Without losing adhesion |
Ok |
Resistance to heat shock |
C |
200C insulation film no cracking |
Tensing 15% half an hour, no cracking |
Resistance to solvent |
|
Standard solvent "H" Pencil |
2H is ok |
Breakdown Voltage |
KV |
5.0KV |
14.8,14.8,14.9,14.2,14.8 |
package |
|
Meet the export standards |
Ok |
Quality Control Result |
|
Ok |
|

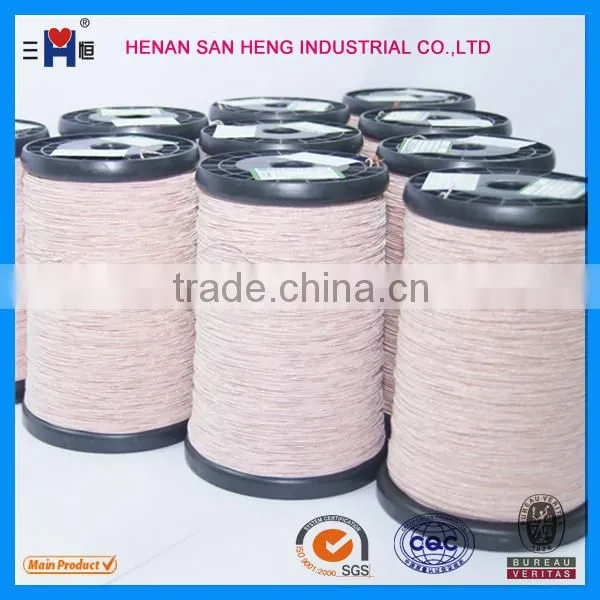

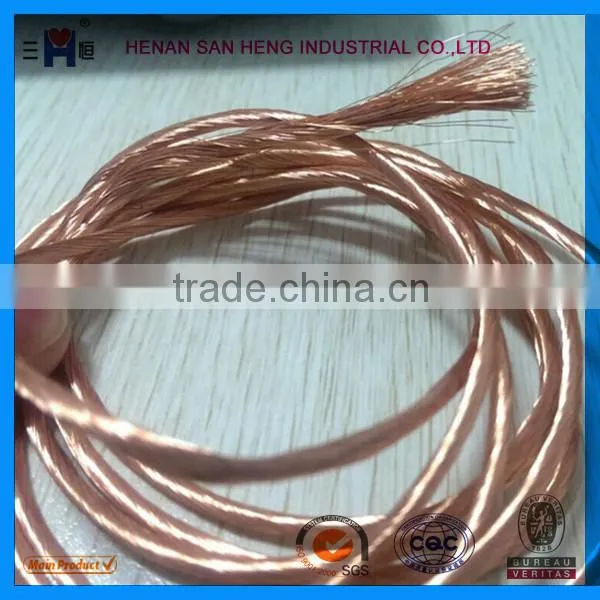

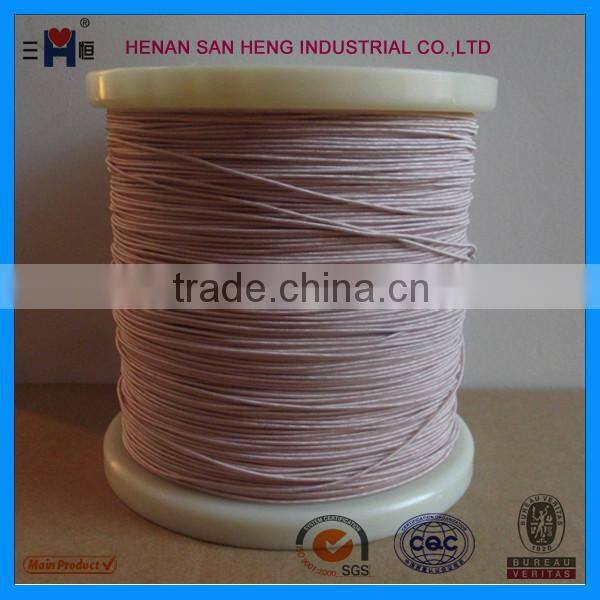

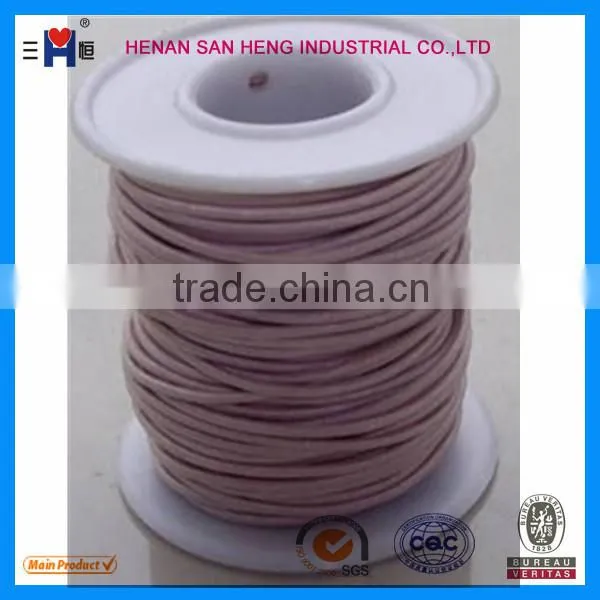

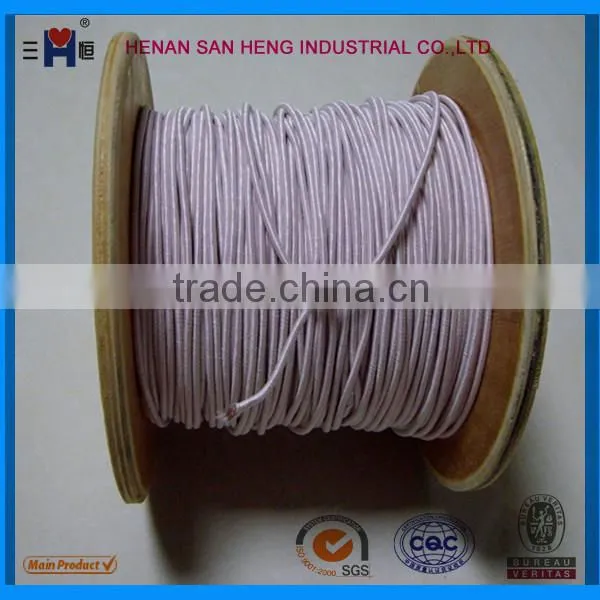

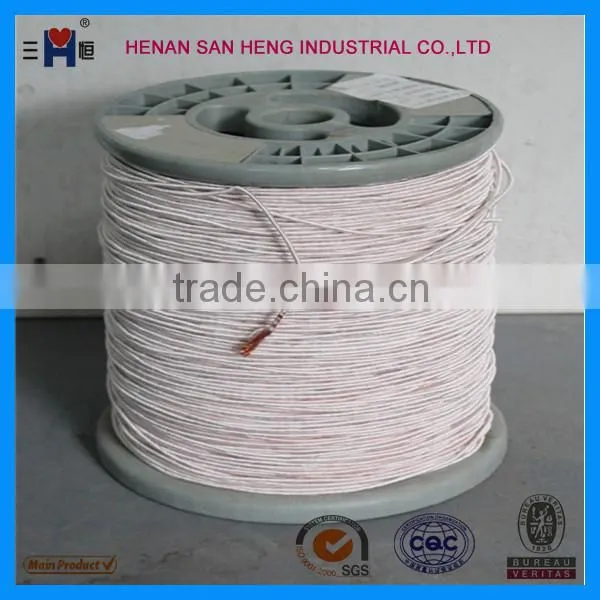

Pictures of cca copper aluminum enamelled magenet winding litz wire

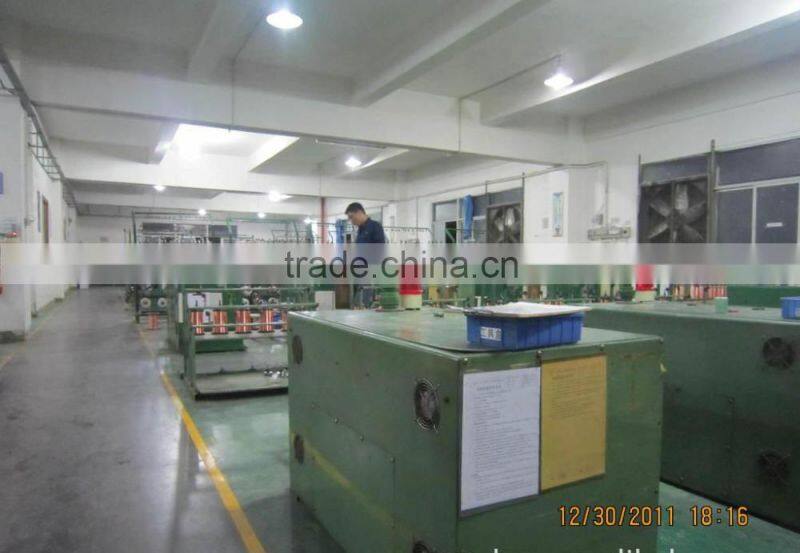

1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
This is cherry. If you have any problem of cca copper aluminum enamelled magenet winding litz wire , please feel free to contact me. Let me know your needs! RIGHT NOW ! ACTION !
