Specifications
1.enameled enamelled aluminium insulated wire2.Thermal class:130/155/180/200/220
3.Standard:NEMA
enameled enamelled aluminium insulated wire
1. Feature of Insulated wires
1)High temperature resistance
2)Chemical corrosion resistance
3)Transformer oil resistance
4)Low temperature resistance
5)Radiation resistance
6)High breakdown voltage
7)Good mechanical properties
2. Specifications of Insulated wires :
Flat wire: Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm
Our factory can produce all the sizes as follows:
1). Class 130 polyester enameled wire, PEW /130
2). Class 155 modified polyester enameled wire, PEW/155
3). Class 180 polyesterimide enameled wire, EIW/180
4). Class 200 polyester-imide / polyamide-imide enameled wire, EI/AIW200
5). Class 130 /155/ 180 polyurathane enameled wire, UEW 130/ 155 /180
3. Insulated wires Material
1) Bare aluminium wire or squeeze bare flat wire confirm the National standard, smooth surface, low resistance.
2) Good performance Polyesterimide insulation vanish(class 180)
3) Good performance Insulation vanish, polyester or polyesterimide insulation vanish as undercoat, Polyamide-imide as top finish (class 200)
Details Tech Information of enameled aluminum wire 8 gauge :
4.Applications of enameled aluminum wire 8 gauge
a)Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments,speakers.
b)Automotive sensors and coils as relais and ignition coils.
c)Generators,dry-type or oil-immersed.
d)Anti-explosion motor,air-conditioner compressor,washing machine
e)Military and space applications.
Application of Insulated wires
a) Class 180: Polyesterimide enameled round and flat aluminum wire class180 have good performance of heat shock. Resistant to high cut-through temperature, excellent mechanical strength .With the feature of both solvents resistance and refrigerants resistance. It can be widely used in electrical equipments which require high performance of heat resistance.
Typical applications include:
lElectric motor
lInstrument
lDry transformer
lGenerator
lUPS power source
lElectric welding machine
b) Class 200:Polyester or polyestermide covered with polyamide-imide enameled round and flat aluminium wire class 200 show superior performance in the application including extreme environment application.
Typical applications include:
lMotor
lTransformer(include oil-immersed transformer)
lrefrigerating system
lC motor
lUPS power source

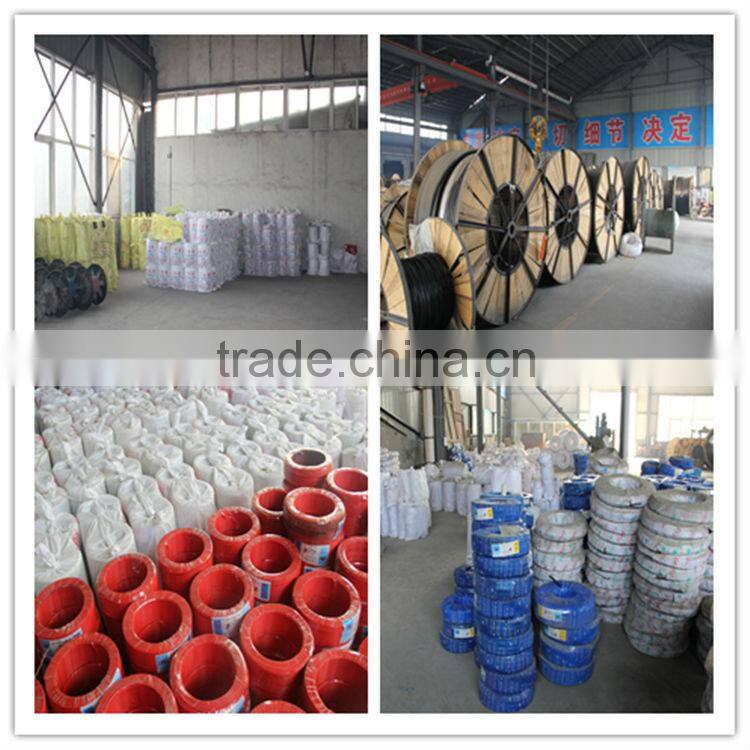

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
