Specifications
AAC all aluminum cable1.high quality
2.manufacturer
3.20 years experience

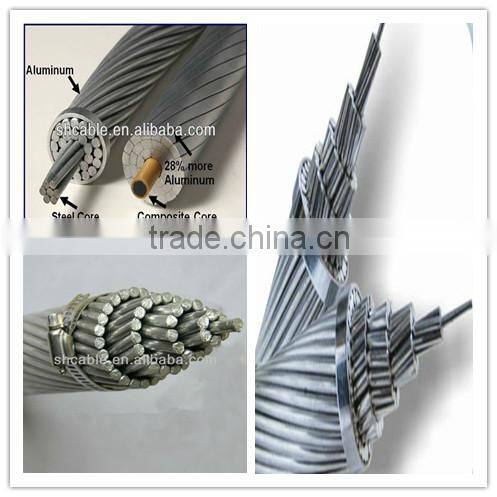

telegraph pole electric pole used AAC all aluminum cable
1) Standard: IEC GB BS ASTM DIN etc
2) ISO9001 certificate
3) 13 years professional experience
4) Low price and professional service
5) Fast delivery
6) Designated cable supplier of State Grid

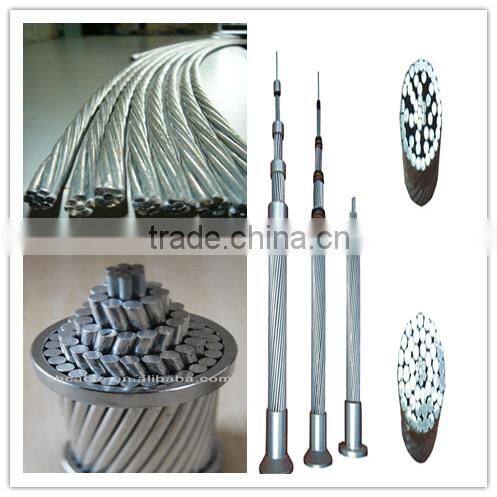

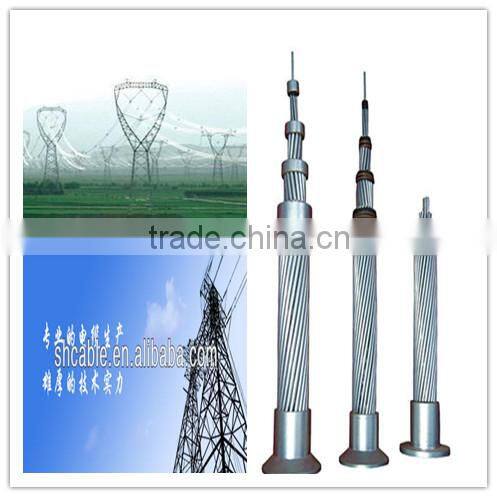

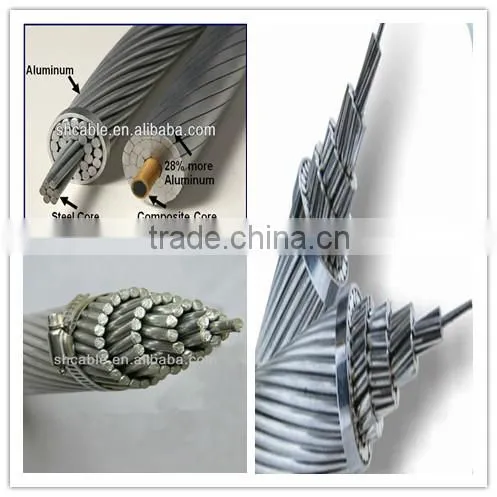

All Aluminum conductor (AAC) and Aluminum conductor steel reinforced (ACSR) have been widely used in power transmission lines with various voltage levels.
1. Applications
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost, large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2. Service Performance
(1). The permissible long-time operating temperature for aerial conductor is 70oC.
(2). Under the circumstance that rare climate occurs and high ice coverage rate, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube can't be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are installed, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. with in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
| Nominal Alum mm 2 |
Number/Diameter mm |
Calculation Area mm 2 |
Approx. Overall Diameter mm |
Max. D. C. Resistance At 20 degrees Celsius ≤ Ω /km |
Nominal breaking load KN |
Weight kg/km |
|||
| Al |
Steel |
Al |
Steel |
Total |
|||||
| 10 | 6/1.50 | 1/1.50 | 10.62 | 1.77 | 12.39 | 4.50 | 2.706 | 4.14 | 43 |
| 20 | 6/2.11 | 1/2.11 | 20.94 | 3.49 | 24.43 | 6.33 | 1.368 | 7.88 | 85 |
| 25 | 6/2.36 | 1/2.36 | 26.25 | 4.37 | 30.62 | 7.08 | 1.093 | 9.61 | 106 |
| 30 | 6/2.59 | 1/2.59 | 31.61 | 5.27 | 36.88 | 7.77 | 0.9077 | 11.45 | 128 |
| 35 | 6/2.79 | 1/2.79 | 36.66 | 6.11 | 42.70 | 8.37 | 0.7822 | 13.20 | 149 |
| 40 | 6/3.00 | 1/3.00 | 42.41 | 7.07 | 49.48 | 9.00 | 0.6766 | 15.20 | 172 |
| 50 | 6/3.35 | 1/3.35 | 52.88 | 8.82 | 61.70 | 10.05 | 0.5426 | 18.35 | 214 |
| 60 | 6/3.66 | 1/3.66 | 63.18 | 10.53 | 73.71 | 10.98 | 0.4545 | 21.80 | 255 |
| 60 | 12/2.59 | 7/2.59 | 63.27 | 36.93 | 100.30 | 12.95 | 0.4567 | 53.00 | 465 |
| 70 | 6/3.99 | 1/3.99 | 74.82 | 12.47 | 87.29 | 11.97 | 0.3825 | 25.70 | 302 |
| 70 | 12/2.79 | 7/2.79 | 73.37 | 42.80 | 116.17 | 13.95 | 0.3936 | 61.20 | 538 |
| 75 | 6/4.10 | 1/4.10 | 79.20 | 13.20 | 92.40 | 12.30 | 0.3622 | 27.20 | 320 |
| 80 | 6/4.22 | 1/4.22 | 83.88 | 13.98 | 97.86 | 12.66 | 0.3419 | 28.80 | 339 |
| 90 | 6/4.50 | 1/4.50 | 95.40 | 15.90 | 111.30 | 13.50 | 0.3007 | 32.70 | 386 |
| 100 | 6/4.72 | 1/4.72 | 105.00 | 17.50 | 122.50 | 14.16 | 0.2733 | 36.00 | 425 |
| 100 | 6/4.72 | 7/1.57 | 105.00 | 13.50 | 118.50 | 14.15 | 0.2733 | 32.70 | 394 |
| 100 | 7/4.39 | 7/1.93 | 105.80 | 20.44 | 126.20 | 14.57 | 0.2712 | 40.90 | 450 |
| 125 | 6/5.28 | 7/1.75 | 131.30 | 16.80 | 148.10 | 15.81 | 0.2184 | 40.70 | 492 |
| 125 | 26/2.54 | 7/1.91 | 132.10 | 20.10 | 152.20 | 15.89 | 0.2187 | 46.40 | 522 |
| 125 | 18/3.05 | 1/3.05 | 130.30 | 7.25 | 137.50 | 15.25 | 0.2189 | 29.80 | 419 |
| 125 | 30/2.36 | 7/2.36 | 131.10 | 30.60 | 161.70 | 16.52 | 0.2202 | 58.00 | 602 |
| 150 | 30/2.59 | 7/2.59 | 158.00 | 36.90 | 194.90 | 18.13 | 0.1828 | 69.20 | 726 |
| 150 | 18/3.35 | 1/3.35 | 158.70 | 8.80 | 167.50 | 16.57 | 0.1815 | 35.70 | 506 |
| 175 | 30/2.79 | 7/2.79 | 183.40 | 42.80 | 226.20 | 19.53 | 0.1576 | 79.80 | 842 |
| 175 | 18/3.61 | 1/3.61 | 184.20 | 10.30 | 194.50 | 18.05 | 0.1563 | 41.10 | 587 |
| 200 | 30/3.00 | 7/3.00 | 212.00 | 49.50 | 261.50 | 21.00 | 0.1363 | 92.25 | 974 |
| 225 | 30/3.18 | 7/3.18 | 238.50 | 55.60 | 294.20 | 22.26 | 0.1212 | 109.60 | 1095 |
| 250 | 30/3.35 | 7/3.35 | 264.00 | 61.60 | 325.60 | 23.45 | 0.1093 | 111.10 | 1213 |
| 300 | 30/3.71 | 7/3.71 | 324.30 | 75.70 | 400.00 | 25.97 | 0.0891 | 135.70 | 1489 |
| 350 | 30/3.99 | 7/3.99 | 374.10 | 87.30 | 461.40 | 27.93 | 0.07704 | 155.90 | 1718 |
| 350 | 54/2.97 | 7/2.97 | 373.10 | 48.40 | 421.50 | 26.73 | 0.07727 | 118.20 | 1411 |
| 350 | 54/3.00 | 7/3.00 | 381.80 | 49.50 | 431.30 | 27.00 | 0.07573 | 120.90 | 1444 |
| 200 | 18/3.86 | 1/3.86 | 210.60 | 11.70 | 222.30 | 19.30 | 0.013670 | 46.55 | 671 |
| 400 | 30/4.27 | 7/4.27 | 429.30 | 100.20 | 529.50 | 29.89 | 0.06726 | 178.50 | 1971 |
| 400 | 54/3.18 | 7/3.18 | 428.90 | 55.30 | 484.50 | 28.62 | 0.06740 | 131.90 | 1621 |
| 450 | 30/4.50 | 7/4.50 | 477.00 | 111.30 | 588.30 | 31.50 | 0.06056 | 198.20 | 2190 |
| 450 | 54/3.35 | 7/3.35 | 475.20 | 61.60 | 536.80 | 30.15 | 0.06073 | 145.70 | 1797 |
| 500 | 54/3.53 | 7/3.53 | 528.70 | 68.50 | 597.20 | 31.77 | 0.05470 | 161.10 | 1999 |

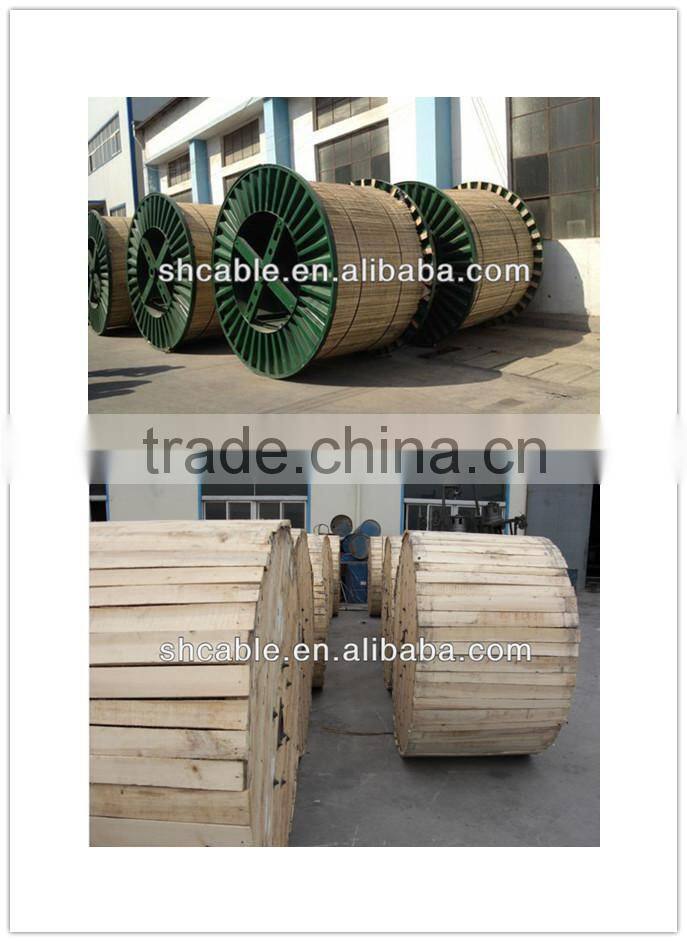

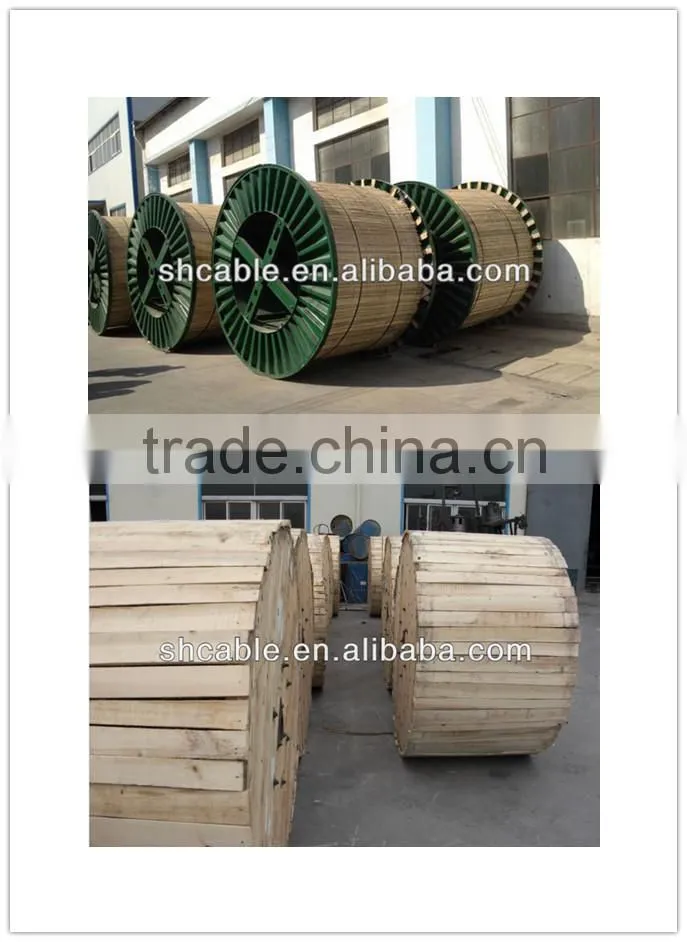

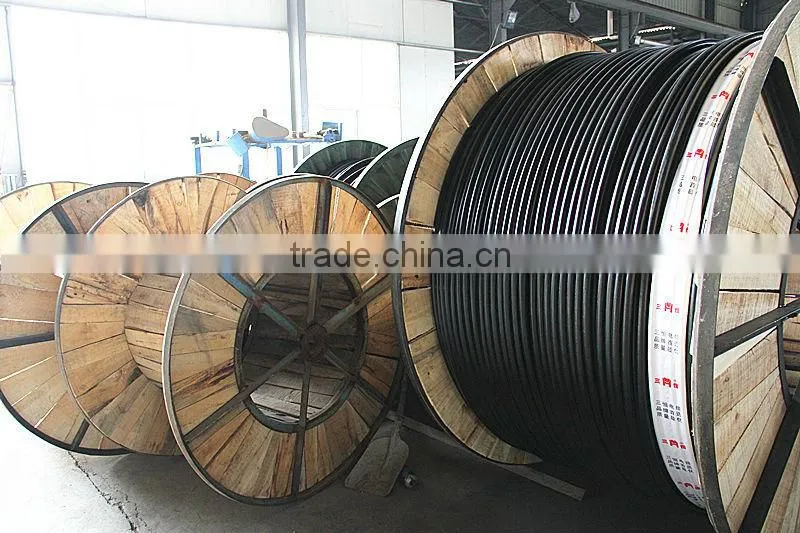

Packaging Detail: Wooden drums, steel drums or steel-wooden drums.
Delivery Detail: Within 15 working days and depending on the quantity
We could producing according to the customers' requirements.Welcome your request for any quotations!
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.

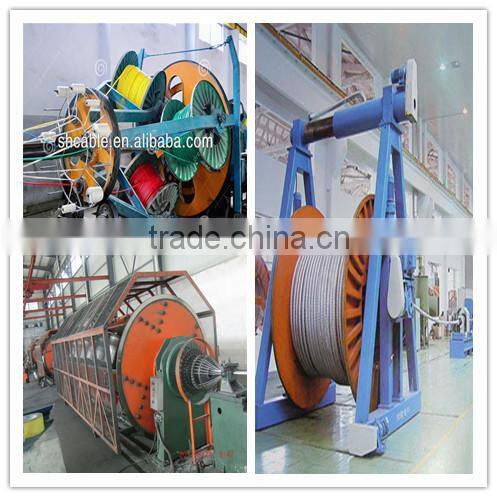

Our factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, first-class technicians, Elite team, high quality workers.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
Dear sir or madam
This is cherry. If you have any problem , please feel free to contact me. Tell us your request ! Let me know your needs ! RIGHT NOW !! ACTION ! please !
