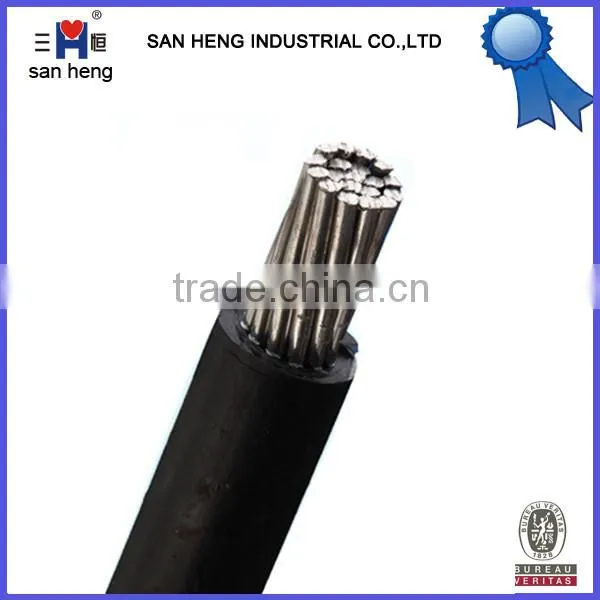

ASTM standard concentric strand cable aluminum core concentric cable
1. Standard: According to IEC61089, also can do by standard of ASTM B232,BS315,DIN48204 or other standards as request.

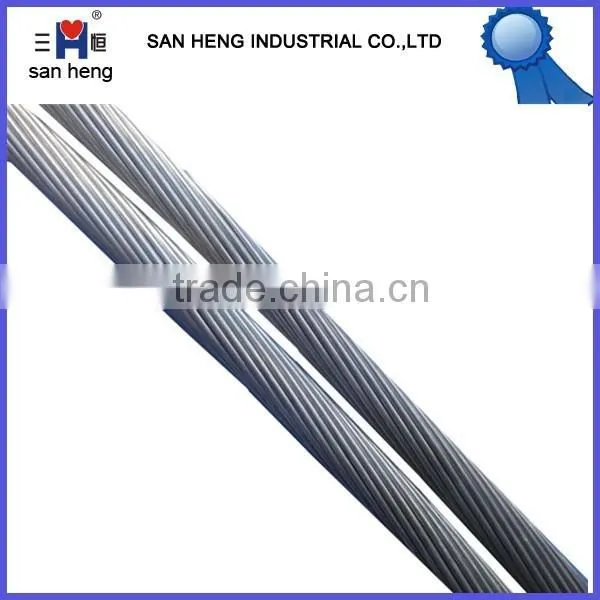

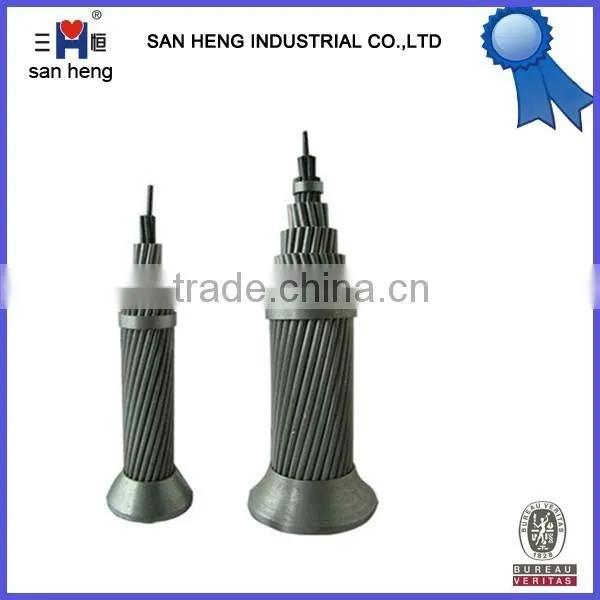

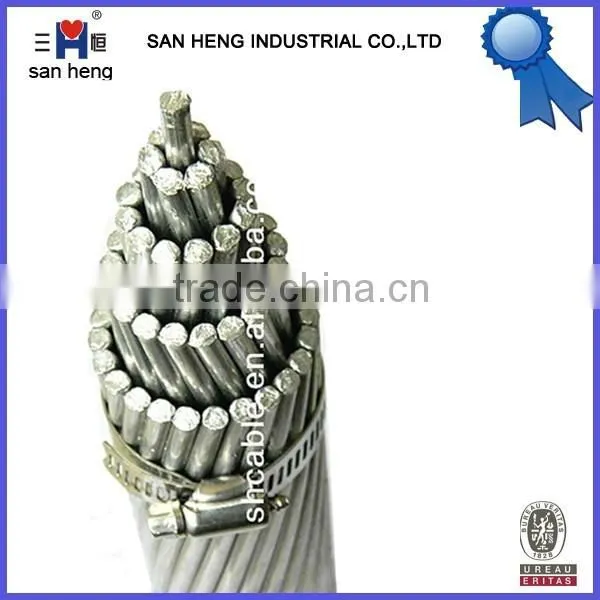

2. Construction:ACSR is composed by concentric-lay-stranded galvanized steel wires and aluminium wires.
3. Characters:
a.Under the same weight,ACSR is with lower cost than Copper conductor
b.In order to foster the prevention of corrosion,the non-oxidizing grease can be fully or partially applied to ACSR
c.ACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
4. Application:
Overhead electric power transmission and distribution lines with various grade voltages. It is very suitable for laying across basins, rivers and valleys where special geographical terrain exist.
5. Advantages:
a. Excellent electric and mechanical characteristics.
b. Good conductivity, Resistance chemical corrosion and heat-ageing,environment stress.
c. Unit volume light, Simple in structure.
d. Convenient to use,especially for laying across rivers and valleys where special geographical terrain exist.
|
Nominal cross section aluminum/steel ( mm²) |
Structure (no./diameter) ( mm ) |
Out diameter ( mm ) |
D.C.resistor at 20 ( Ω/km ) |
Calculated breakingloadN |
Calculated weight ( kg/km ) |
|
aluminum |
steel |
|||||
|
10/2 16/3 25/4 35/6 |
6/1.50 6/1.85 6/2.32 6/2.72 |
1/1.50 1/1.85 1/1.32 1/2.72 |
4.50 5.55 6.96 8.16 |
2.706 1.779 1.131 0.8230 |
4120 6130 9290 12630 |
42.9 65.2 102.6 141.0 |
|
50/8 50/30 |
6/3.20 12/2.32 |
1/3.20 7/2.32 |
9.60 11.60 |
0.5946 0.5692 |
16870 42620 |
195.1 372.9 |
|
70/10 70/40 |
6/3.80 12/2.72 |
1/3.80 7/2.72 |
11.40 13.60 |
0.4217 0.4141 |
23390 58300 |
275.2 511.3 |
|
95/15 95/20 95/55 |
26/2.15 7/4.16 12/3.20 |
7/1.67 7/1.85 7/3.20 |
13.61 13.87 16.00 |
0.3058 0.3019 0.2992 |
35000 37200 78110 |
380.8 408.6 707.7 |
|
120/7 120/20 120/25 120/70 |
18/2.90 26/2.38 7/4.72 12/3.6 |
1/2.90 7/1.85 7/2.10 7/3.60 |
24.50 15.07 15.74 18.00 |
0.2422 0.2496 0.2345 0.2364 |
27570 41000 47880 98370 |
379.0 466.8 526.6 895.6 |
|
150/8 150/20 150/25 150/35 |
18/3.20 24/2.76 26/2.70 30/2.50 |
1/3.20 7/1.85 7/2.10 7/2.50 |
16.00 16.67 17.10 17.50 |
0.1989 0.1980 0.1939 0.1962 |
32860 46630 54110 65020 |
461.4 549.4 601.0 676.2 |
185/10 |
18/3.60 |
1/3.60 |
18.00 |
0.1572 |
40880 |
584.0 |
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !

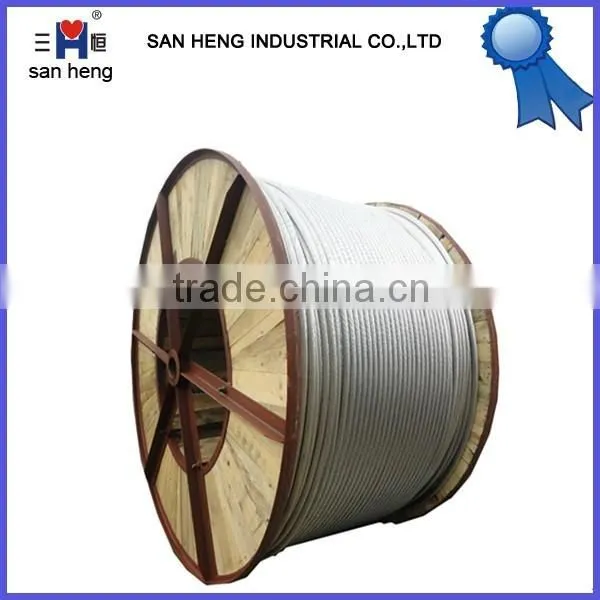

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
There are some of the related products which you may interested in.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
