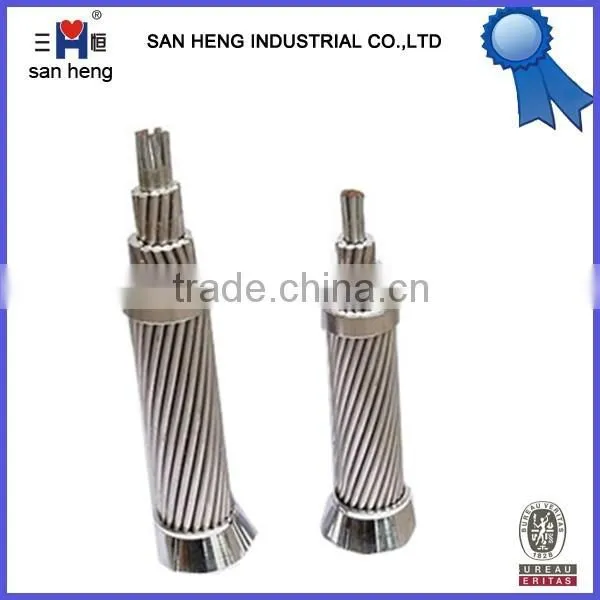

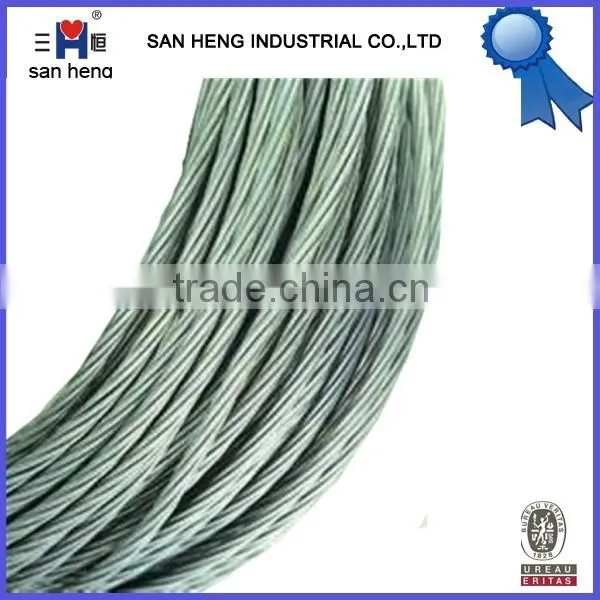

Help CenterAluminum Conductor Steel Reinforced POWER CABLE OVERHEAD ACSR Cable
Related Products
-
AAC Cable All Aluminum Cable AAC CONDUCTOR Transmission Pole AAC CableUS$ 10 - 500MOQ: 500 Meters -
ALUMINUM CABLE 16 25 400 SQ MM AAC CABLEUS$ 10 - 500MOQ: 500 Meters
-
ASTM Standard Concentric Strand Cable Aluminum Core Concentric CableUS$ 10 - 500MOQ: 10 Tons
-
BS 215-2 Standard 6/2.11 1/2.11 Code Squirrel ACSR CableUS$ 10 - 500MOQ: 500 Meters
-
BS 215-2 Standard 6/2.11 1/2.11 Strand Conductor ACSR Weasel Fox CableUS$ 10 - 500MOQ: 500 Meters
Specifications
Aluminum Conductor Steel Reinforced(ACSR)Cable1.High quality ,20 years experience
2.Fast delivery
3.Modern production base
SpecificationsACSR bare conductor ACSR bare conductor
ACSR,AAC,AAAC Aluminum Conductor:
Type: (1) all aluminium conductor (AAC) (2) all aluminimum alloy conductor(AAAC) (6)rear earth aluminimum conductor steel reinforced(ACSR/RE) (7)aluminimum conductor aluminimum alloy reinforced(ACAR)
Relative Standard: All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
ACSR Conductor (Aluminium Conductor Steel Reinforced) 1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182.

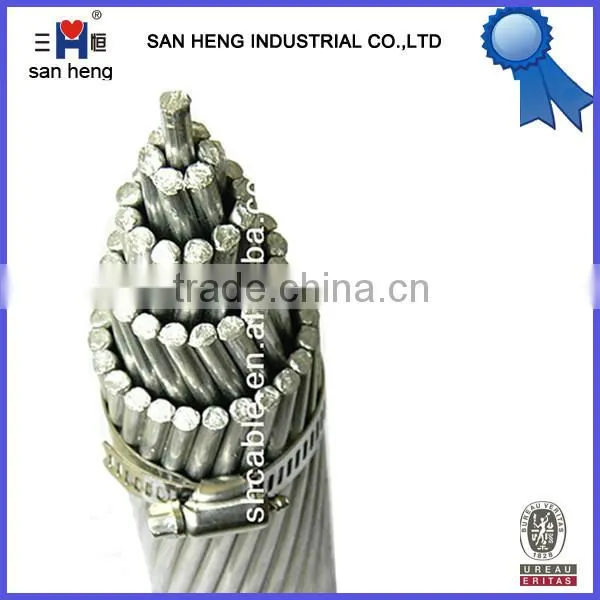

Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease. |
IEC61089:
Code Number |
Nominal area |
Stranding& Wire Diameter |
Approx overall diameter |
Approx weight |
Breaking load |
DC Resistance at 20 |
mm2 |
mm |
mm |
Kg/km |
KN |
Ohm/km |
|
10 |
10 |
7/1.35 |
4.05 |
27.4 |
1.95 |
2.8633 |
16 |
16 |
7/1.71 |
5.12 |
43.8 |
3.04 |
1.7896 |
25 |
25 |
7/2.13 |
6.40 |
68.4 |
4.50 |
1.1453 |
40 |
40 |
7/2.70 |
8.09 |
109.4 |
6.80 |
0.7158 |
63 |
63 |
7/3.39 |
10.20 |
172.3 |
10.39 |
0.4545 |
100 |
100 |
19/2.59 |
12.90 |
274.8 |
17.00 |
0.2877 |
125 |
125 |
19/2.89 |
14.50 |
343.8 |
21.25 |
0.2302 |
160 |
160 |
19/3.27 |
16.40 |
439.8 |
26.40 |
0.1798 |
200 |
200 |
19/3.66 |
18.30 |
549.7 |
32.00 |
0.1439 |
250 |
250 |
19/4.09 |
20.50 |
687.1 |
40.00 |
0.1151 |
400 |
400 |
37/3.71 |
26.00 |
1102.0 |
64.00 |
0.0721 |
450 |
450 |
37/3.94 |
27.50 |
1239.8 |
72.00 |
0.0641 |
500 |
500 |
37/4.15 |
29.00 |
1377.6 |
80.00 |
0.0577 |
560 |
560 |
37/4.39 |
30.70 |
1542.9 |
89.60 |
0.0515 |
630 |
630 |
61/3.63 |
32.60 |
1738.3 |
100.80 |
0.0458 |
710 |
710 |
61/3.85 |
34.60 |
1959.1 |
113.60 |
0.0407 |
800 |
800 |
61/4.09 |
36.80 |
2207.4 |
128.00 |
0.0361 |
900 |
900 |
61/4.33 |
39.00 |
2483.3 |
144.00 |
0.0321 |
1000 |
1000 |
61/4.57 |
41.10 |
2759.2 |
160.00 |
0.0289 |
1120 |
1120 |
91/3.96 |
43.50 |
3093.5 |
179.20 |
0.0258 |
1250 |
1250 |
91/4.18 |
46.00 |
3452.6 |
200.00 |
0.0231 |
1400 |
1400 |
91/4.43 |
48.70 |
3866.9 |
224.00 |
0.0207 |
1500 |
1500 |
91/4.58 |
50.40 |
4143.1 |
240.00 |
0.0193 |
Packaging Detail: Wooden drums, steel drums or steel-wooden drums.
Delivery Detail: Within 15 working days and depending on the quantity
We could producing according to the customers' requirements.Welcome your request for any quotations!
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
There are some of the related products which you may interested in.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
