Overhead Conductor Bare Cable AAAC AAC

Name: Overhead Conductor Bare Cable AAAC AAC
Brand: sanheng
SKU: 109623583
Availability: InStock

Overhead Conductor Bare Cable AAAC AAC thumbnail-1

Overhead Conductor Bare Cable AAAC AAC thumbnail-2

Overhead Conductor Bare Cable AAAC AAC thumbnail-3

Overhead Conductor Bare Cable AAAC AAC thumbnail-4

Overhead Conductor Bare Cable AAAC AAC thumbnail-5

Overhead Conductor Bare Cable AAAC AAC photo-1

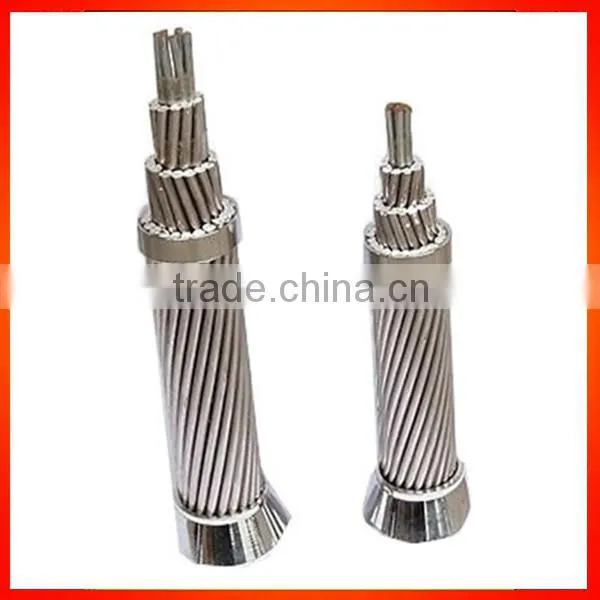

Overhead Conductor Bare Cable AAAC AAC photo-2

Overhead Conductor Bare Cable AAAC AAC photo-3

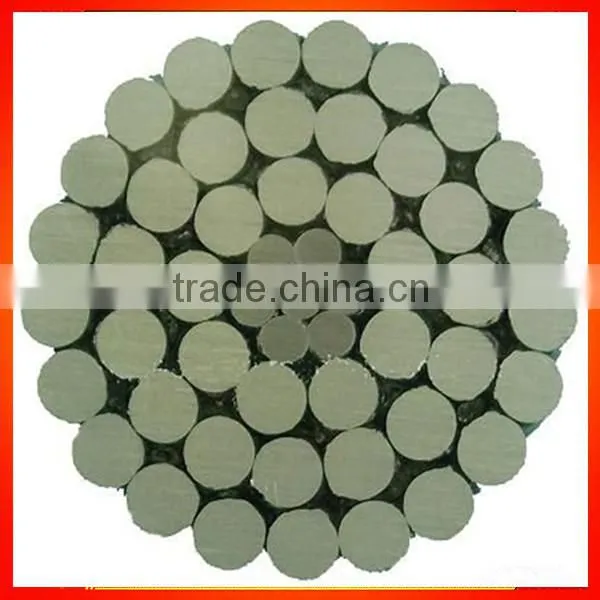

Overhead Conductor Bare Cable AAAC AAC photo-4

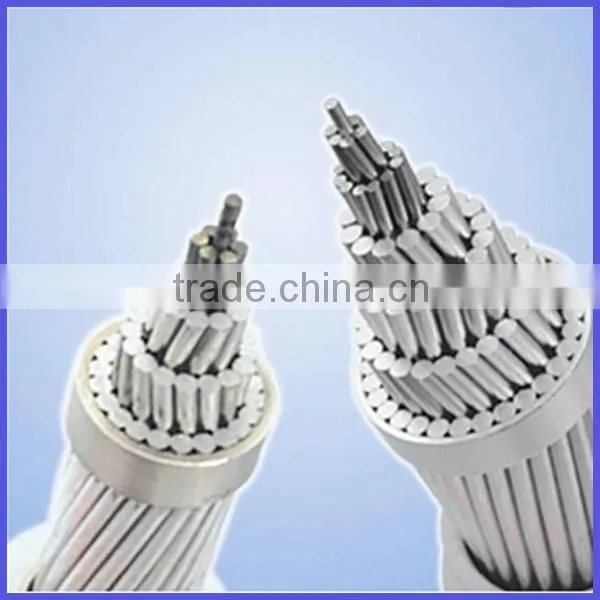

Overhead Conductor Bare Cable AAAC AAC photo-5

US$ 0.16 - 35 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

sanheng

Model Number:

aac

Contact Supplier Request Quote Chat Now

Henan Sanheng Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name sanheng

Model Number aac

Insulation Material PE

Type Low Voltage

Application Other, Overhead, Power Station or Indutrial

Conductor Material Other, Aluminum, Aluminum

Jacket PVC

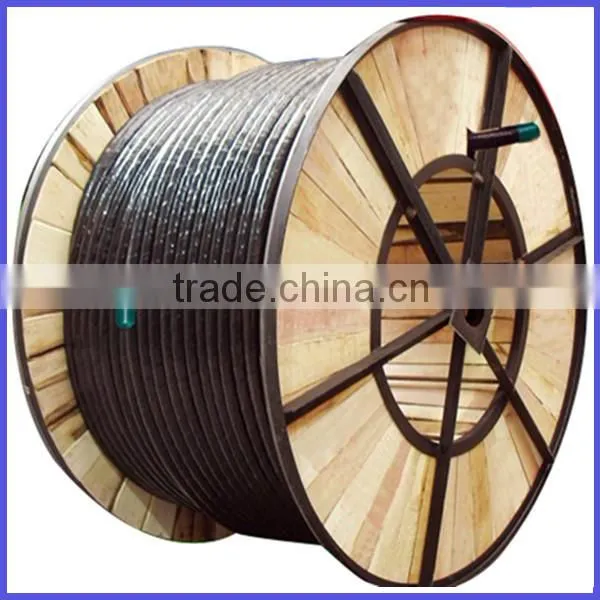

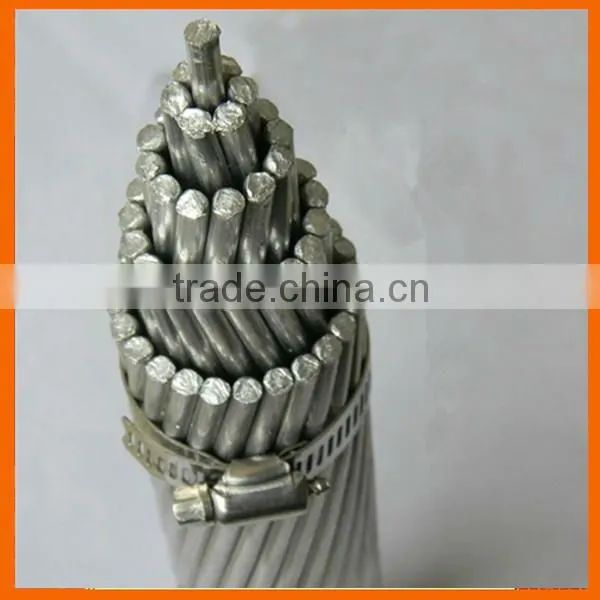

overhead conductor bare cable AAAC AAC

1) Standard: IEC GB BS ASTM DIN etc

2) ISO9001 certificate
3) 13 years professional experience
4) Low price and professional service
5) Fast delivery
6) Designated cable supplier of State Grid

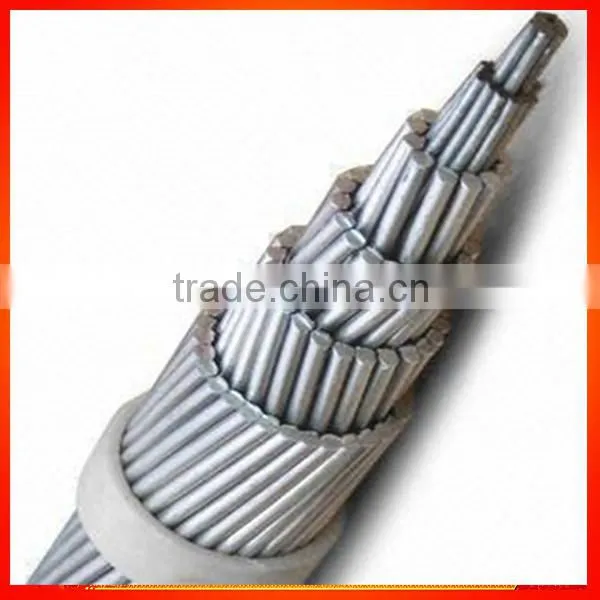

All Aluminum conductor (AAC) and Aluminum conductor steel reinforced (ACSR) have been widely used in power transmission lines with various voltage levels.

1. Applications

Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost, large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

2. Service Performance

(1). The permissible long-time operating temperature for aerial conductor is 70oC.

(2). Under the circumstance that rare climate occurs and high ice coverage rate, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3). When connecting conductors, the conductor beside the connecting tube can't be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are installed, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4). Under installation, the arc downing stress of all the conductors should be the same. with in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

Nominal Alum mm 2	Number/Diameter mm		Calculation Area mm 2			Approx. Overall Diameter mm	Max. D. C. Resistance At 20 degrees Celsius ≤ Ω /km	Nominal breaking load KN	Weight kg/km
Nominal Alum mm 2	Al	Steel	Al	Steel	Total	Approx. Overall Diameter mm	Max. D. C. Resistance At 20 degrees Celsius ≤ Ω /km	Nominal breaking load KN	Weight kg/km
10	6/1.50	1/1.50	10.62	1.77	12.39	4.50	2.706	4.14	43
20	6/2.11	1/2.11	20.94	3.49	24.43	6.33	1.368	7.88	85
25	6/2.36	1/2.36	26.25	4.37	30.62	7.08	1.093	9.61	106
30	6/2.59	1/2.59	31.61	5.27	36.88	7.77	0.9077	11.45	128
35	6/2.79	1/2.79	36.66	6.11	42.70	8.37	0.7822	13.20	149
40	6/3.00	1/3.00	42.41	7.07	49.48	9.00	0.6766	15.20	172
50	6/3.35	1/3.35	52.88	8.82	61.70	10.05	0.5426	18.35	214
60	6/3.66	1/3.66	63.18	10.53	73.71	10.98	0.4545	21.80	255
60	12/2.59	7/2.59	63.27	36.93	100.30	12.95	0.4567	53.00	465
70	6/3.99	1/3.99	74.82	12.47	87.29	11.97	0.3825	25.70	302
70	12/2.79	7/2.79	73.37	42.80	116.17	13.95	0.3936	61.20	538
75	6/4.10	1/4.10	79.20	13.20	92.40	12.30	0.3622	27.20	320
80	6/4.22	1/4.22	83.88	13.98	97.86	12.66	0.3419	28.80	339
90	6/4.50	1/4.50	95.40	15.90	111.30	13.50	0.3007	32.70	386
100	6/4.72	1/4.72	105.00	17.50	122.50	14.16	0.2733	36.00	425
100	6/4.72	7/1.57	105.00	13.50	118.50	14.15	0.2733	32.70	394
100	7/4.39	7/1.93	105.80	20.44	126.20	14.57	0.2712	40.90	450
125	6/5.28	7/1.75	131.30	16.80	148.10	15.81	0.2184	40.70	492
125	26/2.54	7/1.91	132.10	20.10	152.20	15.89	0.2187	46.40	522
125	18/3.05	1/3.05	130.30	7.25	137.50	15.25	0.2189	29.80	419
125	30/2.36	7/2.36	131.10	30.60	161.70	16.52	0.2202	58.00	602
150	30/2.59	7/2.59	158.00	36.90	194.90	18.13	0.1828	69.20	726
150	18/3.35	1/3.35	158.70	8.80	167.50	16.57	0.1815	35.70	506
175	30/2.79	7/2.79	183.40	42.80	226.20	19.53	0.1576	79.80	842
175	18/3.61	1/3.61	184.20	10.30	194.50	18.05	0.1563	41.10	587
200	30/3.00	7/3.00	212.00	49.50	261.50	21.00	0.1363	92.25	974
225	30/3.18	7/3.18	238.50	55.60	294.20	22.26	0.1212	109.60	1095
250	30/3.35	7/3.35	264.00	61.60	325.60	23.45	0.1093	111.10	1213
300	30/3.71	7/3.71	324.30	75.70	400.00	25.97	0.0891	135.70	1489
350	30/3.99	7/3.99	374.10	87.30	461.40	27.93	0.07704	155.90	1718
350	54/2.97	7/2.97	373.10	48.40	421.50	26.73	0.07727	118.20	1411
350	54/3.00	7/3.00	381.80	49.50	431.30	27.00	0.07573	120.90	1444
200	18/3.86	1/3.86	210.60	11.70	222.30	19.30	0.013670	46.55	671
400	30/4.27	7/4.27	429.30	100.20	529.50	29.89	0.06726	178.50	1971
400	54/3.18	7/3.18	428.90	55.30	484.50	28.62	0.06740	131.90	1621
450	30/4.50	7/4.50	477.00	111.30	588.30	31.50	0.06056	198.20	2190
450	54/3.35	7/3.35	475.20	61.60	536.80	30.15	0.06073	145.70	1797
500	54/3.53	7/3.53	528.70	68.50	597.20	31.77	0.05470	161.10	1999
