Wire and cable can be customized
Application
The product can be fixedly laid in places where cable can be protected from foreign mechanical force up to a certain degree, such as indoor, underground, cable conduit or tunnel for power transmission and distribution line project, with rated A/C Uo/U being 0.6/1KV or below.
Standard
GB/T 12706.1, IEC 60502-1
Technical Data
Conductor: Plain copper conductor to GB/T 3956(Class 1 or 2)
Insulation: XLPE (Cross-linked Polyethylene)
Armour: Steel Tape
Sheath: PVC (Polyvinyl Chloride) type PVC/ST1
Sheath Color: Black
Temperature Rating: 0°C to +90°C
Core Identification: Color coded

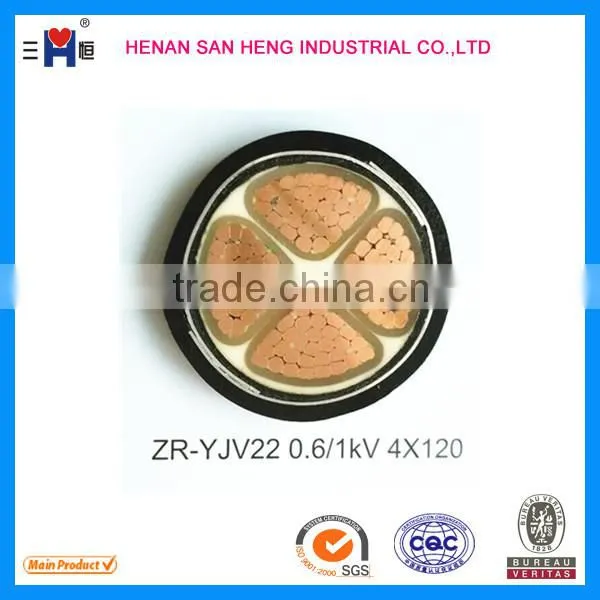

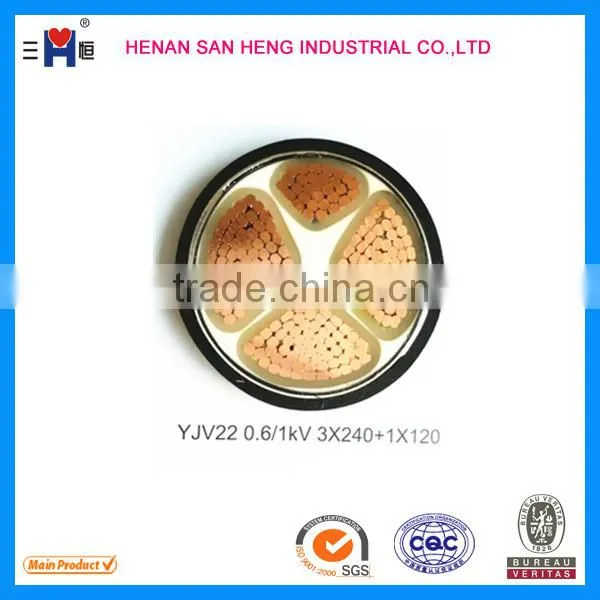

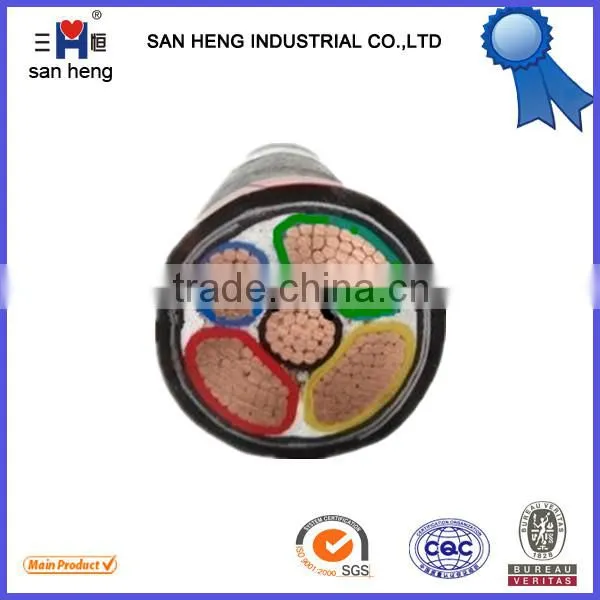

Technical name YJV22 CABLE
Type |
Name |
Main Application |
|
Cu Core |
Al Core |
||
YJV |
YJLV |
XLPE insulated,PVC or PE Sheathed Power Cable |
For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid |
YJV22 |
YJLV22 |
XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable |
For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force |
YJV32 |
YJLV32 |
XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable |
For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force |
YJV42 |
YJLV42 |
XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable |
Able to bear positive pressure and pulling force |
As customers request
Manufacturer with more than 15 years
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
