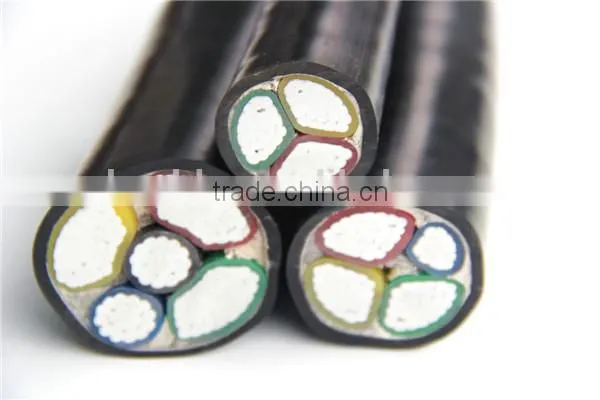

Help CenterSan Heng Low Voltage YJV22 0.6/1.0KV Armoured Power Cable
Related Products
-
Low Voltage Power Cable Xlpe Insulation PVC Sheathed Power CablesUS$ 1 - 66MOQ: 5 Kilometers -
YJV22 XLPE Insulation Pvc Jacket Steel Tape Armored Power CablesUS$ 1 - 66MOQ: 500 Meters
-
High Voltage YJV YJV22 YJV32 Armoured Power CableUS$ 0.1 - 5MOQ: 1 Kilometer
-
YJLV32 Steel Wire Armoured Power Transmission CableUS$ 0.1 - 50MOQ: 1 Kilometer
-
YJV22 0.6/1.0KV Insulted Steal Tape Armoured CableUS$ 0.1 - 50MOQ: 1 Kilometer
Specifications
HIGH quality YJV armoured cableReasonable price with good after-sales service
Professional fectory with 30 years
General information
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Application:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.

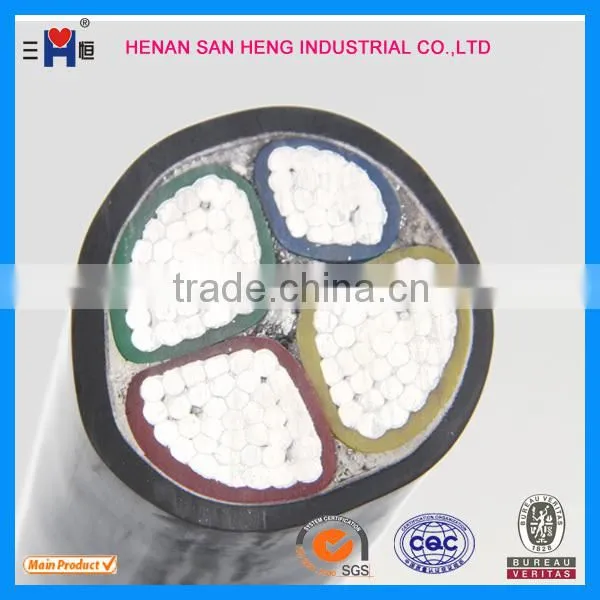

Construction:(Example of YJV32 8.7/15kV)
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
China Model |
Name
|
Uses |
Cores |
Conductor nominal cross section mm2
|
YJV |
Copper core XLPE insulated PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
1 |
1.5~800
|
YJY |
Copper core XLPE insulated PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
2 |
1.5~800
|
YJV22 |
Copper core XLPE insulated Galvanized steel Tape armoured PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY . |
3 |
1.5~400
|
|
YJLV23 |
Copper core XLPE insulated Galvanized steel Tape armoured PE sheathed |
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
4 |
1.5~400 |
YJV32 |
Copper core XLPE insulated Galvanized steel wire armoured PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
3+1 |
1.5~400
|
YJV33 |
Copper core XLPE insulated Galvanized steel wire armoured PE sheathed power cable |
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
4+1 |
+ 1.5~400
|
