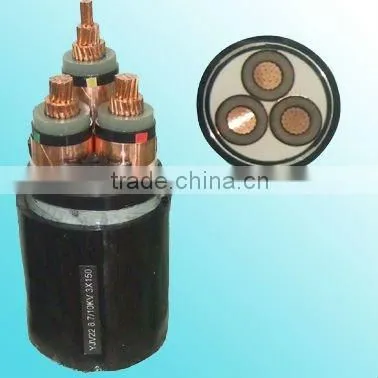

High Voltage YJV YJV22 YJV32 Armoured power Cable

Specifications

High Voltage Armoured Cable
2, Factory price, free sample Armoured Cable

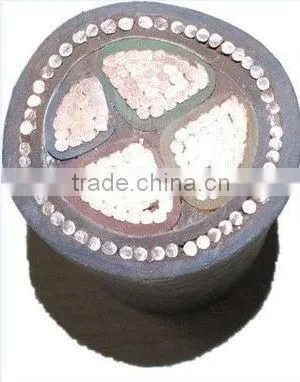

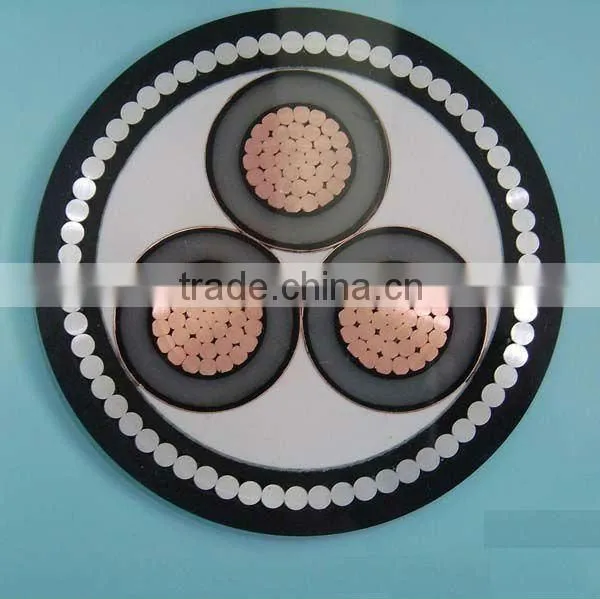

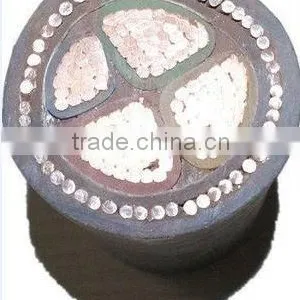

XLPE Insulation Stell tape steel wire Armoured Power Cable



Armored cable - XLPE armored power cable

1. Armored cable--armored power cable is made complying with the national standard and have pass the CCC (China Compulsory Certification) which contains the recognization of national security certificate (CCEE), imports of safety and quality licensing system (CCIB), China Certification Electromagnetic Compatibility (EMC).

2. the temperature of the conductor in the working time is no more than 70 ^oC

3. The specification: YJV

4. The rated voltage is 0.6/1 KV

5. The core count* the sectional area of the conductor(mm2)

(We can also customize the electrical wire and cable as your request! You can decide the core count and cross section of the conductor, as well as the jacket and insulation.)



1 core	1*10; 1*16; 1*25; 1*35; 1*50; 1*70; 1*95; 1*120; 1*150; 1*185; 1*240; 1*300; 1*400
2 core	2*1.5; 2*2.5; 2*4; 2*6; 2*10; 2*16; 2*25; 2*35; 2*50; 2*70; 2*95; 2*120; 2*150; 2*185; 2*240; 2*300
3 core	3*1.5; 3*2.5; 3*4; 3*6; 3*10; 3*16; 3*25; 3*35; 3*50; 3*70; 3*95; 3*120; 3*150; 3*185; 3*240; 3*300
4 core	4*4; 4*6; 4*10; 4*16; 4*25; 4*35; 4*50; 4*70; 4*95; 4*120; 4*150; 4*185; 4*240
5 core	5*1.5; 5*2.5; 5*4; 5*6; 5*10; 5*16; 5*25; 5*35; 5*50; 5*70; 5*95; 5*120; 5*150; 5*185; 5*240;
3+1 core	3*4+1*2.5; 3*6+1*4; 3*10+1*6; 3*16+1*10; 3*25+1*16; 3*35+1*16; 3*50+1*25; 3*70+1*35.
4+1 core	4*2.5+1*1.5; 4*4+1*2.5; 4*6+1*4;  4*16+1*10; 4*25+1*16; 4*35+1*16; 4*50+1*25; 4*70+1*35; 4*95+1*50; 4*120+1*70; 4*150+1*70; 4*185+1*95; 4*240+1*120; 4*300+1*150.
