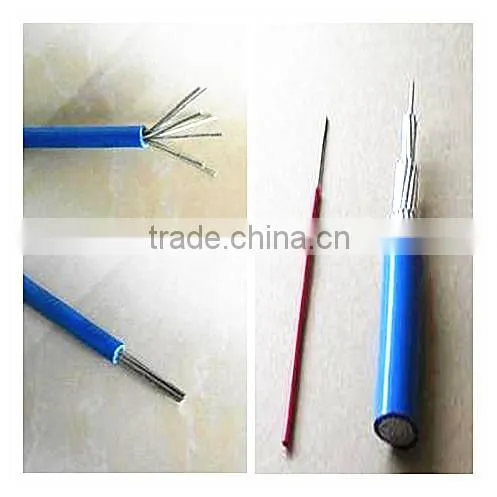

Help CenterAluminium PE Insulate Electric Cable Wire Annealed Copper Conductor
Related Products
-
pe Insulation Pvc Coated Aluminum Core Agricultural Buried CableUS$ 0.5 - 80MOQ: 5 Kilometers -
PE Insulated Pvc Sheathed Agricultural Aluminum Wire Buried Cable Nlvv NlyvUS$ 0.13 - 39MOQ: 5 Kilometers
-
Agricultural Arctic Cable Underground Low Temperature Cable Aluminum Arctic CableUS$ 0.5 - 80MOQ: 5 Kilometers
-
Heating Wire With Glass FiberUS$ 0.15 - 0.19MOQ: 1000 Meters
-
Low Voltage Aluminum Hook up Wire for LightingUS$ 0.01 - 0.1MOQ: 1 Kilometer
Specifications
1, copper Aluminium PVC insulation electrical wire2, 300V - 500 V
3, Copper conductor
4, Factory price, free samples
H07V-K = NYAF = RV
Technical Information:
| H07V-K (NYAF) | |
| Voltage: | 450/750V |
| Code: | H07V-K |
| Standards: | TS 9758, IEC 227, VDE 0281, BS 6004 |
| Construction: | 1- Flexible Copper Conductor |
| 2- PVC insulation | |
| Application: | For protected installation in equipment and lighting fitting. Also for in conduit, on and under plaster. |
| Technical Data: | Max. operating temperature 70 ºC |
| Short circuit temperature 160 ºC | |
| Nominal cross-sectional area |
Thickness of insulation |
Approx. Diameter of cable |
Weight |
Conductor DC resistance at 20°C |
Max. current carrying capacity at 30°C |
|
| (mm2) | (mm) | (mm) | (Kg/km) | (Ω/km) | Pipe A | Air A |
| 1.5 | 0.7 | 2.92 | 19.57 | 13.3 | 15 | 24 |
| 2.5 | 0.8 | 3.55 | 30.57 | 7.98 | 20 | 32 |
| 4 | 0.8 | 4.09 | 45.49 | 4.95 | 25 | 42 |
| 6 | 0.8 | 4.61 | 62.90 | 3.3 | 33 | 54 |
| 10 | 1.0 | 6.64 | 110.49 | 1.91 | 45 | 73 |
| 16 | 1.0 | 7.96 | 165.90 | 1.21 | 61 | 98 |
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
