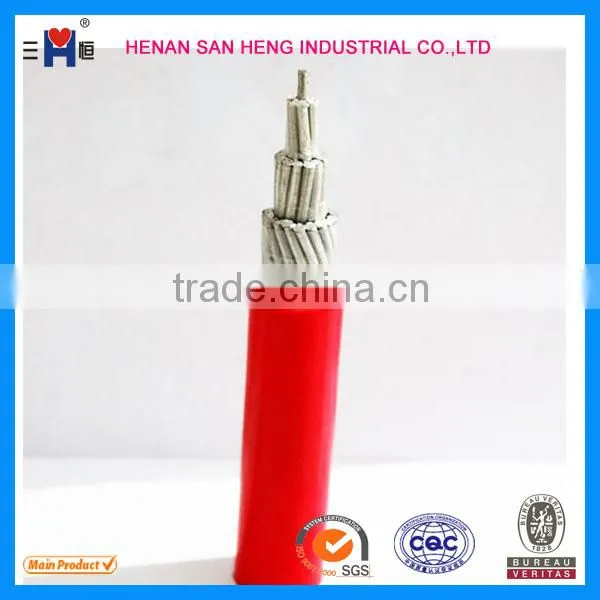

Low voltage Aluminum hook up wire for lighting
- 1000 Kilometer / Kilometers per Month
- Qingdao port or as your request
- T/T Credit Card
-
60227 IEC 52/53 RVV, 60245 IEC57/54/66 YZ, YZW, YCW Flexible Cord
-
SAA H05VV-F, 0.6/1KV Flexible Cord
-
H05V2V2-F, H05Z1Z1-F, H05VV-F, H07RN-F, H05RN-F, H05RR-F Power Cord
-
EV cable UL/CUL Approved UL62 UL1581 Standard
-
SJEOOW SJEOW SJEW SJE SJEO SJEOO 300V TPE Flexible Cord UL62 UL1581 Standard
-
SJOOW SJOW SJW SJ SJO SJOO 300V Rubber Flexible Cord UL62 UL1581 Standard
Product Details
| Place of Origin: | Henan, China | Brand Name: | San Heng, sanheng | Model Number: | aluimnum electric wire, Aluminum hook up wire |
| Type: | Insulated | Application: | Other, Construction or Building, lighting | Conductor Material: | Other, Aluminum, Al |
| Conductor Type: | Other, solid and strand | Insulation Material: | Other, PVC, PVC |
Product Description
Specifications
Aluminum hook up wire-Rated voltage: 450/750V
-Prompt delivery, quality assured
-Manufacture more than 20 years
Low voltage Copper or Aluminum PVC Electric Wire
1. Electrical wire are used indoors,aluminum conductor and PVC insulation
2.We can also supply the copper conductor and PVC insulation electrical wire
3. Range of application:this product is fit A.C rated voltage450/750V
4. If you have any problem about the electrical cable and wire,please feel free to connected with me !
5.Specification,Size and Tchnical Date:
BLV 450/750V | |||
Nominal Section(mm2) | No.Dia. of Core(mm) | Max outer diameter(mm) | Conductor resistance at 20C(≤Ωkm) |
1.5(A) | 1/1.38 | 3.3 | 12.1 |
1.5(B) | 7/0.52 | 3.5 | 12.1 |
2.5(A) | 1/1.78 | 3.9 | 11.8 |
2.5(B) | 7/0.68 | 4.2 | 11.8 |
4(A) | 1/2.25 | 4.4 | 7.39 |
4(B) | 7/0.85 | 4.8 | 7.39 |
6(A) | 7/0.85 | 4.8 | 4.91 |
6(B) | 7/1.04 | 5.4 | 4.91 |
10 | 7/1.35 | 7.0 | 3.08 |
16 | 7/1.70 | 8.0 | 1.91 |
25 | 27/2.04 | 10.0 | 1.20 |
35 | 27/2.52 | 11.5 | 0.868 |
50 | 19/1.78 | 13.0 | 0.641 |
70 | 19/2.14 | 15.0 | 0.443 |
95 | 19/2.52 | 17.5 | 0.320 |
120 | 37/2.03 | 19.0 | 0.253 |
150 | 37/2.25 | 21.0 | 0.206 |
185 | 37/2.52 | 23.5 | 0.164 |
240 | 61/2.25 | 26.5 | 0.125 |
300 | 61/2.52 | 29.5 | 0.100 |

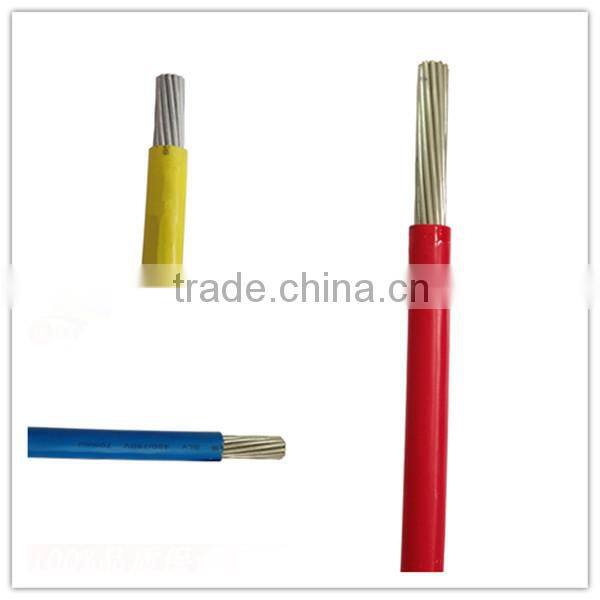

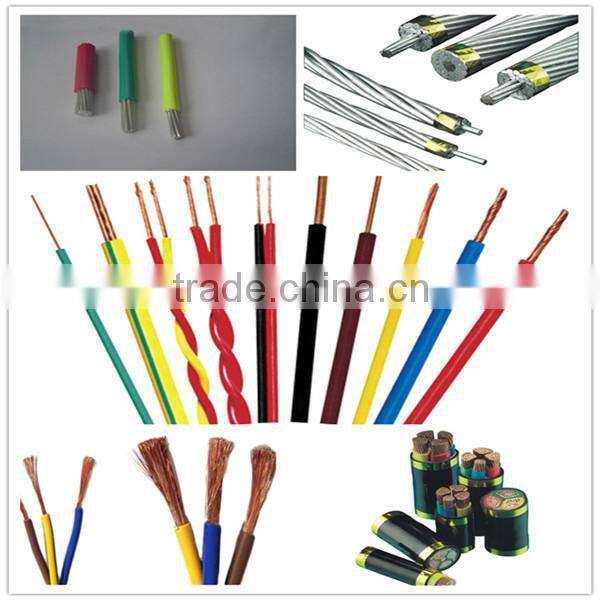

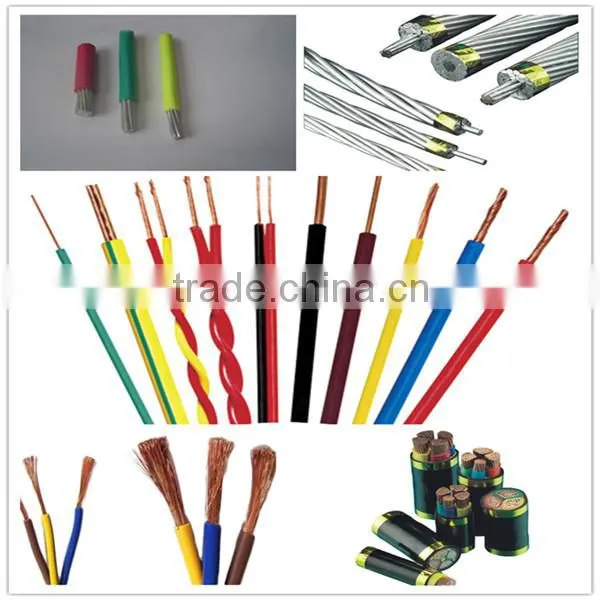

Aluminum wire Picture
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !

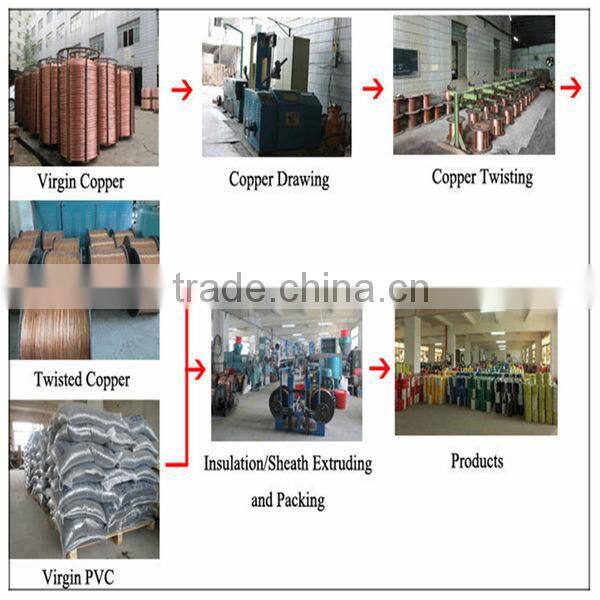

Product process picture

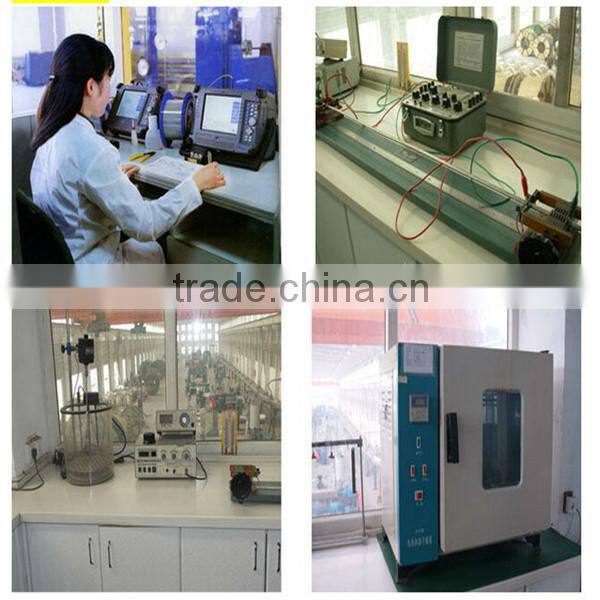

Testing

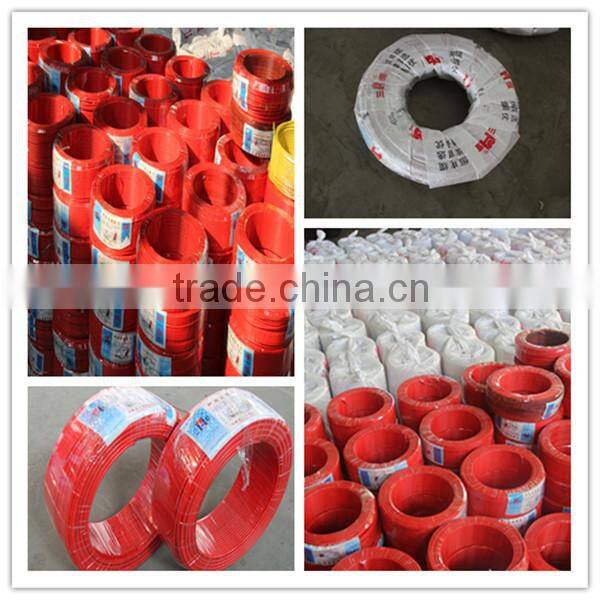

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.

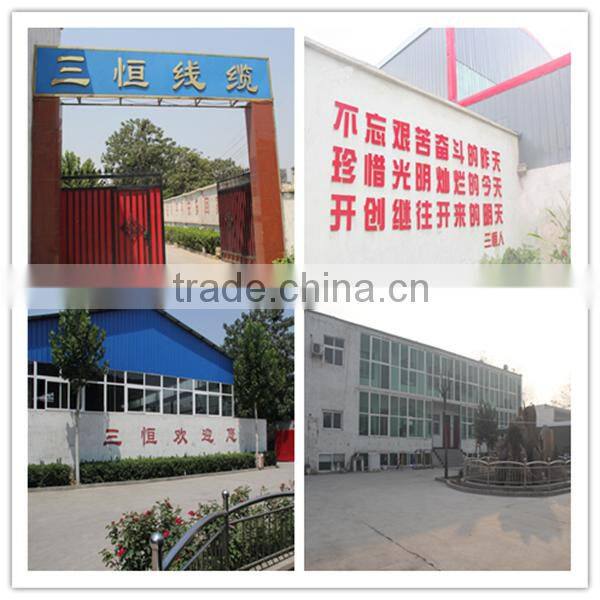

The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, first-class technicians, Elite team, high quality workers.
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Established in the 2000's, Henan San Heng Industrial Co., Ltd. for those years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables (ABC cable), PVC insulated wires ( building cables), control cables, rubber cables, bare conductors ( ACSR, AAC, AAAC, BCC), welding cables, , and other related products.
Our customers
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
1. We are 100% factory with many years history!!!
2.We can make the new products as your own design.
3.Our products are approved by UL, CE,ROHS, CCC, and the CB aproved by VDE about some of
our products is pending.
If you have any problem , please don't hesitate to contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
Contact Us
- Henan Sanheng Industrial Co., Ltd.
- Contact nameSANHENG CABLE
- Phone0086-371-55933698
- AddressJingbeiyi Road Zhengzhou,Henan
-
