Specifications
Buried aluminum Cable-Manufacture more than 20 years
-factory price
-customized production

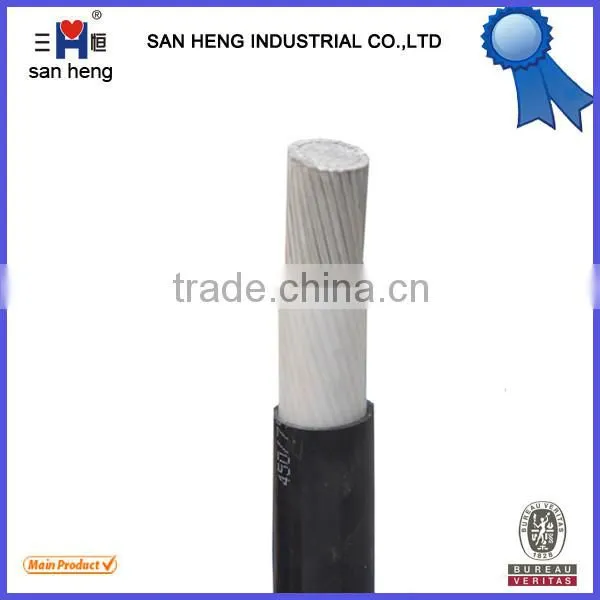

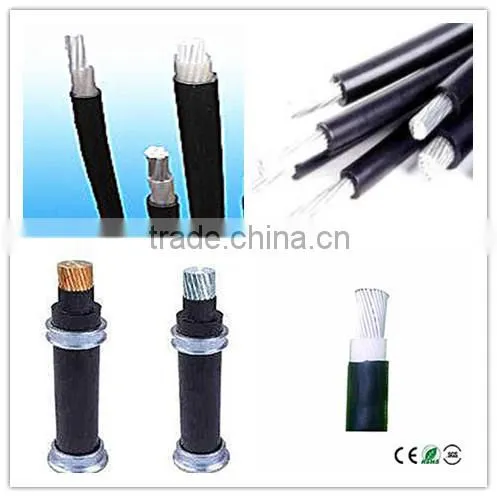

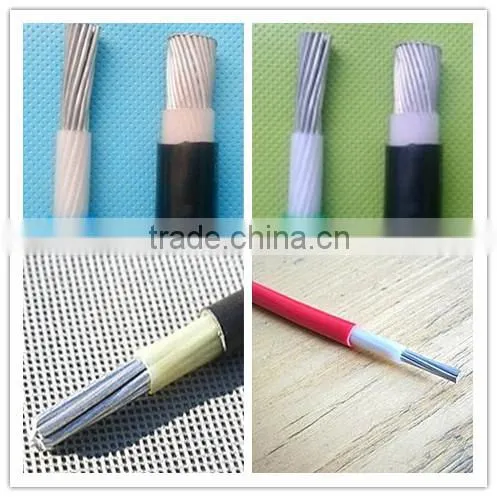

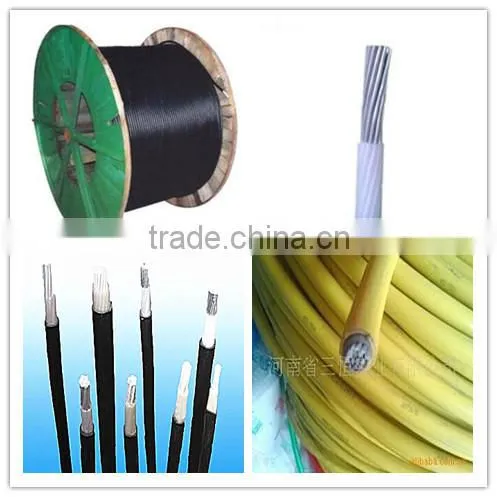

PE insulated pvc sheathed agricultural underground aluminum cable buried cable NLVV, NLYV, NYV
1.Reference standard: JB/T2171-1999
2.Application:suitable for fixed distribution lines and electrical facilities for agricultural using able to be buried underground for A/C rated Voltage 450/750V and below.
3.Product characteristics: Max continuous working temperature of conductor should not exceeds 70 oC. Surrouding temperature of laying should not be less than 0 oC.
4.Specification Size and Technical Data:
Nominal cross section |
0.5-50 mm² |
Core number |
2-10 Core |
The max.outer diameter |
1-36 mm |
5.Model and descriptions:
Model |
Description |
NLYV |
Agricultural buried underground, aluminum core,PE insulated PVC sheathed wire. |
NLYV-H |
Agricultural buried underground, cold resistant, aluminum core, PE insulated , PVC sheathed wire. |
NLYY |
Agricultural buried underground, aluminum core, PE insulated, black PVC sheathed wire. |
NLVV |
Agricultural buried underground, aluminum core, PVC insulated, PVC sheathed wire. |
6.Specification
|
Cross-section (mm²) |
No.dia/core (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Conductor resistance at 20 oC |
4 |
1/2.25 |
0.8 |
1.2 |
7.39 |
6 |
1/2.76 |
0.8 |
1.2 |
4.91 |
10 |
7/1.35 |
1.0 |
1.4 |
3.08 |
16 |
7/1.70 |
1.0 |
1.4 |
1.91 |
25 |
7/2.14 |
1.2 |
1.4 |
1.20 |
35 |
7/2.52 |
1.2 |
1.6 |
0.868 |
50 |
19/1.78 |
1.4 |
1.6 |
0.641 |
70 |
19/2.14 |
1.4 |
1.6 |
0.443 |
95 |
19/2.52 |
1.6 |
2.0 |
0.320 |
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, first-class technicians, Elite team, high quality workers.
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to be Qualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
