Specifications

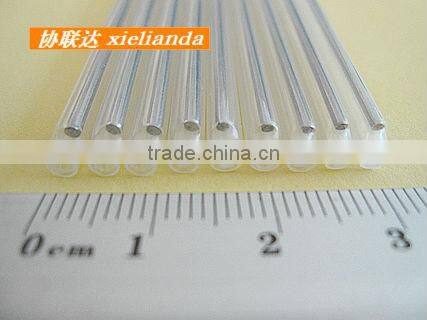

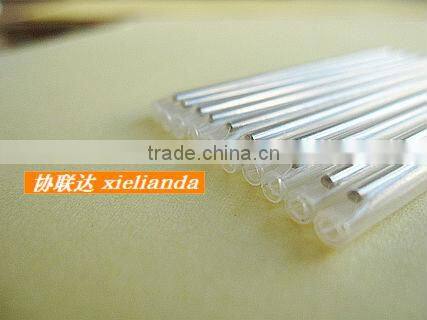

optic fiber heat shrink tube,Fiber optic heat shrink tube for Optic Splice ClosureFeatures:Clear sleeve Easily use
optic fiber heat shrink tube,Fiber optic heat shrink tube for Optic Splice Closure
Fiber Optic Protection Sleeve
Fiber Optic cable protection Sleeve,Shrink tube,Fiber heat shrink tube,Optic Fiber heat shrink tube,Fiber heat shrink tube,heat
Fiber Splice Protection Sleeves:
Fiber optic heat shrink

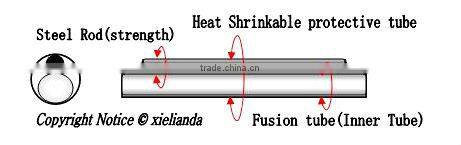

Product Dimension (mm)
| Order Ref.Number. | XLD6025125515 |
| Heat Shrinkable protective tube | 2.5*60 (Diameter*length) |
| Fusion tube(Inner Tube) | 1.5*60 (Diameter*length) |
| Steel Rod(strength) | 1.2*55 (Diameter*length) |
XLD6025125515

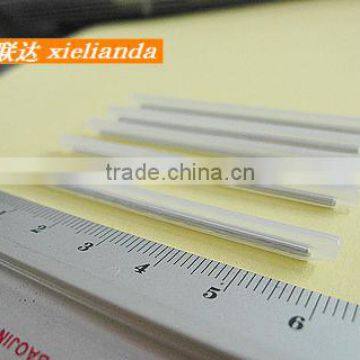

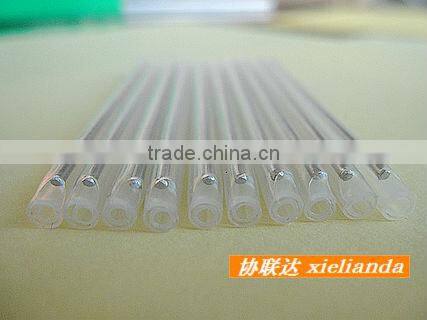

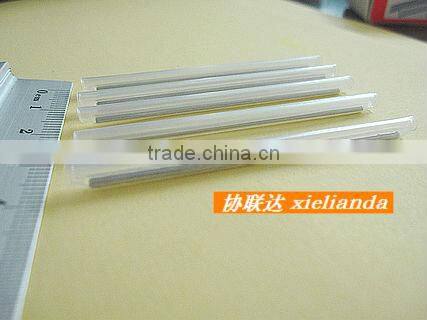

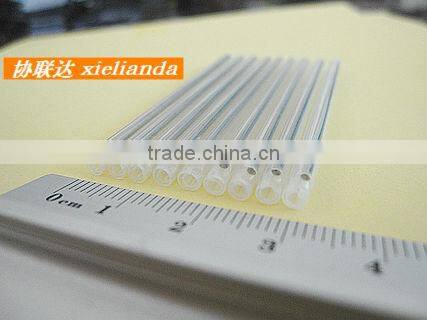

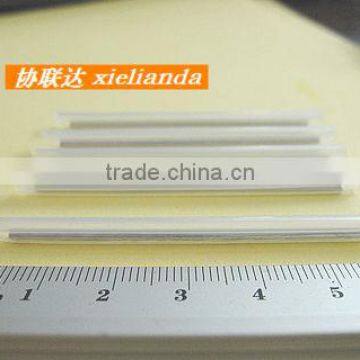

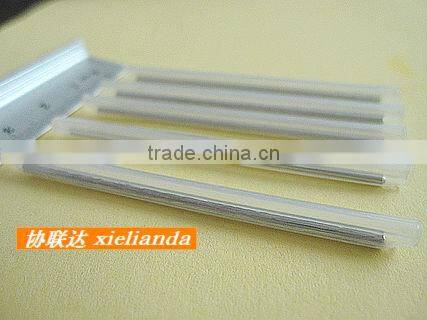

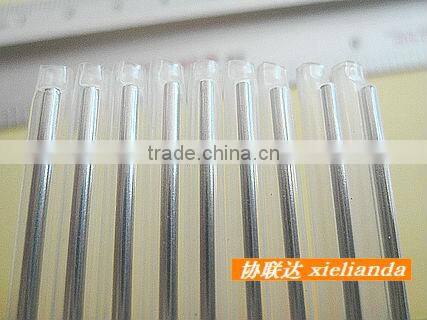

optical fiber protection tube
A specially designed crosslinked Clear Heat Shrinkable tubing,with Clear fusion tubing liner, providing SS304 strength member and protection to fiberoptical splices.
Features:
*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and
humidity from environment
Operating temperature :-45 °C to + 100 °C
Minimun fully recovery temperature : 120 °C
Technical Data
| Properties | Test Method | Typical Data |
| Tensile Strength | ASTM D2671 | ≥18 MPa |
| Ultimate Elongation | ASTM D2671 | 700% |
| Dielectric Strength | IEC 243 | 20 KV/mm |
| Dielectric Constant | IEC 243 | 2.5max |
| Longitudinal Change | ASTM D2671 | 0±5% |
| Density | ISO R1183D | 0.94 g/cm3 |
......
Website:
there is a part of our product, if you search similar products please contact with us, we will reply you timely and friendly, and you also can visit our factory. -- xielianda
