Product Details
Place of Origin: | Guangdong, China | Brand Name: | XIELIANDA | Model Number: | 1.5*60mm |
Product Description
Specifications
xielianda heat shrink sleeve,single 0.9 Fiber optical cabel fusion splice protection sleeve,clear sleeve,ss304 strength PictureXLD fiber optical sleeves

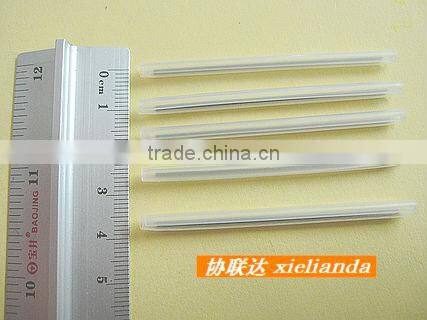

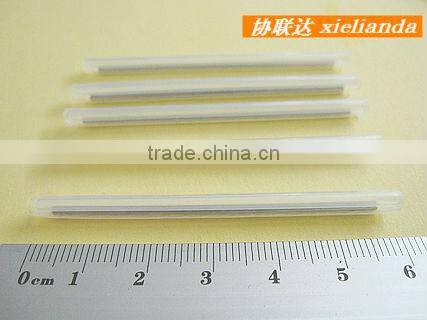

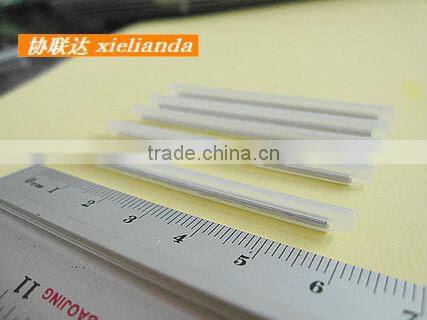

0.9 Fiber Optical Fusion Splice Protection Sleeves
A specially designed crosslinked Clear Heat Shrinkable tubing,with Clear fusion tubing liner, providing SS304 strength member and protection to fiberoptical splices.
Features:
*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and
humidity from environment
Operating temperature :-45 °C to + 100 °C
Minimun fully recovery temperature : 120 °C
Product data:(Size:Diameter*length Unit:mm)
NO. | Order Ref.Number. | Heat Shrinkable protective tube | Fusion tube(Inner Tube) | Steel Rod(strength) |
1 | XLD6030155515 | 3.0*60 | 1.5*60 | 1.5*55 |
2 | XLD5030154515 | 3.0*50 | 1.5*50 | 1.5*45 |
3 | XLD4530154015 | 3.0*45 | 1.5*45 | 1.5*40 |
4 | XLD4030153515 | 3.0*40 | 1.5*40 | 1.5*35 |
5 | XLD6025125515 | 2.5*60 | 1.5*60 | 1.2*55 |
6 | XLD5025124515 | 2.5*50 | 1.5*50 | 1.2*45 |
7 | XLD4525124015 | 2.5*45 | 1.5*45 | 1.2*40 |
8 | XLD4025123515 | 2.5*40 | 1.5*40 | 1.2*35 |
9 | XLD6025105515 | 2.5*60 | 1.5*60 | 1.0*55 |
10 | XLD5025104515 | 2.5*50 | 1.5*50 | 1.0*45 |
11 | XLD4525104015 | 2.5*45 | 1.5*45 | 1.0*40 |
12 | XLD4025103515 | 2.5*40 | 1.5*40 | 1.0*35 |
...
Technical Data
Properties | Test Method | Typical Data |
Tensile Strength | ASTM D2671 | ≥18 MPa |
Ultimate Elongation | ASTM D2671 | 700% |
Dielectric Strength | IEC 243 | 20 KV/mm |
Dielectric Constant | IEC 243 | 2.5max |
Longitudinal Change | ASTM D2671 | 0±5% |
Density | ISO R1183D | 0.94 g/cm3 |
......
there is a part of our product, if you search similar products please contact with us, we will reply you timely and friendly, and you also can visit our factory. -- xielianda
