Optic fiber heat shrink tube,Fiber optic heat shrink tube for Optic Splice Closure

Specifications

optic fiber heat shrink tube,Fiber optic heat shrink tube for Optic Splice Closure
Features:Clear sleeve Easily use

optic fiber heat shrink tube,Fiber optic heat shrink tube for Optic Splice Closure

Fiber Optic Protection Sleeve

Fiber Optic cable protection Sleeve,Shrink tube,Fiber heat shrink tube,Optic Fiber heat shrink tube,Fiber heat shrink tube,heat





 Product Dimension (mm)

Order Ref.Number.	XLD6030155515
Heat Shrinkable protective tube	3.0*60 (Diameter*length)
Fusion tube(Inner Tube)	1.5*60 (Diameter*length)
Steel Rod(strength)	1.5*55 (Diameter*length)





XLD6030155515

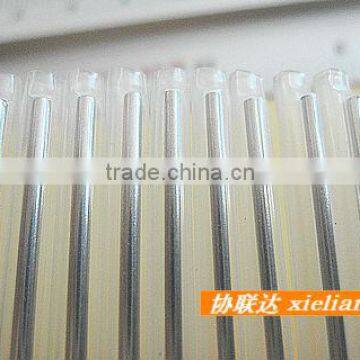

optical fiber protection tube

A specially designed crosslinked Clear Heat Shrinkable tubing,with Clear fusion tubing liner, providing SS304 strength member and protection to fiberoptical  splices.

Features:
*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and
humidity from environment

Operating temperature :-45 °C to + 100  °C

Minimun fully recovery temperature :  120  °C





  Technical Data

Properties	Test Method	Typical Data
Tensile Strength	ASTM D2671	≥18 MPa
Ultimate Elongation	ASTM D2671	700%
Dielectric Strength	IEC 243	20 KV/mm
Dielectric Constant	IEC 243	2.5max
Longitudinal Change	ASTM D2671	0±5%
Density	ISO R1183D	0.94 g/cm3























......







Website:



there is  a  part of our product, if you search similar products please contact with us, we will reply you timely and friendly, and you also can visit our factory.     --  xielianda
