Specifications

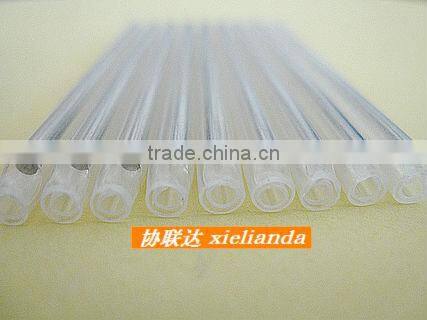

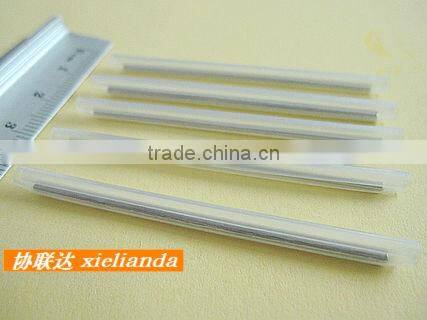

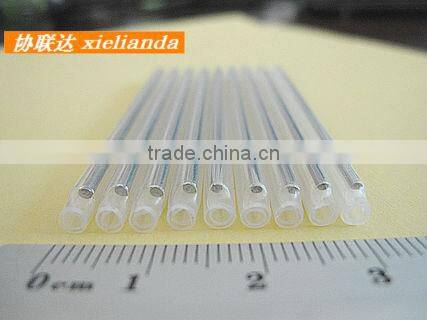

50mm heat shrink sleeve,single 0.9 Fiber optical cabel fusion splice protection sleeve,clear sleeve,ss304 strength PictureXLD5030154515
0.9 Fiber Optical Fusion Splice Protection Sleeves
A specially designed crosslinked Clear Heat Shrinkable tubing,with Clear fusion tubing liner, providing SS304 strength member and protection to fiberoptical splices.
Features:
*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and
humidity from environment
Operating temperature :-45 °C to + 100 °C
Minimun fully recovery temperature : 120 °C
Product Dimension (mm)
| Order Ref.Number. | XLD5030154515 |
| Heat Shrinkable protective tube | 3.0*50 (Diameter*length) |
| Fusion tube(Inner Tube) | 1.5*50 (Diameter*length) |
| Steel Rod(strength) | 1.5*45 (Diameter*length) |
Technical Data
| Properties | Test Method | Typical Data |
| Tensile Strength | ASTM D2671 | ≥18 MPa |
| Ultimate Elongation | ASTM D2671 | 700% |
| Dielectric Strength | IEC 243 | 20 KV/mm |
| Dielectric Constant | IEC 243 | 2.5max |
| Longitudinal Change | ASTM D2671 | 0±5% |
| Density | ISO R1183D | 0.94 g/cm3 |
......
there is a part of our product, if you search similar products please contact with us, we will reply you timely and friendly, and you also can visit our factory. -- xielianda
